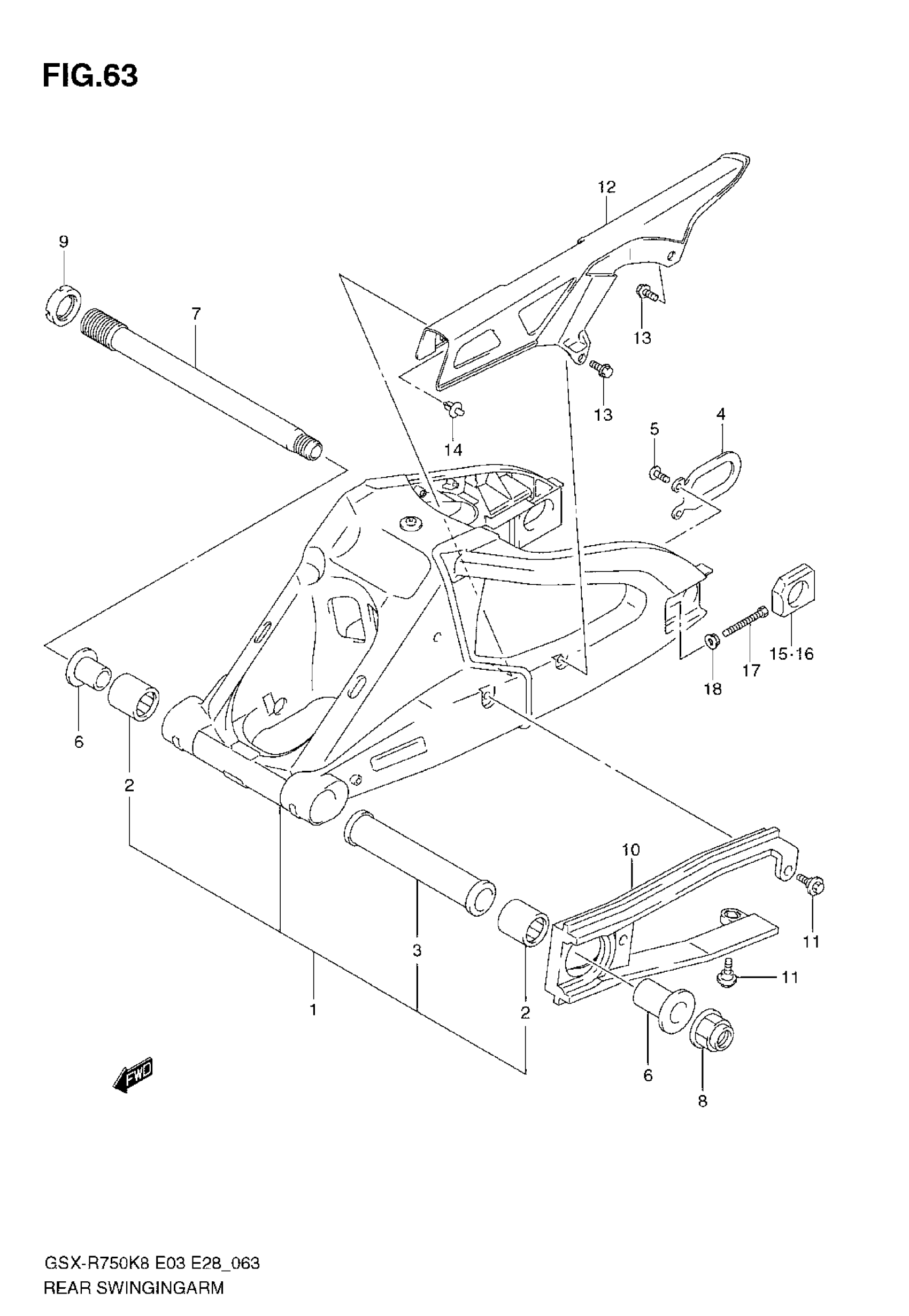

Suzuki GSX-R750 (2008) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (BLACK) | Includes Item(s) 2 - 3

61000-01H10-YAP

Unavailable

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

3

SPACER, CENTER

61281-41G00

$55.68

4

PLATE,RR SWGARM BRKT

61124-41G00

$8.73

5

SCREW

09125-06073

$1.84

6

SPACER, BEARING

61251-41G00

$38.37

7

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

8

NUT

09159-20006

$27.12

9

NUT, PIVOT This part replaces 61214-42E00.

61214-42E10

$42.53

10

BUFFER,CHAIN TO This part replaces 61273-01H00.

61273-01H01

$38.97

11

SCREW

09111-06072

$2.03

12

CASE, CHAIN

61311-01H10

$36.60

13

BOLT

09103-06289

$2.26

14

CLIP (BLACK)

09409-08308-5ES

$1.97

15

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$47.20

16

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$47.20

17

BOLT (8X50)

09100-08287

$3.10

18

NUT

08316-1008A

$2.45
