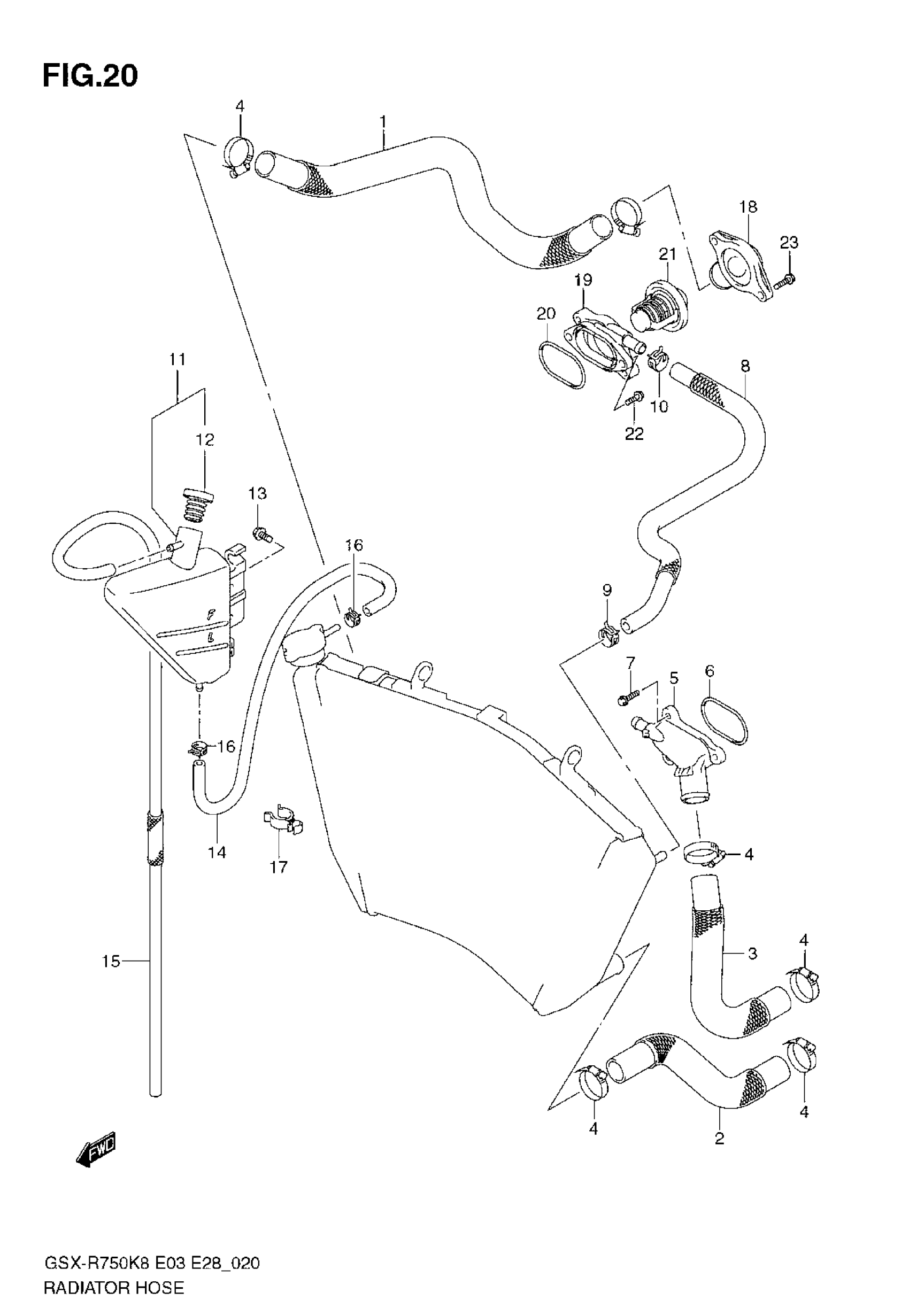

Suzuki GSX-R750 (2008) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-01H00

$53.58

2

HOSE, RADIATOR OUTLET

17852-01H00

$39.62

3

HOSE, CYLINDER INLET

17853-01H00

$34.08

4

CLAMP

09402-38512

$11.72

5

CONNECTOR,CYL WATER INLET

17861-01H00

$67.72

6

O-RING,CYL WATER CONNECTOR

17863-01H00

$7.05

7

BOLT

01547-0620A

$2.03

8

HOSE, WATER BYPASS

17854-01H10

$38.62

9

CLIP This part replaces 09401-12409.

09401-12414

$3.26

10

CLIP

09401-14403

$4.77

11

TANK ASSY, RESERVOIR | Includes Item(s) 12

17910-37H00

$70.42

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

13

BOLT

09111-06085

$4.54

14

HOSE

17981-18G00

$13.28

15

HOSE,RESERVOIR TANK OVFL

17982-37H00

$17.77

16

CLIP

09401-08411

$1.78

17

CLAMP

09404-06429

$1.83

18

COVER,THERMOSTAT

17661-37H00

$36.33

19

CONNECTOR,THERMOSTAT

17662-01H00

$93.63

20

O-RING,THERMOSTAT CONNECTOR

17663-01H00

$7.05

21

THERMOSTAT,WTR (82<-C)

17670-76G00

$36.79

22

BOLT

01547-0620A

$2.03

23

BOLT

01550-0625A

$1.97
