Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 16 This part replaces 11401-02890.

11401-02892

$188.74

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-02H00

$73.84

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-01H00

$42.57

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-01H00

$7.89

5

WASHER, HEAD COVER | NOT SHOWN

11191-27E00

$3.72

6

GASKET, CLUTCH COVER | NOT SHOWN

11482-01H00

$21.00

7

GASKET, GENERATOR COVER | NOT SHOWN

11483-01H00

$10.80

8

GASKET, BREATHER COVER | NOT SHOWN

11484-01H00

$5.85

9

GASKET | NOT SHOWN This part replaces 11489-01H00.

11489-01H01

$14.75

10

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-02H00

$6.18

11

GASKET | NOT SHOWN This part replaces 14181-46E00.

14181-46E10

$6.91

12

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

$1.76

13

O RING, OIL FILLER PLUG | NOT SHOWN

09280-17003

$1.70

14

.O-RING (D:2.4,ID:24.7) | NOT SHOWN

09280-25004

$2.09

15

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.31

16

O RING, STARTER GEAR COVER | NOT SHOWN

09280-71008

$6.40

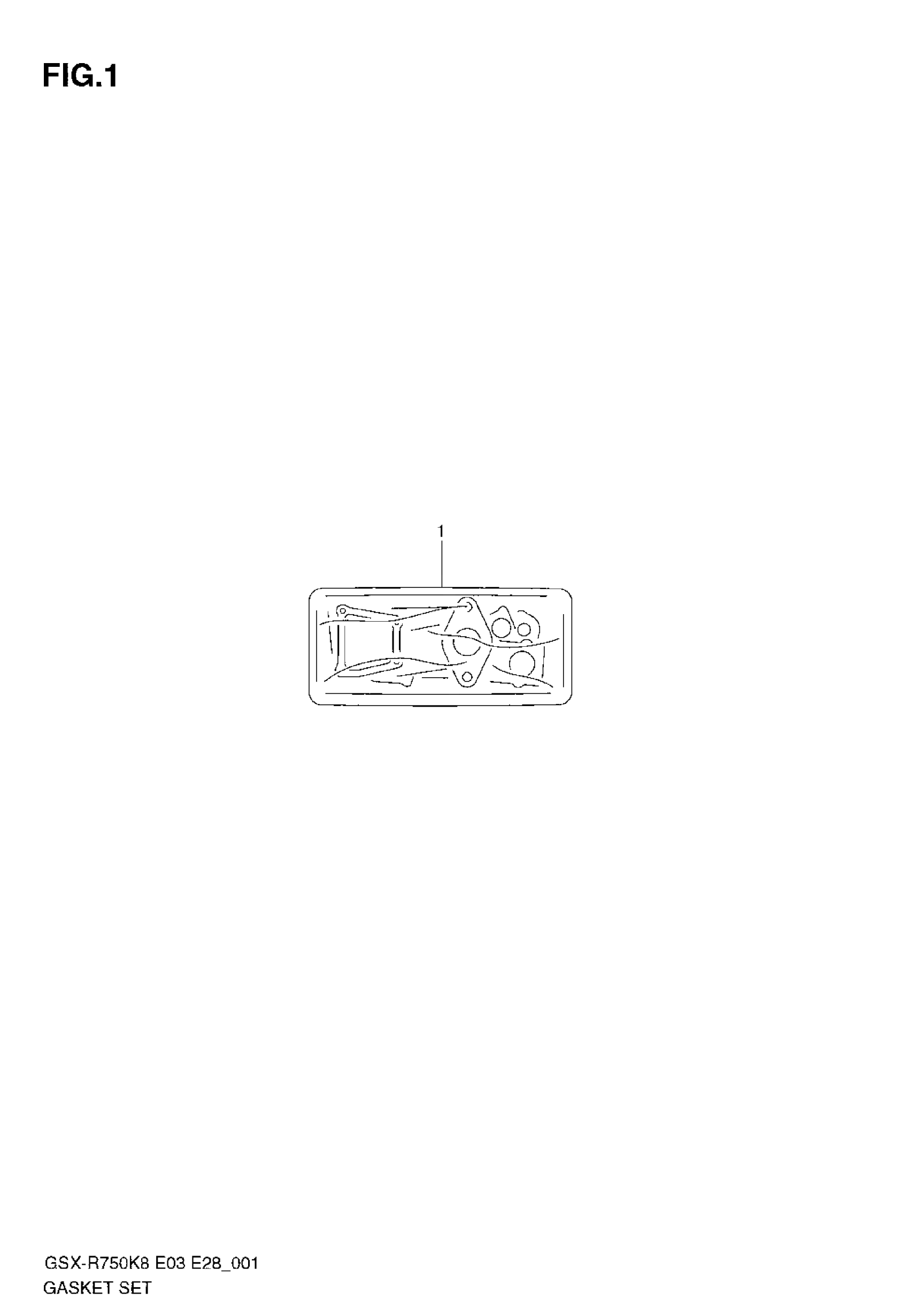

Suzuki GSX-R750 (2008) GASKET SET Diagram
