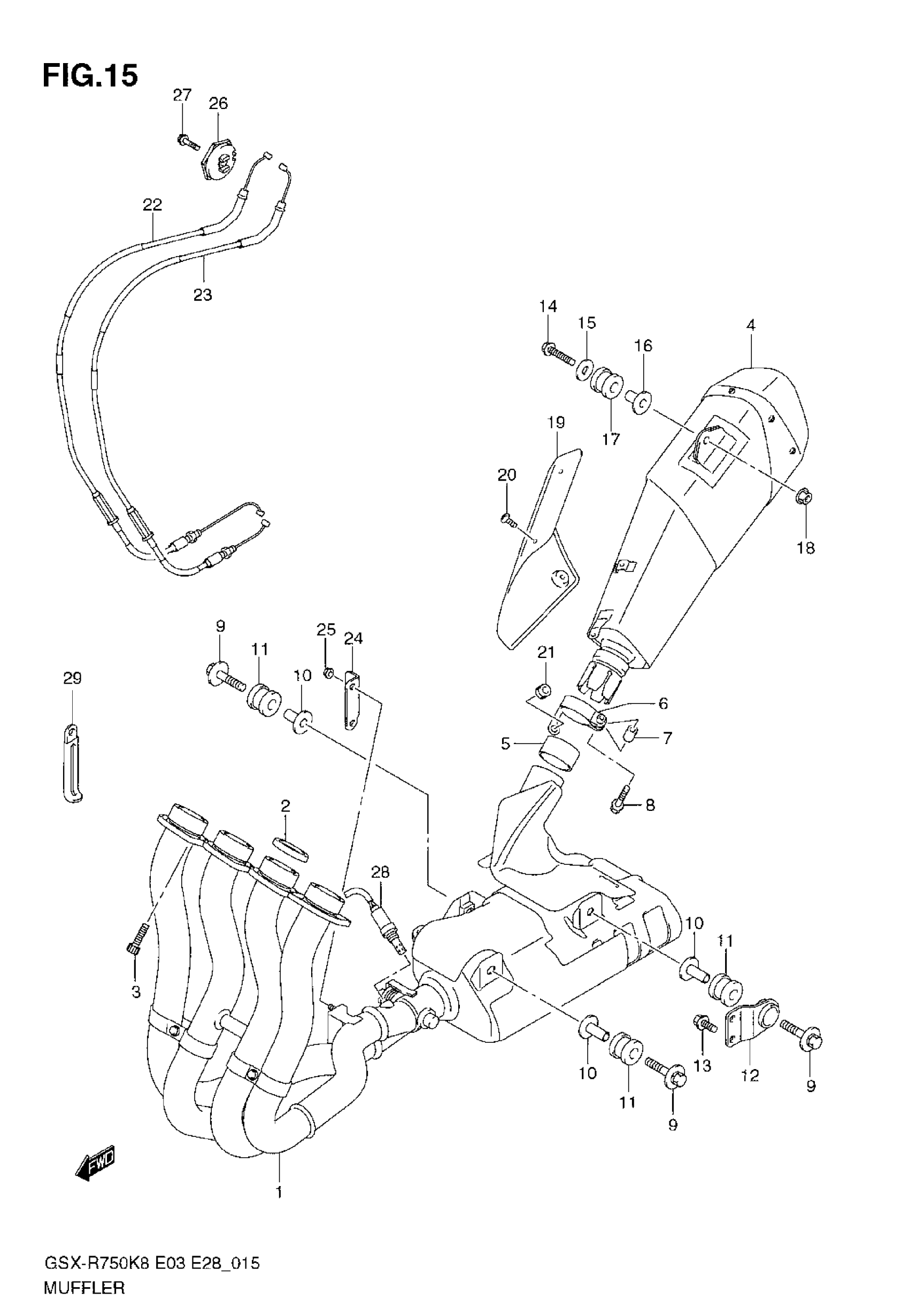

Suzuki GSX-R750 (2008) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-38H00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$6.61

3

BOLT

07130-0825A

$2.80

4

BODY, MUFFLER

14310-38H00-H01

Unavailable

5

CONNECTOR

14771-42F10

$21.17

6

CLAMP

14459-42F60

$28.25

7

SPACER

14458-06H00

$7.95

8

BOLT

09103-08392

$3.41

9

BOLT

09118-08152-A05

$4.73

10

SPACER, MUFFLER SUPPORT This part replaces 09180-08152-A05.

09180-08152

$5.26

11

CUSHION

09320-12077

$10.78

12

BRACKET

14770-01H00

$28.58

13

BOLT

07120-0816A

$2.80

14

BOLT

09103-08358

$3.08

15

WASHER

09160-08142

$2.80

16

SPACER

09180-08152

$5.26

17

CUSHION

09320-12048

$4.62

18

NUT

08361-2508A

$1.97

19

COVER, MUFFLER

14780-37H00

Unavailable

20

SCREW

09139-06078

$2.77

21

CUSHION (8.4X18X6)

09320-08066

$7.44

22

CABLE, EXH VALVE NO.1

11276-37H00

$88.97

23

CABLE, EXH VALVE NO.2

11277-37H00

$88.97

24

BRACKET

14250-01H00

$12.83

25

NUT

08316-1006A

$2.19

26

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$32.50

27

BOLT

07120-0516A

$1.72

28

SENSOR, OXYGEN This part replaces 18213-18H00.

18213-18H10

$432.40

29

CLAMP

09404-06429

$1.82
