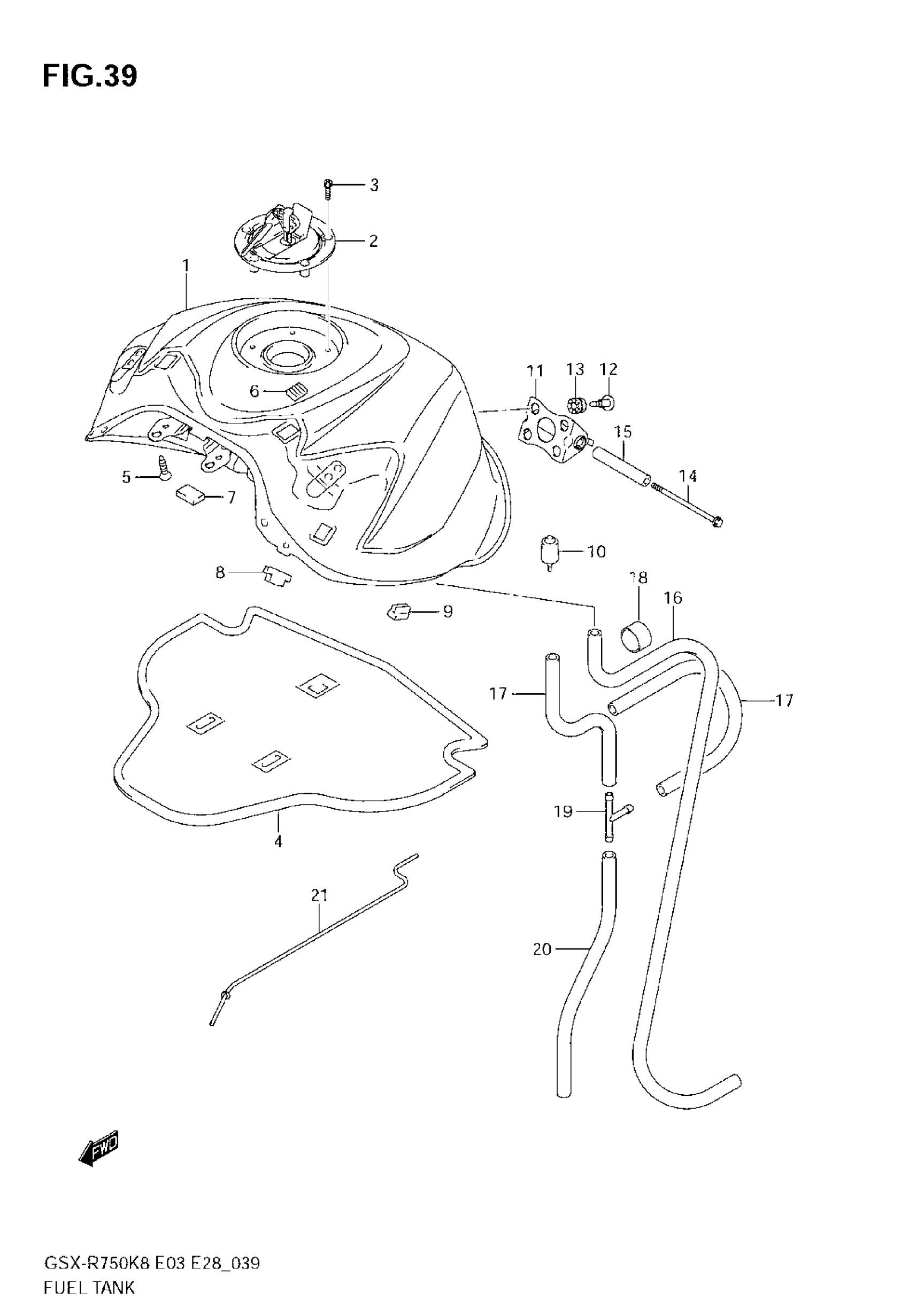

Suzuki GSX-R750 (2008) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL( | E3,E28 FOR CRU,ECE This part replaces 44100-37H00-019.

44100-37H01-019

$1,404.12

1

TANK ASSY,FUEL( | E3,E28 FOR CWH This part replaces 44100-37H00-YKY.

44100-37H01-YKY

$1,064.63

1

TANK ASSY,FUEL( | E33 FOR CRU,ECE This part replaces 44100-37H20-019.

44100-37H21-019

Unavailable

1

TANK ASSY,FUEL( | E33 FOR CWH This part replaces 44100-37H20-YKY.

44100-37H21-YKY

Unavailable

2

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

2

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

3

SCREW

09106-05017

$2.83

4

SHIELD, FUEL TANK HEAT

44191-37H00

Unavailable

5

SCREW, BRACKET

09139-06172

$3.04

6

FASTENER, COVER

44572-44G00

$10.18

7

CUSHION, BRACKET

09329-18001

$1.91

8

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

9

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

10

CUSHION,FUEL TANK RR

44542-41G00

$7.69

11

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

12

SCREW, BRACKET

44543-37H00

$7.05

13

CUSHION

09320-08071

$3.25

14

BOLT, JOINT

09106-06119

$5.76

15

SPACER, JOINT

44561-18G00

$16.96

16

HOSE,TANK WATER This part replaces 44423-41G00.

44423-41G01

$16.82

17

HOSE,VACUUM This part replaces 44424-38G00.

44425-09E01

$11.28

18

HOSE, JOINT | L=600!10

09352-12163-600

Unavailable

19

.JOINT,3 WAY

09367-06002

$2.50

20

HOSE | L=2000!690 This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

21

STAY, FUEL TANK

44574-35F00

$15.16
