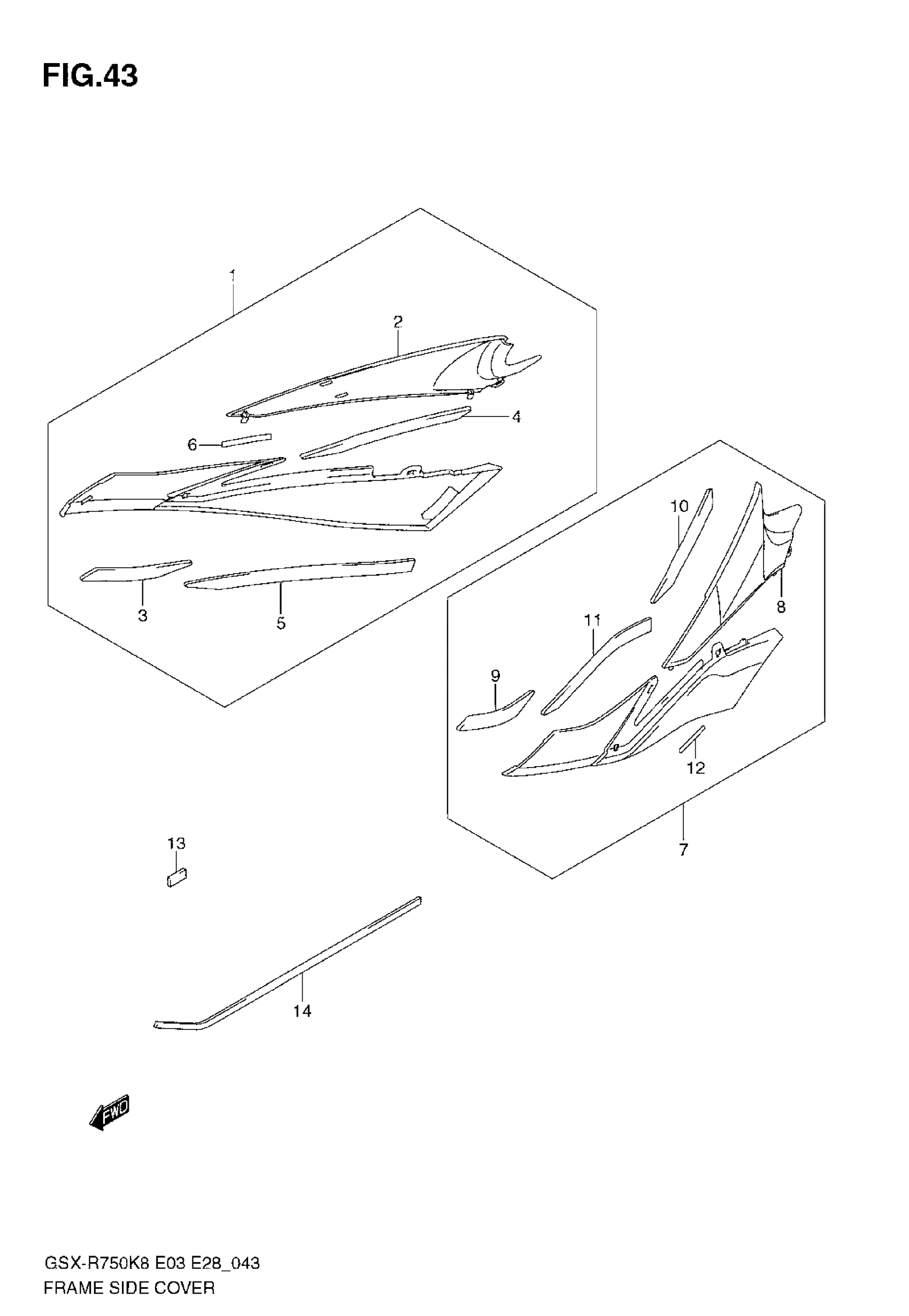

Suzuki GSX-R750 (2008) FRAME SIDE COVER Diagram

#

Description
Price

1

COVER, FRAME SIDE RH (BLACK) | FOR CRU

47410-37H00-019

$186.07

1

COVER, FRAME SIDE RH (WHITE) | FOR CWH

47410-37H00-YBD

Unavailable

1

COVER, FRAME SIDE RH (GRAY) | FOR ECE; Includes Item(s) 2 - 6

47410-37H00-YLF

Unavailable

2

COVER, UPPER RH (BLACK)

47411-37H00-019

Unavailable

2

COVER, UPPER RH (WHITE)

47411-37H00-YBD

Unavailable

2

COVER, UPPER RH (GRAY)

47411-37H00-YLF

Unavailable

3

CUSHION, FRONT RH

47412-37H00

$19.15

4

CUSHION, UPPER RH

47413-37H00

$16.87

5

CUSHION, LOWER RH

47415-37H00

$24.13

6

CUSHION, CENTER

47416-37H00

$8.60

7

COVER, FRAME SIDE LH (BLACK) | FOR CRU

47510-37H00-019

$186.07

7

COVER, FRAME SIDE LH (WHITE) | FOR CWH

47510-37H00-YBD

Unavailable

7

COVER, FRAME SIDE LH (GRAY) | FOR ECE; Includes Item(s) 8 - 12

47510-37H00-YLF

Unavailable

8

COVER, UPPER LH (BLACK)

47511-37H00-019

Unavailable

8

COVER, UPPER LH (WHITE)

47511-37H00-YBD

Unavailable

8

COVER, UPPER LH (GRAY)

47511-37H00-YLF

Unavailable

9

CUSHION, FRONT LH

47512-37H00

$19.15

10

CUSHION, UPPER LH

47513-37H00

$16.87

11

CUSHION, LOWER LH

47515-37H00

$24.13

12

CUSHION, CENTER

47416-37H00

$8.60

13

CUSHION (10X30X2)

44894-24A00

$1.72

14

CUSHION, UPPER

47412-21H00

$5.67
