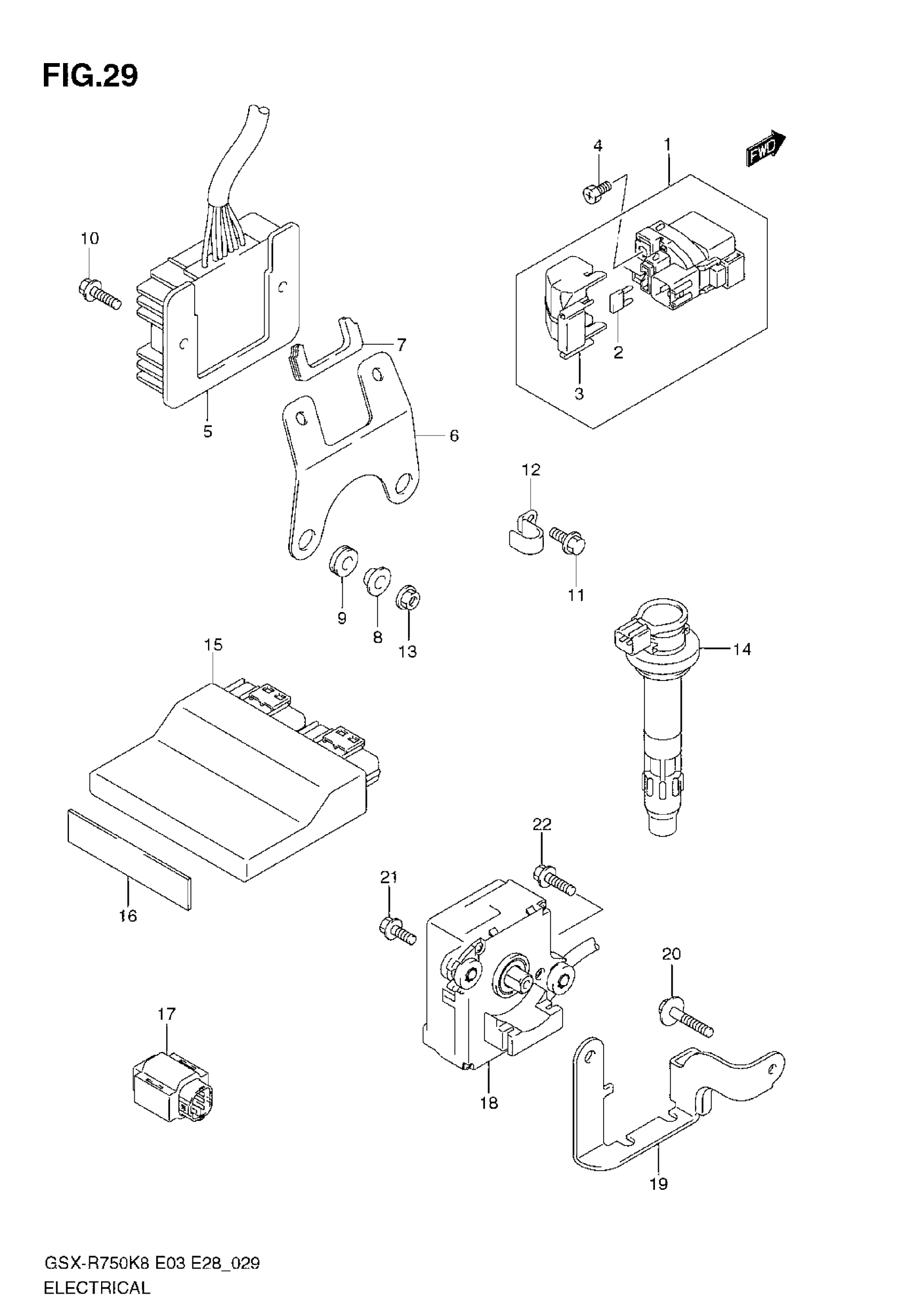

Suzuki GSX-R750 (2008) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-41G00.

31800-41G10

$92.59

2

FUSE (30A)

09481-30501

$2.32

3

COVER, STARTER

31861-38G00

$4.88

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-18H00.

32800-47H00

$263.17

6

BRACKET, RECT FTG

32831-37H00

$12.40

7

MOLD, RECT BRKT

32835-37H00

$7.37

8

SPACER

09180-06325

$3.79

9

CUSHION (8.4X18X6)

09320-08066

$8.24

10

BOLT, RECTIFIER

01550-0625A

$1.97

11

BOLT, BRKT

01550-0616A

$1.97

12

CLAMP

09403-11315-A05

Unavailable

13

NUT, RECTIFIER

08316-1006A

$2.19

14

COIL ASSY,IGNITION

33410-38H00

$174.35

15

CONTROL UNIT, FI | E3,E28

32920-38H10

Unavailable

15

CONTROL UNIT, FI | E33

32920-38H20

Unavailable

16

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

17

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

18

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

$584.90

19

HOLDER, ACTR

33971-37H00

Unavailable

20

BOLT, ACTR (6X30)

09116-06103

$3.15

21

BOLT, ACTR HOLDER

01550-0616A

$1.97

22

BOLT, ACTR (6X25)

09116-06202

$3.49
