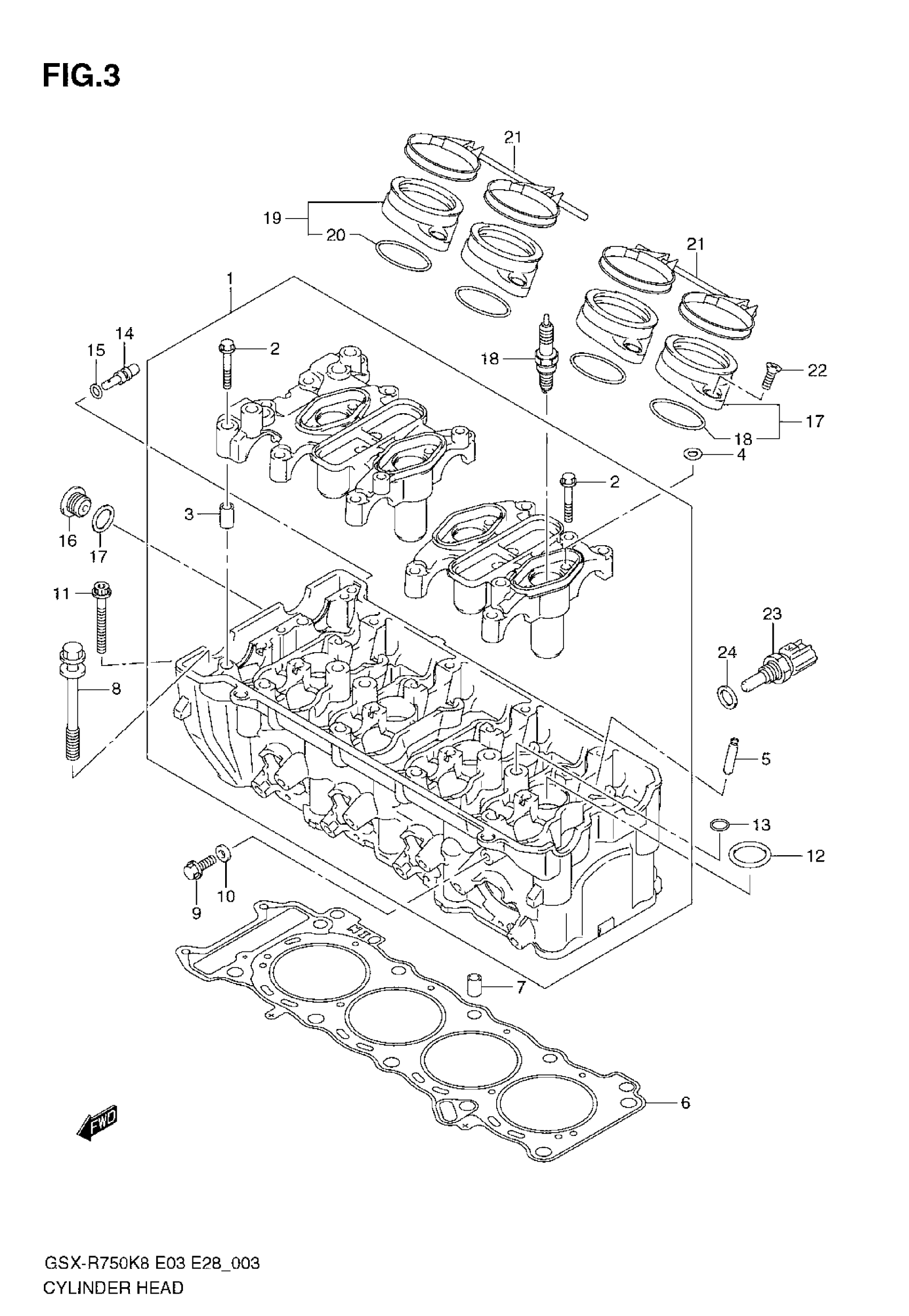

Suzuki GSX-R750 (2008) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER | Includes Item(s) 2 - 3

11100-38H00

$2,392.67

2

BOLT

09103-06266

$2.12

3

PIN

09206-08007

$2.60

4

WASHER

09168-06018

$1.77

5

GUIDE, VALVE (OS 0.5) | OPT

11115-29G70

$32.87

6

GASKET, CYLINDER HEAD

11141-02H00

$77.21

7

PIN

04211-11169

$1.78

8

BOLT (10X95)

11117-29G00

$8.93

9

BOLT, OIL GALLERY

09103-06222

$2.26

10

GASKET

09168-06023

$2.35

11

BOLT, CYLINDER HEAD

07120-0650A

$3.16

12

O-RING

11179-81402

$4.21

13

O RING

09280-11001

$1.98

14

JET, OIL

09493-80005

$16.25

15

O RING

09280-04004

$1.91

16

PLUG

09248-16012

$4.64

17

GASKET

09168-16009

$2.50

18

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$12.14

18

SPARK PLUG (DENSO,IU27D)

09482-00557

$16.60

18

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$10.85

18

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.85

18

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.96

18

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$20.10

19

PIPE ASSY,INTAK | Includes Item(s) 20 This part replaces 13101-38H00.

13101-38H01

$55.85

20

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

21

CLAMP, INTAKE PIPE

13826-02H12

$26.22

22

SCREW

09120-06007

$3.16

23

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

24

GASKET

09168-12017

$1.95
