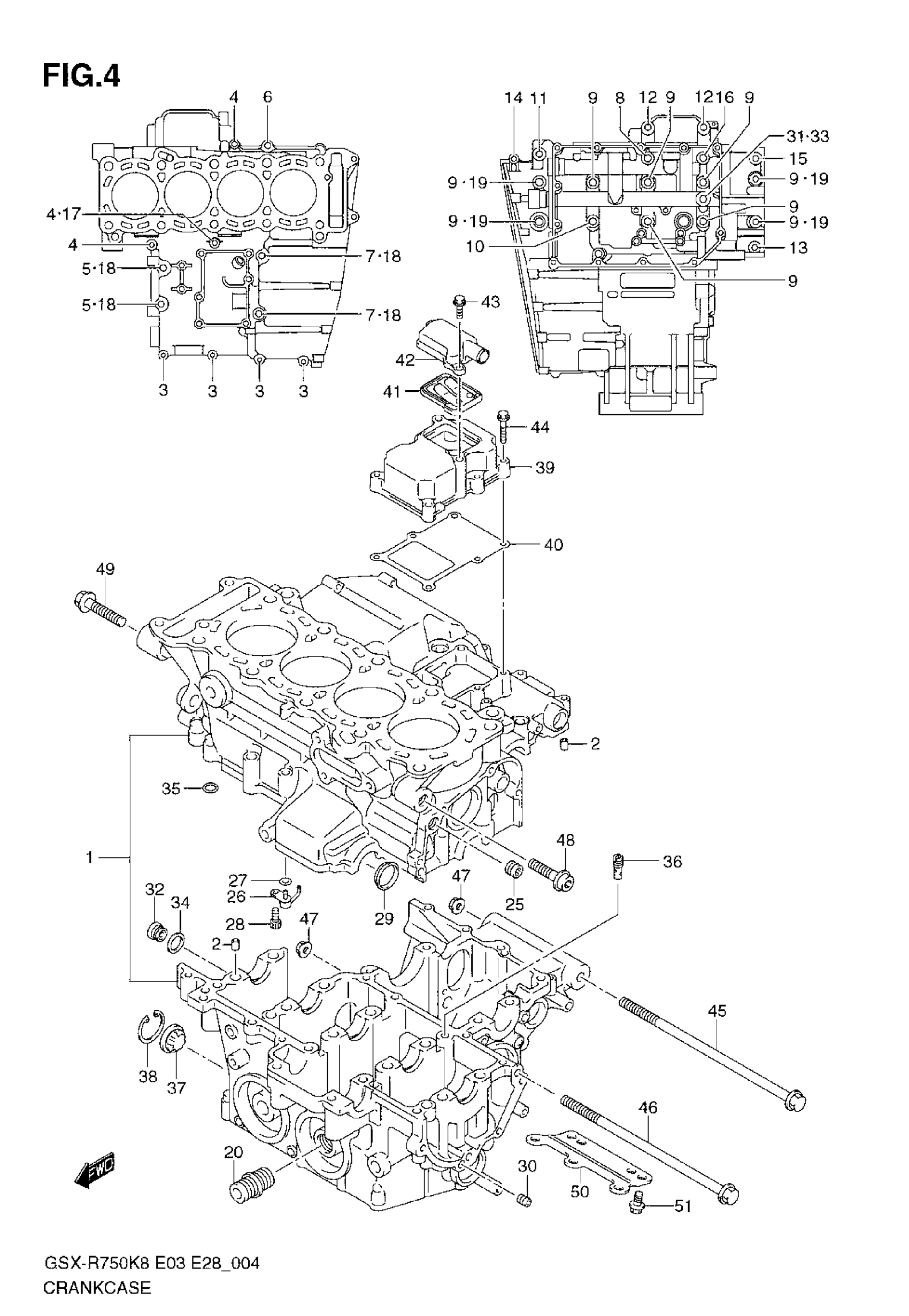

Suzuki GSX-R750 (2008) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 24

11301-38860

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT

01547-0635A

$2.30

4

BOLT

01547-0665A

$2.32

5

BOLT

01550-0850A

$3.67

6

BOLT

01550-0860A

$4.17

7

BOLT

01550-0875A

$3.55

8

BOLT (8X105)

09103-08097

$3.44

9

BOLT (9X95)

09103-09012

$8.76

10

BOLT (9X80)

09103-09014

$10.10

11

BOLT (8X55)

09106-08184

$4.68

12

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

13

BOLT

01547-0630A

$2.32

14

BOLT

01547-0645A

$2.42

15

BOLT

01550-0865A

$3.51

16

BOLT

01550-0885A

$4.17

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

GASKET (8.2X14X1)

09168-08016

$1.65

19

.GASKET (10.2X20X2.3)

09168-10031

$2.03

20

UNION,OIL STAND

16591-06B01

$7.05

21

O RING, DRIVE SHAFT BEARING COVER (D:1.9,ID:99.5) | NOT SHOWN

09280-00043

$36.65

22

BOLT, DRIVE SHAFT BEARING COVER (6X20) | NOT SHOWN

09139-06151

$4.00

23

BEARING, THRUST RH (GREEN) | SEE ILLUS FIG.7

12228-17E00-0D0

$9.50

24

BEARING, THRUST LH (RED) | SEE ILLUS FIG.7

12228-17E00-0A0

$11.38

24

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

24

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

24

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

24

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

24

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

25

JET,OIL GALLERY (3.6)

11329-02F00

$6.70

26

JET,PISTON COOLING

11390-35F00

$24.30

27

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

28

BOLT, PISTON COOLING

09106-06075

$2.48

29

PLUG, BALANCER SHAFT HOLE

09241-26004

$8.24

30

PLUG This part replaces 09246-05006.

09246-04009

$4.25

31

PLUG, OIL GALLERY

09248-12004

$7.95

32

PLUG, OIL GALLERY

09248-16013

$4.82

33

GASKET, OIL GALLERY

09168-12002

$1.59

34

GASKET, OIL GALLERY

09168-16002

$1.91

35

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

36

JET

09493-28012

$16.87

37

LENS, OIL LEVEL

11971-33210

$18.20

38

.CIRCLIP

08331-4130A

$2.70

39

COVER,BREATHER

11371-01H00

Unavailable

40

GASKET, BREATHER COVER

11484-01H00

$5.95

41

VALVE ASSY,BREATHER REED This part replaces 13150-01H00.

13150-01H01

$69.90

42

COVER, VALVE

11372-01H00

Unavailable

43

BOLT

01547-0616A

$2.03

44

BOLT

01547-0630A

$2.32

45

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

46

BOLT (10X205)

09103-10145

$17.09

47

NUT

09159-10115

$3.55

48

BOLT, ENG MTG (10X45)

09106-10069

$4.24

49

BOLT, ENG MTG (10X55)

09106-10070

$4.24

50

PLATE,CRANKCASE LWR

11322-01H00

$12.82

51

BOLT

09103-06188

$2.90
