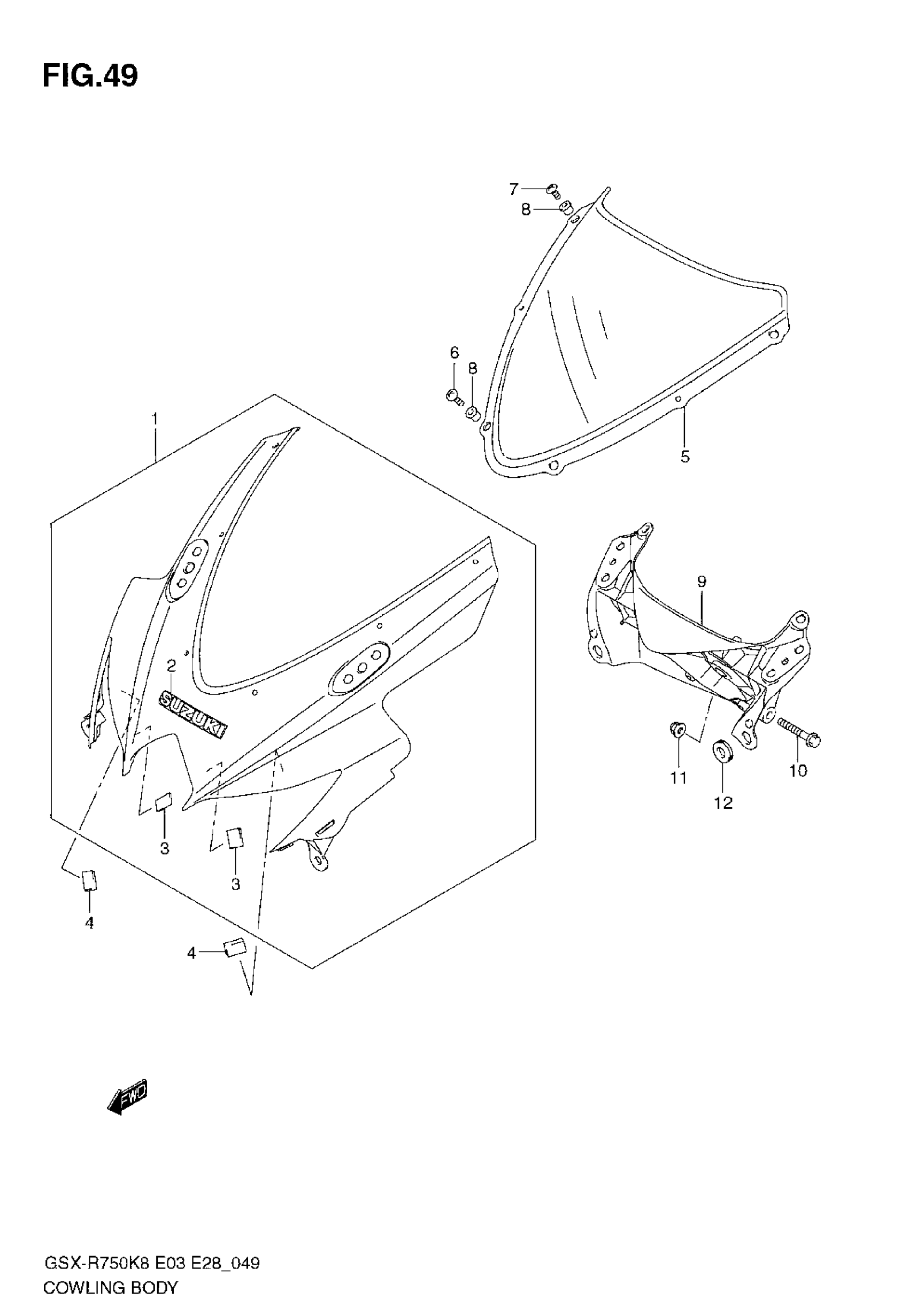

Suzuki GSX-R750 (2008) COWLING BODY Diagram

#

Description
Price

1

BODY ASSY,COWLI | FOR CRU This part replaces 94401-37H10-019.

94401-37H11-019

$291.17

1

BODY ASSY,COWLI | FOR CWH This part replaces 94401-37H10-YKY.

94401-37H11-YKY

$400.15

1

BODY ASSY,COWLI | FOR ECE; Includes Item(s) 2 - 3 This part replaces 94401-37H10-1PX.

94401-37H11-1PX

$294.88

2

EMBLEM,"SUZUKI" | FOR 019 This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$9.92

2

EMBLEM,"SUZUKI" | FOR YKY This part replaces 68641-19F00-YBD.

68641-19F01-YBD

$12.82

2

EMBLEM,"SUZUKI" | FOR 1PX This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

3

FASTENER

44572-37H00

$9.83

4

CUSHION

92146-37H00

$5.98

5

WINDSCREEN

94611-37H00

$170.83

6

SCREW, FRONT

09125-05133

$2.19

7

SCREW, UPPER

09125-05134

$2.22

8

NUT

09159-05019

$7.14

9

BRACE,COWLING This part replaces 94511-37H00.

94511-37H01

$285.52

10

BOLT

01550-0845A

$3.14

11

NUT

08313-2008A

$2.50

12

CUSHION

09320-08028

$3.04
