Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:74

21200-02840

$509.50

2

SPACER, OIL PUMP DRIVE

21253-01H10

$41.45

3

WASHER (25X54X2.4)

09160-25073

$14.50

4

BEARING (35X40X26.8)

09263-35015

$27.95

5

BEARING (35X40X12.8)

09263-35045

$22.75

6

HUB,CLUTCH SLEEVE

21410-41G30

$236.72

7

BOLT, CLUTCH SPRING

21482-41G00

$2.94

8

SPRING, CLUTCH

21413-01H00

$7.13

9

PLATE, CLUTCH DRIVE NO.1

21441-36F30

$28.07

10

PLATE, CLUTCH DRIVE NO.2

21441-36F10

$21.05

11

PLATE, CLUTCH DRIVE NO.3

21442-41G00

$28.07

12

PLATE, CLUTCH DRIVEN NO.1 | T:2.0

21451-41G10

$13.63

13

.PLATE,CLUTCH DRIVEN (T:1.6) | T:1.6

21451-41G30

$13.63

14

DISC,CLUTCH PRESSURE

21462-41G00

$78.55

15

.SEAT,WAVE WASHER

21471-41G00

$14.20

16

WASHER, CLUTCH PLATE WAVE

21472-41G10

$20.53

17

CAM,CLUTCH DRIVE

21611-41G30

$141.12

18

CAM,CLUTCH DRIVEN

21612-41G10

$119.18

19

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

20

WASHER,CAM REACTION SEAT

21624-41G00

$15.53

21

LIFTER, CLUTCH PRESSURE DISC

21622-41G00

$10.50

22

NUT, CL PRESS DISC

21623-41G00

$2.61

23

WASHER (8X14X1.0)

09181-08139

$1.91

24

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

25

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$11.61

26

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.76

27

WASHER, SLEEVE HUB NUT | 25X41X2.50

09160-25077

$10.48

28

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

29

ROD, CLUTCH PUSH LH

23111-35F00

$13.30

30

PIECE, CLUTCH PUSH

23121-41G00

$49.02

31

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$56.90

32

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

33

SPRING, CLUTCH RELEASE

23125-41G00

$3.25

34

ARM, CLUTCH RELEASE This part replaces 23271-41G20.

23271-41G21

$45.38

35

BOLT, CL RELEASE

09103-06223

$2.47

36

SCREW, CLUTCH PUSH

09134-06015

$6.88

37

WASHER, CLUTCH PUSH | 10.5X24X1

09160-10020

$2.05

38

WASHER, CLUTCH PUSH | 15.5X28X1.0

09160-15045

$3.89

39

BEARING, CL CAM SHAFT | 10X14X10

09263-10014

$13.52

40

BEARING, CL RLSE CAM | 12X18X12

09263-12027

$7.31

41

BEARING, CL PUSH PIECE | 15X28X2

09263-15003

$8.29

42

SEAL, CL RLSE CAM SHAFT | 10X20X6

09282-10012

$7.98

43

SEAL, CLUTCH PUSH ROD | 5X34X10

09285-06011

$8.24

44

SEAL, CLUTCH PUSH ROD | 10X17X5

09285-10004

$3.37

45

NUT, CLUTCH RELEASE

08310-0006A

$1.84

46

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$7.32

47

SCREW, PUSH ROD

09139-06153

$2.62

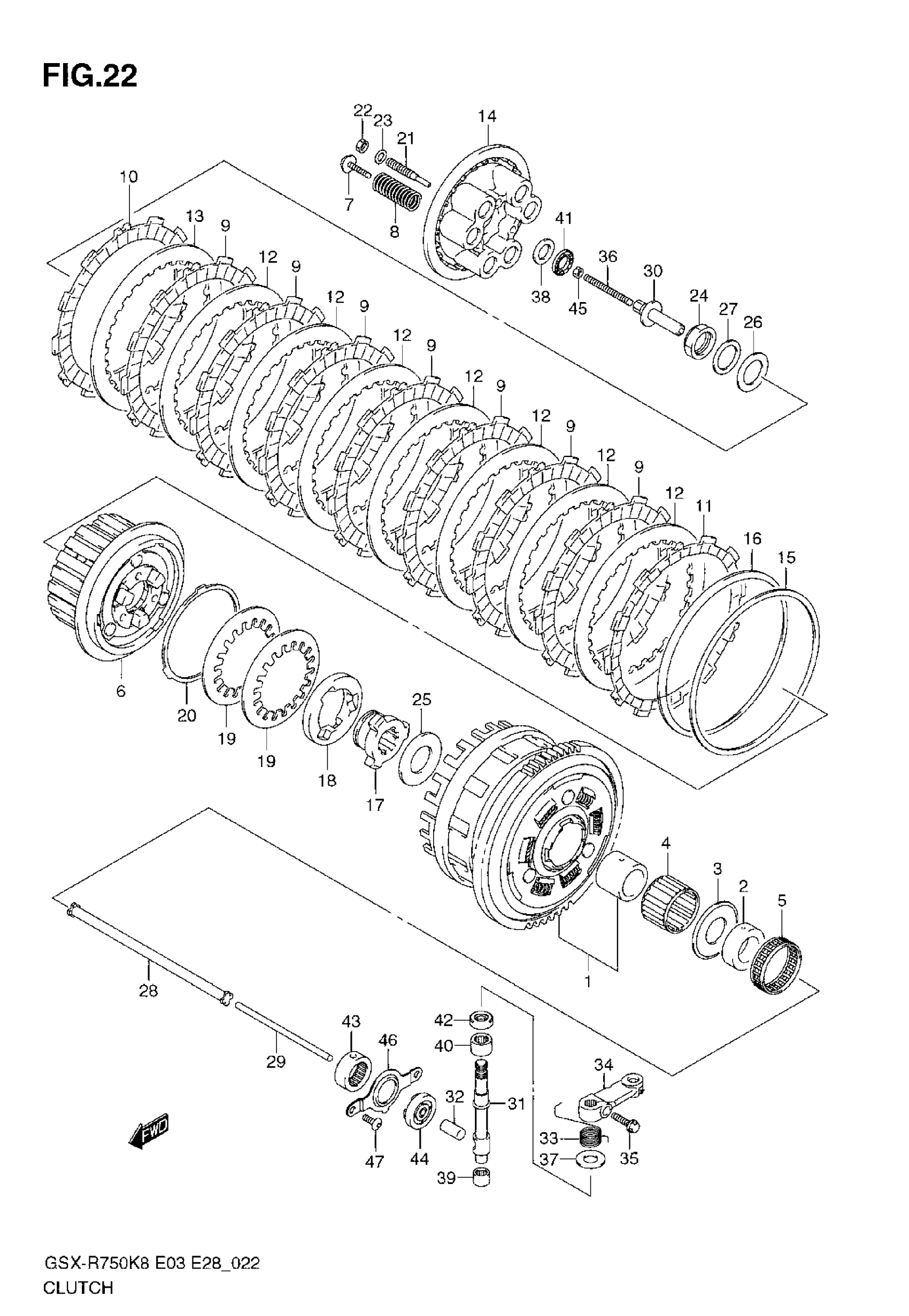

Suzuki GSX-R750 (2008) CLUTCH Diagram
