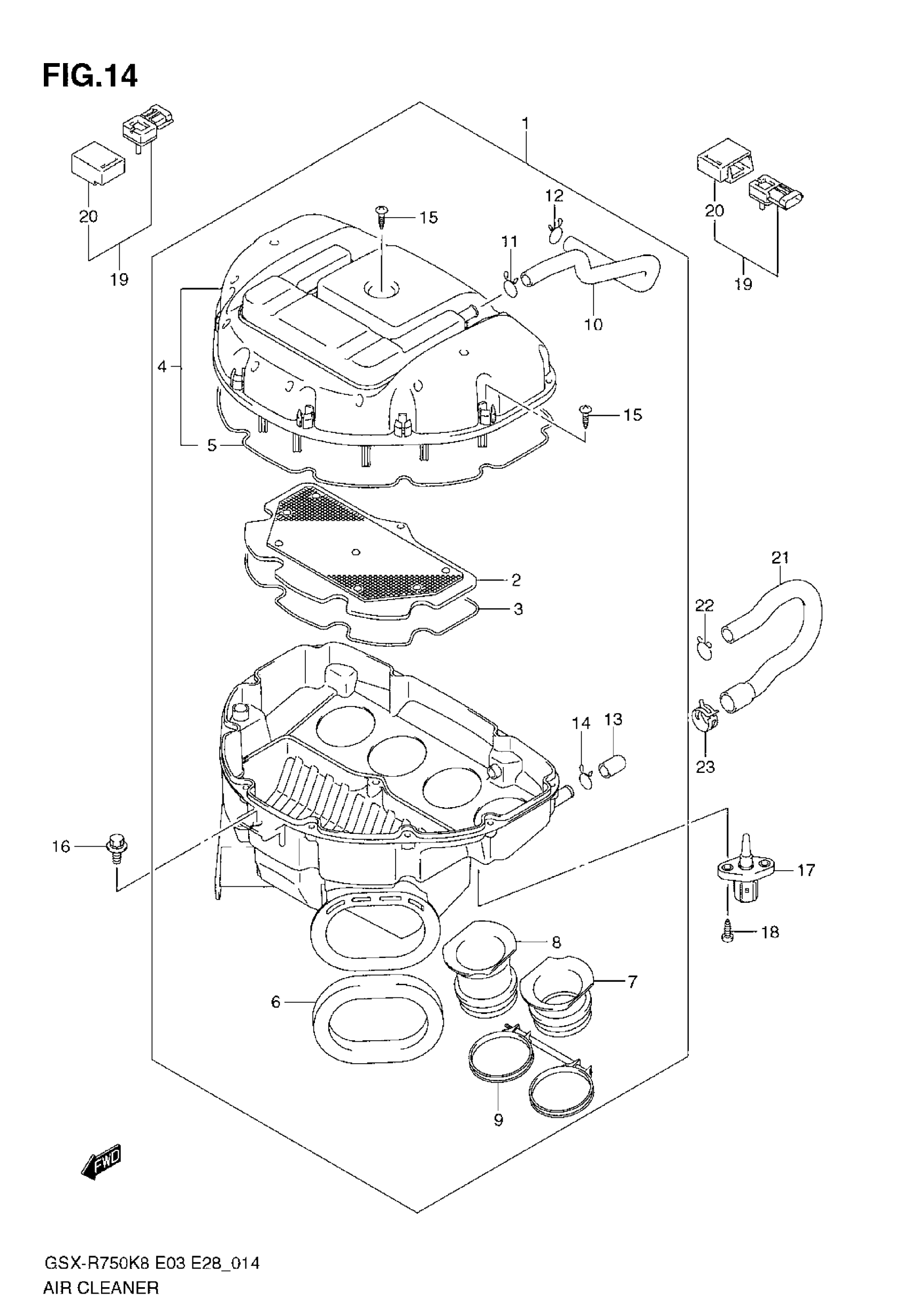

Suzuki GSX-R750 (2008) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 15

13700-02H10

Unavailable

2

FILTER ASSY

13780-01H00

$41.94

3

GASKET, CASE

13756-01H00

$5.80

4

CAP

13740-01H10

Unavailable

5

GASKET, CAP

13746-01H00

$7.82

6

CUSHION, DUCT

13736-01H00

$9.78

7

TUBE, OUTLET, LH/RH

13881-02H01

$29.33

8

TUBE, OUTLET, ML/MR

13882-02H10

Unavailable

9

CLAMP

13826-02H12

$26.22

10

TUBE,BREATHER This part replaces 13853-01H00.

13853-01H01

$19.63

11

CLIP

09401-14101

$2.34

12

CLIP

09401-16401

$3.14

13

.PLUG

13859-41B10

$7.38

14

CLIP

09401-14101

$2.34

15

.SCREW

13831-35F00

$2.38

16

BOLT

09111-06089

$2.62

17

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$52.06

18

SCREW

03511-0516A

$1.86

19

SENSOR, AIR PRESSURE | Includes Item(s) 20

15630-29G10

$273.45

20

HOLDER, SENSOR

15625-29G00

$12.40

21

HOSE, ISC VALVE

13697-37H00

$19.57

22

CLIP

09401-15101

$2.26

23

CLIP

09401-16403

$2.83
