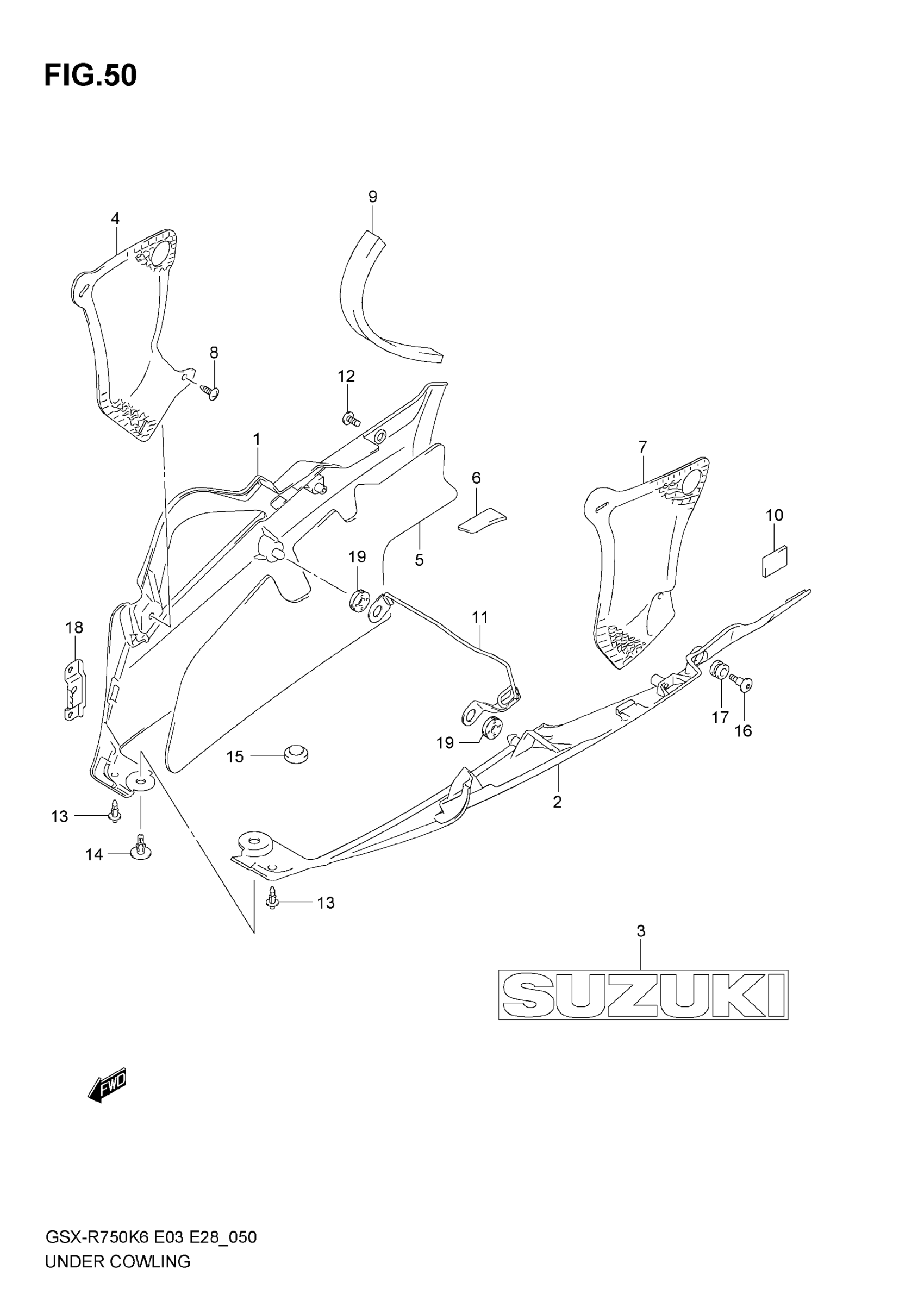

Suzuki GSX-R750 (2007) UNDER COWLING Diagram

#

Description
Price

1

COWL,UNDER,R | FOR AGN,CWH This part replaces 94470-01H00-YKV.

94470-01H01-YKV

Unavailable

1

COWL,UNDER,R | FOR CRS,BMV,CRT This part replaces 94470-01H00-4TX.

94470-01H01-4TX

Unavailable

1

COWL,UNDER,R | FOR CRU This part replaces 94470-01H00-4UX.

94470-01H01-4UX

Unavailable

2

COWL, UNDER LH (BLACK) | FOR AGN,CWH

94480-01H00-YKV

$367.93

2

COWL, UNDER LH (BLACK) | FOR CRS,BMV,CRT

94480-01H00-4TX

Unavailable

2

COWL, UNDER LH (BLACK) | FOR CRU; Includes Item(s) 3 - 3

94480-01H00-4UX

$367.93

3

EMBLEM (SILVER) | FOR YKV

68181-01H00-YD8

$32.17

3

EMBLEM (GRAY) | FOR 4TX

68181-01H00-YU8

Unavailable

3

EMBLEM (BLACK) | FOR 4UX

68181-01H00-019

$32.17

4

SHIELD, HEAT NO.1 RH | MODEL K6 This part replaces 94472-01H00.

94472-01H01

$47.90

4

SHIELD, HEAT NO.1 RH | MODEL K7

94472-01H01

$47.90

5

SHIELD, HEAT NO.2 RH

94472-01H10

$32.88

6

SHIELD, HEAT NO.3 RH

94472-01H20

$8.18

7

SHIELD, HEAT LH | MODEL K6 This part replaces 94482-01H00.

94482-01H01

$46.15

7

SHIELD, HEAT LH | MODEL K7

94482-01H01

$46.15

8

SCREW

03541-1516A

$2.06

9

CUSHION

94460-01H00

$18.48

10

CUSHION This part replaces 33652-27G00.

44543-10G00

$5.56

11

BRACKET, LOWER

94530-01H00

$16.82

12

SCREW, RH

09139-05064

$2.57

13

CLIP, FRONT (BLACK)

09409-06314-5PK

$2.78

14

CLIP, JOINT

94479-35F00

$5.62

15

CUSHION, LOWER

09321-10018

$5.45

16

SCREW, LH

09139-06126

$4.04

17

CUSHION

09320-09016

$1.97

18

PLATE

94498-01H00

$11.50

19

CUSHION

09320-08028

$3.04
