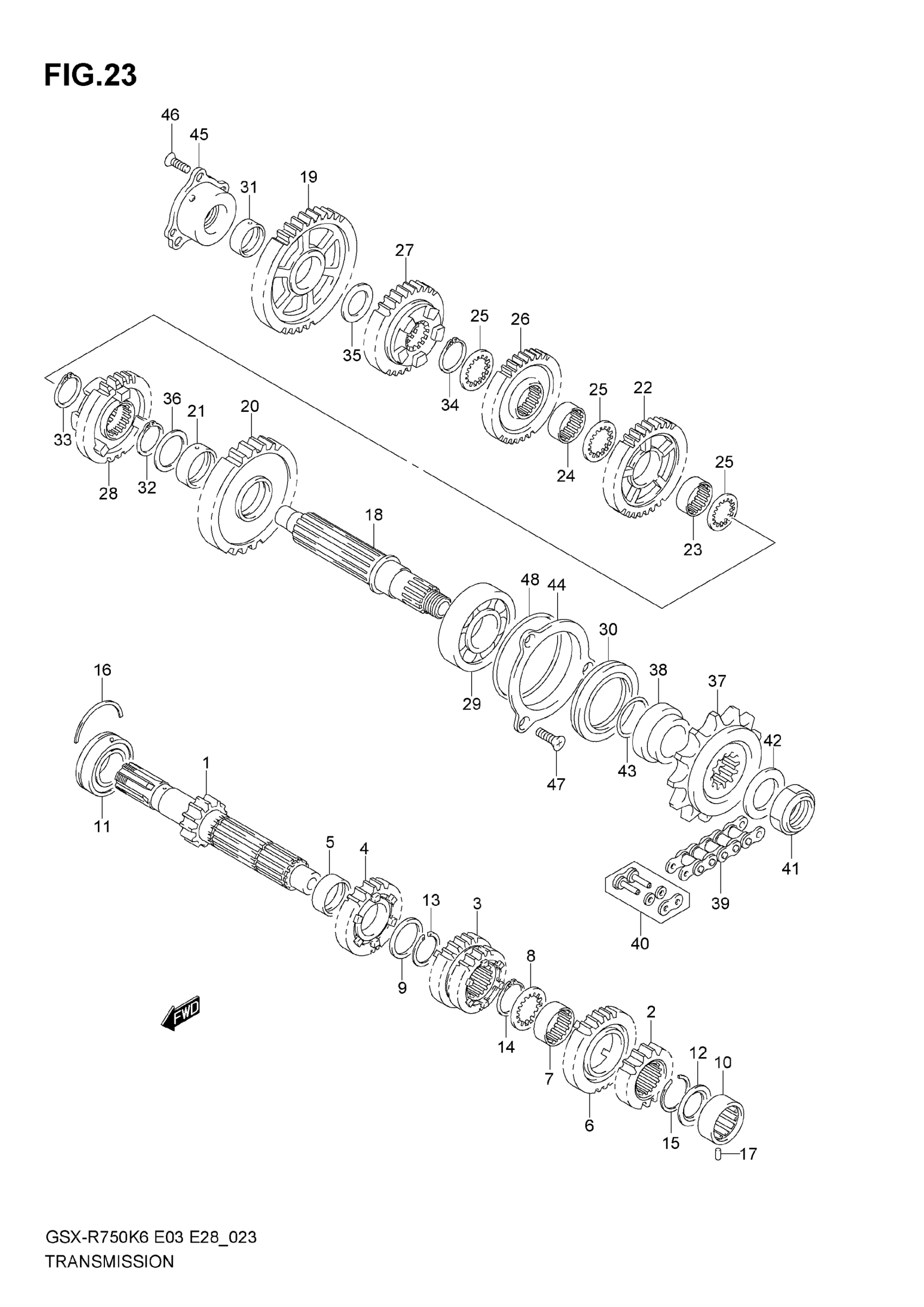

Suzuki GSX-R750 (2007) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-01H00

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$117.48

3

GEAR,3RD & 4TH DRIVE (NT:21/2

24231-01H00

$179.96

4

GEAR, 5TH DRIVE (NT:23)

24251-01H00

$168.55

5

BUSH 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR,6TH DRIVEN (NT:24)

24261-01H01

$168.55

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$28.62

8

WASHER, 6TH DRIVE

09167-27001

$3.63

9

WASHER, 5TH DRIVE | 27X36X1.0

09160-27008

$3.68

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

$42.65

11

BEARING, CNTR RH | 25X62X17

09262-25150

$82.62

12

SEAL, OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP, 5TH DRIVE

09380-27006

$2.73

14

CIRCLIP, 6TH DRIVE

09380-27006

$2.73

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.70

16

C RING, CNTR RH

09390-62012

$7.31

17

PIN, COUNTER SHAFT, LH

09261-06003

$1.49

18

SHAFT, DRIVE This part replaces 24131-01H00.

24131-01H01

$326.27

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$160.78

20

GEAR,2ND DRIVEN (NT:39) This part replaces 24321-35F10.

24321-35F11

$135.95

21

BUSH, 2ND DRIVEN

24322-35F00

$20.63

22

GEAR,3RD DRIVEN (NT:36) This part replaces 24331-40F20.

24331-40F30

$167.85

23

BUSH, 3RD DRIVEN

24262-17E01

$38.62

24

BUSH, 4TH DRIVEN GEAR

24262-17E01

$38.62

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$175.18

27

GEAR, 5TH DRIVEN (NT:31)

24351-01H01

Unavailable

28

GEAR, 6TH DRIVEN (NT:26)

24361-01H00

$175.18

29

BEARING, DRIVE SHAFT, LH | 28X70X18

09262-28045

$104.23

30

SEAL, DRIVE SHAFT, OIL | 36X70X6

09283-42017

$44.45

31

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

$14.82

32

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

33

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

34

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

35

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

$3.12

36

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$3.68

37

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$78.92

38

SPACER, ENGINE SPROCKET

27531-01H00

$40.68

39

CHAIN,DRIVE (RK GB525ROZ5Y)

27600-33E40-116

$278.70

40

JOINT SET | OPT

27620-33E40

$21.10

41

NUT, ENGINE SPROCKET

09159-20004

$15.67

42

WASHER (25X41X3)

09160-25009

$5.36

43

O RING (D:2.4,ID:23.7)

09280-24010

$5.64

44

RETAINER, DRIVE SHAFT, L This part replaces 24751-01H00.

24751-01H10

$128.72

45

HOUSING, DRIVE SHAFT, SET

24771-01810

$166.88

46

SCREW, DRIVE SHAFT (6X20) This part replaces 09139-06159-A05.

09139-06159

$4.10

47

SCREW, DRIVE SHAFT (6X20) This part replaces 09139-06159-A05.

09139-06159

$4.10

48

O RING

09280-68009

$20.85
