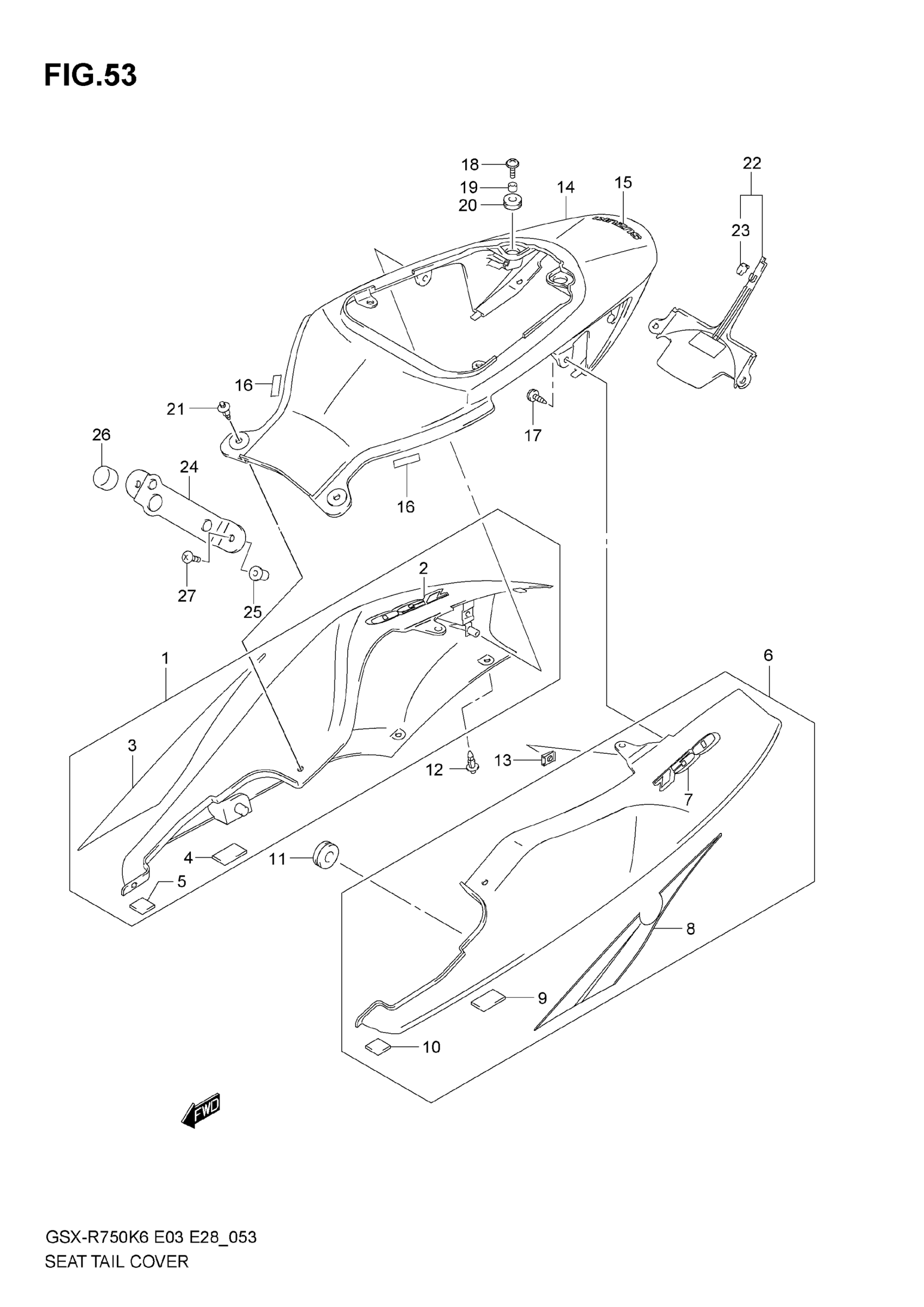

Suzuki GSX-R750 (2007) SEAT TAIL COVER (MODEL K6) Diagram

#

Description
Price

1

COVER,SEAT TAIL | FOR CWH This part replaces 45501-02H00-YBD.

45501-02H01-YBD

Unavailable

1

COVER,SEAT TAIL | FOR AGN This part replaces 45501-02H10-YEC.

45501-02H11-YEC

Unavailable

1

COVER,SEAT TAIL | FOR CRS This part replaces 45501-02H10-YHL.

45501-02H11-YHL

Unavailable

1

COVER,SEAT TAIL | FOR CRU; Includes Item(s) 2 - 5 This part replaces 45501-02H10-YKV.

45501-02H11-YKV

Unavailable

2

EMBLEM,750,R | FOR YBD,YEC This part replaces 68161-02H00-LV8.

68161-02H01-LV8

$13.88

2

EMBLEM, 750, R | FOR YHL,YKV

68161-02H00-CVZ

Unavailable

3

TAPE, SEAT TAIL COVER, R | FOR YBD

68165-02H00-DBZ

Unavailable

4

CUSHION

45516-01H00

$5.32

5

CUSHION, FR

45517-01H00

$5.40

6

COVER,SEAT TAIL | FOR CWH This part replaces 45502-02H00-YBD.

45512-01H00

$69.52

6

COVER,SEAT TAIL | FOR AGN This part replaces 45502-02H10-YEC.

45502-02H11-YEC

Unavailable

6

COVER,SEAT TAIL | FOR CRS This part replaces 45502-02H10-YHL.

45512-01H00

$69.52

6

COVER,SEAT TAIL | FOR CRU; Includes Item(s) 7 - 10 This part replaces 45502-02H10-YKV.

45502-02H11-YKV

Unavailable

7

EMBLEM, 750, L | FOR YBD,YEC

68171-02H00-LV8

$19.57

7

EMBLEM,750,L | FOR YHL,YKV This part replaces 68171-02H00-CVZ.

68171-02H01-CVZ

$13.00

8

TAPE, SEAT TAIL COVER, L | FOR YBD

68175-02H00-DBZ

Unavailable

9

CUSHION

45516-01H00

$5.32

10

CUSHION, FR

45517-01H00

$5.40

11

CUSHION, SEAT TAIL COVER FR

09320-08028

$3.04

12

CLIP, SEAT TAIL COVER

09409-06314-5PK

$2.78

13

NUT, SEAT TAIL COVER CTR

09148-05038

$1.97

14

COVER,SEAT TAIL | FOR CWH This part replaces 45503-01H00-YKY.

45503-01H02-YKY

$246.02

14

COVER,SEAT TAIL | FOR AGN This part replaces 45503-01H00-3WX.

45503-01H02-3WX

$240.02

14

COVER,SEAT TAIL | FOR CRS,CRU; Includes Item(s) 15 - 16 This part replaces 45503-01H00-019.

45503-01H02-019

$236.98

15

EMBLEM,"SUZUKI" | FOR YKY This part replaces 68280-04F00-YD8.

68280-04F01-YD8

$11.59

15

EMBLEM, SUZUKI (GRAY) | FOR 3WX,019

68280-04F00-YU8

$19.23

16

TAPE, SEAT TAIL COVER CTR

94443-06G00

$3.25

17

SCREW, SEAT TAIL COVER

03241-1516A

$1.97

18

BOLT (6X20) This part replaces 09116-06011-A05.

09116-06115

$1.97

19

SPACER (6.5X10X7) This part replaces 09180-06283-A05.

09180-06283

$1.91

20

CUSHION, SEAT TAIL COVER

09320-10059

$3.83

21

CLIP, SEAT TAIL COVER UPPER

09409-06314-5PK

$2.78

22

COVER,SEAT TAIL | FOR CWH This part replaces 45504-01H00-YKY.

45514-01H00

$19.39

22

COVER,SEAT TAIL | FOR AGN,CRS,CRU; Includes Item(s) 23 This part replaces 45504-01H00-019.

45514-01H00

$19.39

23

CUSHION, SEAT TAIL COVER

45515-01H00

$5.50

24

BRACKET, SEAT TAIL COVER

45250-01H00

Unavailable

25

NUT, SEAT TAIL COVER BRACKET

09159-05019

$7.14

26

CUSHION, SEAT TAIL COVER BRKT

09321-10011

$2.91

27

SCREW

02142-0520A

$1.49
