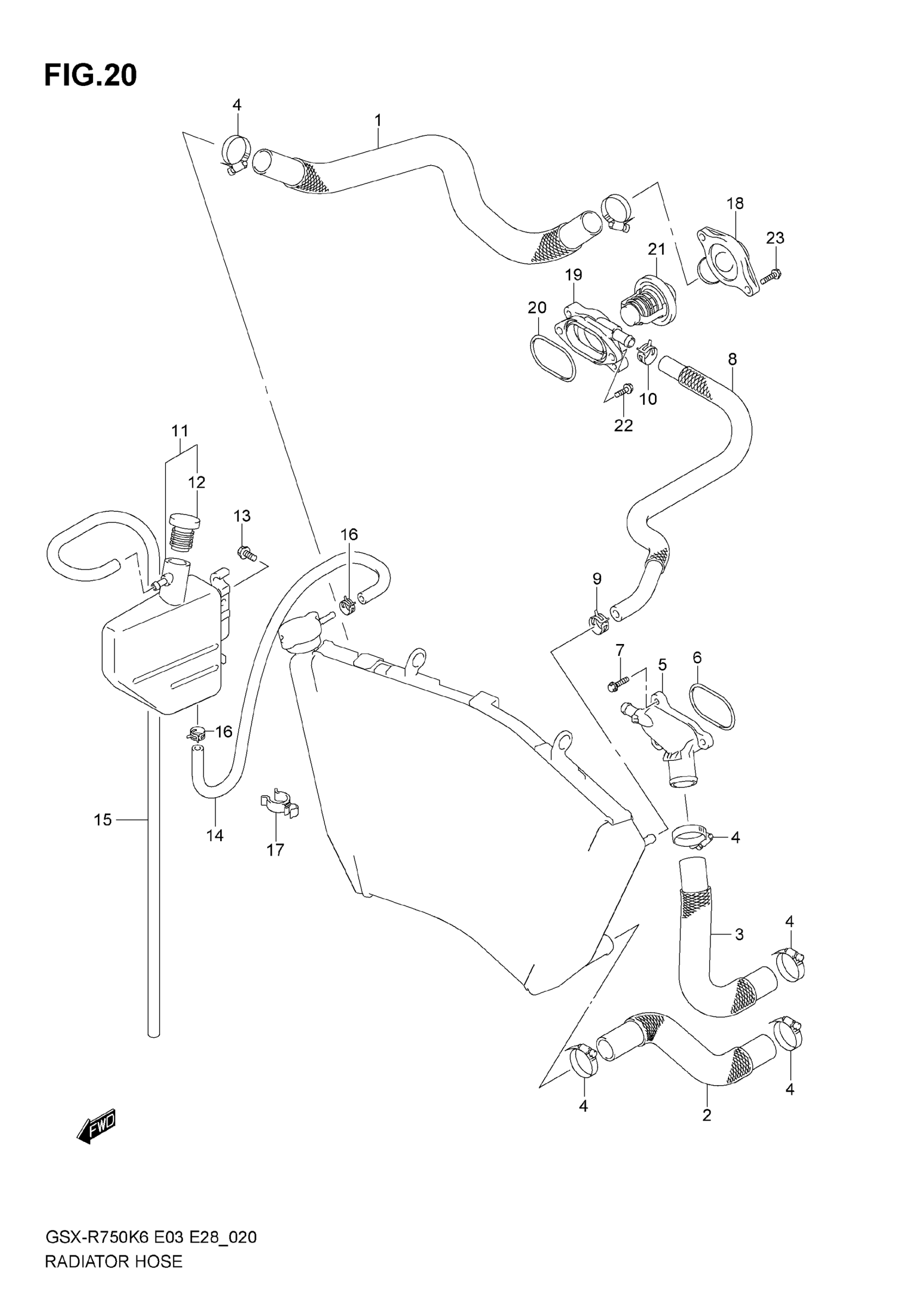

Suzuki GSX-R750 (2007) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-01H00

$60.47

2

HOSE, RADIATOR OUTLET

17852-01H00

$36.26

3

HOSE, CYLINDER INLET

17853-01H00

$32.09

4

CLAMP This part replaces 09402-38511-A05.

09402-38512

$10.73

5

CONNECTOR,CYL WATER INLET

17861-01H00

$76.42

6

O-RING,CYL WATER CONNECTOR

17863-01H00

$6.45

7

BOLT

01547-0620A

$2.01

8

HOSE, WATER BYPASS

17854-01H00

$41.80

9

CLIP This part replaces 09401-12409-A05.

09401-12414

$2.98

10

CLIP This part replaces 09401-14403-A05.

09401-14403

$5.17

11

TANK ASSY, RESERVOIR | Includes Item(s) 12

17910-01H00

$56.20

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

13

BOLT (6X12) This part replaces 09111-06085-A05.

09111-06085

$4.16

14

HOSE

17981-18G00

$14.57

15

HOSE, RSVR TANK INLET This part replaces 17981-44G00.

17900-44810

$12.05

16

CLIP This part replaces 09401-08411-A05.

09401-08411

$1.77

17

CLAMP

09408-00107

$5.52

18

COVER, THERMOSTAT

17661-01H00

$22.87

19

CONNECTOR,THERMOSTAT

17662-01H00

$105.67

20

O-RING,THERMOSTAT CONNECTOR

17663-01H00

$6.45

21

THERMOSTAT,WTR (82<-C)

17670-76G00

$33.68

22

BOLT

01547-0620A

$2.01

23

BOLT

01550-0625A

$1.97
