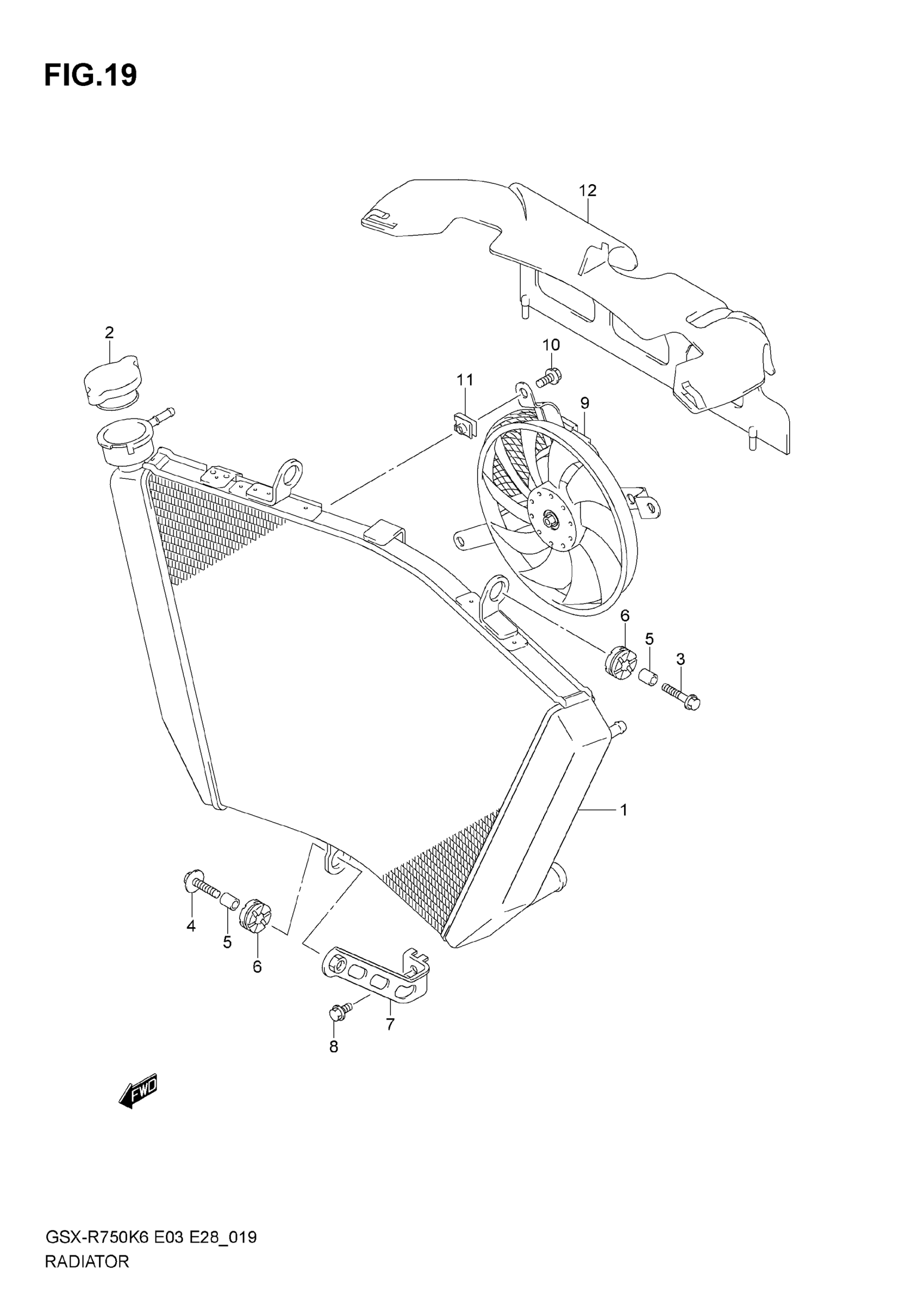

Suzuki GSX-R750 (2007) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-01H00

Unavailable

2

CAP

17730-14G00

$42.83

3

BOLT

01550-0625A

$1.97

4

BOLT (6X25) This part replaces 09118-06097-A05.

09118-06097

$2.50

5

SPACER This part replaces 09180-06290-A05.

09180-06290

$2.35

6

CUSHION

09320-10051

$2.99

7

BRACKET

17750-01H00

$11.95

8

BOLT

01550-0612A

$1.97

9

FAN ASSY, RADIATOR

17800-01H00

$711.80

10

BOLT,FAN ASSY

17711-14G00

$4.10

11

NUT

17802-14F00

$3.38

12

SHIELD, HEAT

17771-01H00

Unavailable
