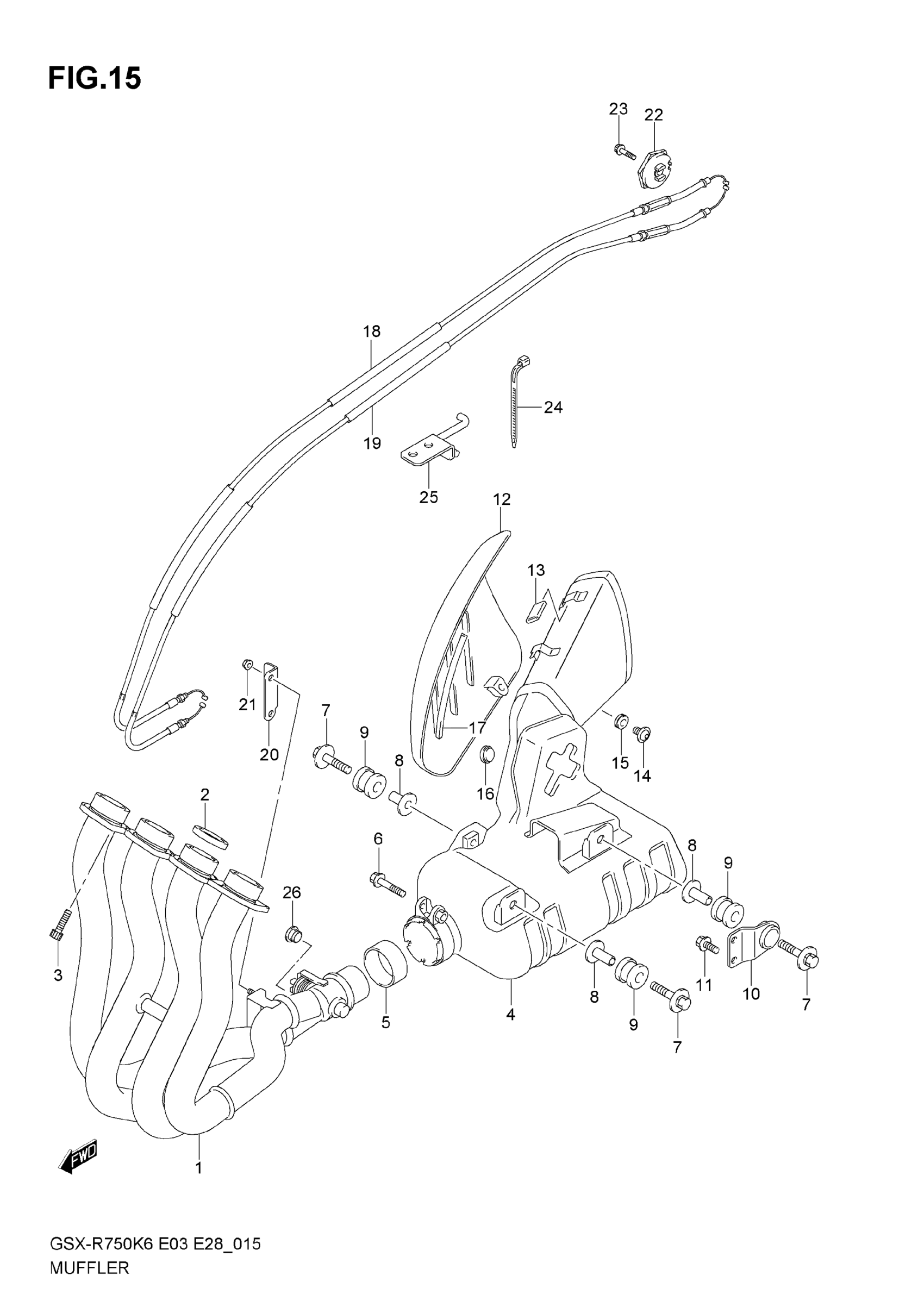

Suzuki GSX-R750 (2007) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K6 This part replaces 14100-02H00-E00.

14100-02H00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 14100-02H10-E00.

14100-02H10

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT

07130-0825A

$3.04

4

MUFFLER

14200-02H10-H01

Unavailable

5

CONNECTOR,MUFFLER This part replaces 14771-24F00.

14771-24F01

$31.05

6

BOLT

09103-08392

$3.62

7

BOLT

09118-08152-A05

$5.24

8

SPACER, MUFFLER SUPPORT This part replaces 09180-08152-A05.

09180-08152

$5.83

9

CUSHION

09320-12048

$5.11

10

BRACKET

14770-01H00

$25.33

11

BOLT

07120-0816A

$3.05

12

COVER,MUF This part replaces 14780-01H00-E00.

14780-01H01

Unavailable

13

GROMMET

14795-10FA0

$5.58

14

SCREW

09139-06128

$5.67

15

CUSHION (8.4X18X6)

09320-08066

$8.24

16

CUSHION

09321-10018

$5.45

17

CUSHION

47315-90100

Unavailable

18

CABLE,EXH VALVE | MODEL K6 This part replaces 11276-01H00-E00.

11276-01H01

$97.05

18

CABLE,EXH VALVE | MODEL K7 This part replaces 11276-01H01-E00.

11276-01H01

$97.05

19

CABLE,EXH VALVE | MODEL K6 This part replaces 11277-01H00-E00.

11277-01H01

$97.05

19

CABLE,EXH VALVE | MODEL K7 This part replaces 11277-01H01-E00.

11277-01H01

$97.05

20

BRACKET

14250-01H00

$11.37

21

NUT

08316-1006A

$2.19

22

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

23

BOLT

07120-0516A

$2.28

24

CLAMP | MODEL K6

09407-19401

$3.05

25

BRACKET | MODEL K7

14610-01H00

Unavailable

26

PLUG (18X8) | MODEL K7 This part replaces 09248-18005.

09248-18011

$7.35
