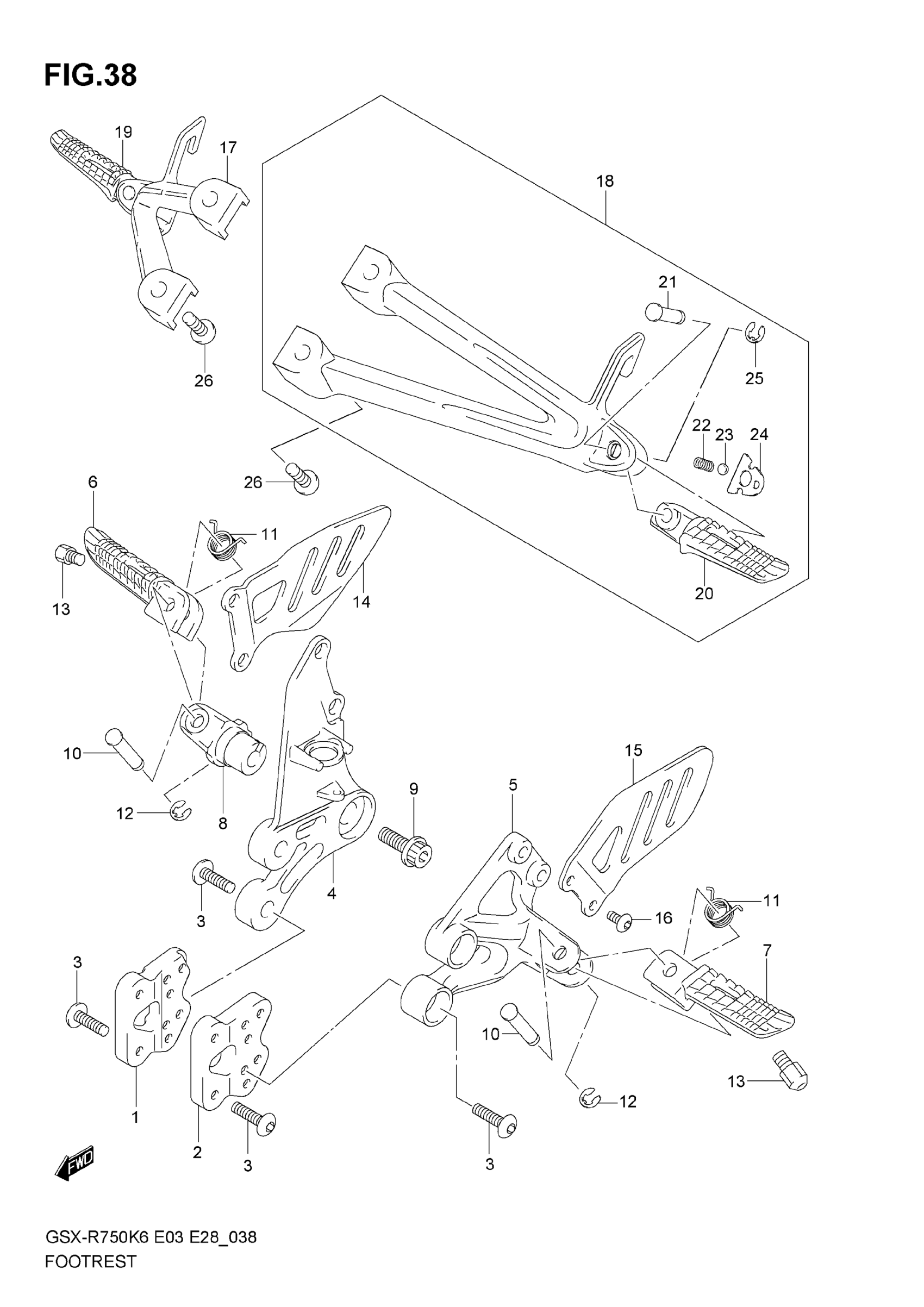

Suzuki GSX-R750 (2007) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST NO.1 RH

43541-01H00

$137.72

2

BRACKET, FRONT FOOTREST NO.1 LH

43551-01H01

$140.32

3

BOLT

09106-08181

$3.56

4

BRACKET, FRONT FOOTREST NO.2 RH

43511-01H01

$167.88

5

BRACKET, FRONT FOOTREST NO.2 LH

43521-01H00

$173.57

6

BAR, FOOTREST RH

43516-41G00

$115.65

7

BAR, FOOTREST LH

43526-41G00

$115.65

8

HOLDER, FOOTREST This part replaces 43531-41G00.

43531-41G10

$99.17

9

BOLT (10X28) This part replaces 09106-10064-A05.

09106-10064

$4.90

10

PIN This part replaces 09208-08010-A05.

09208-08010

$2.91

11

SPRING This part replaces 09448-14037-A05.

09448-14037

$3.16

12

E RING

08332-1106A

$1.49

13

.BOLT,BANK SENSOR This part replaces 43576-07D01-A05.

43576-07D01

$8.85

14

GUARD,FRONT FOO This part replaces 43571-01H00.

43571-01H01

$66.95

15

GUARD,FRONT FOO This part replaces 43576-41G00.

43576-41G01

$63.40

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.98

17

FOOTREST ASSY,P This part replaces 43600-01H00-E00.

43600-01H00-13L

$268.15

18

FOOTREST ASSY,P | Includes Item(s) 19 - 25 This part replaces 43700-01H00-E00.

43700-01H00-13L

$268.15

19

BAR, RH

43611-41G00

$63.97

20

BAR, LH

43621-41G00

$63.97

21

PIN This part replaces 09208-08011-A05.

09208-08011

$2.91

22

SPRING

09440-05005

$1.58

23

BALL

06111-07004

$1.49

24

PLATE,PILLION F This part replaces 43816-01H01.

43816-01H02

$5.88

25

E RING

08332-1106A

$1.49

26

BOLT

09106-08181

$3.56
