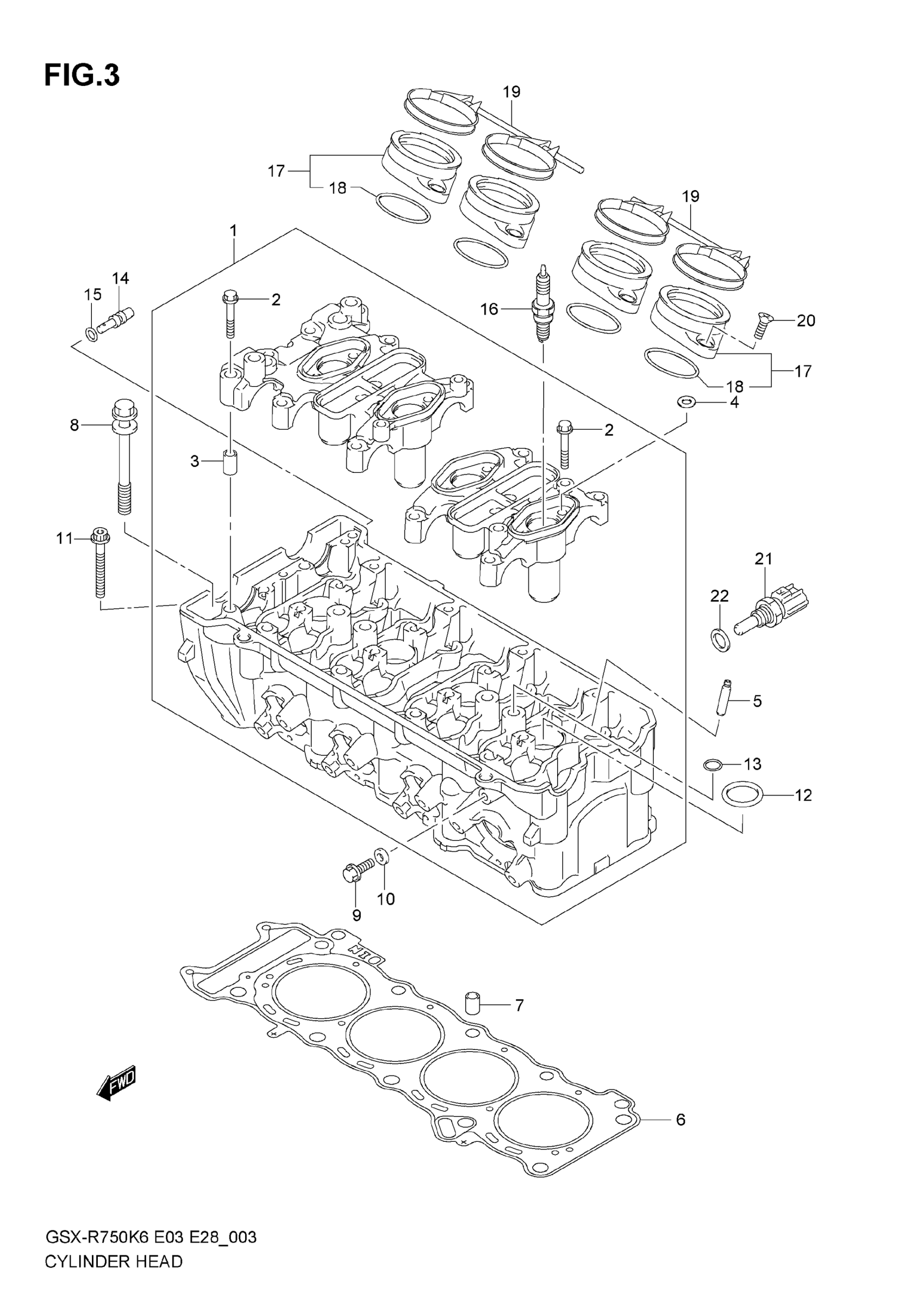

Suzuki GSX-R750 (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-02H00

Unavailable

2

BOLT

09103-06266

$2.12

3

PIN

09206-08007

$2.60

4

WASHER

09168-06018

$1.77

5

GUIDE, VALVE (OS 0.5) | OPT

11115-29G70

$32.87

6

GASKET, CYLINDER HEAD

11141-02H00

$77.21

7

PIN

04211-11169

$1.78

8

BOLT (10X95)

11117-29G00

$8.93

9

BOLT, OIL GALLERY

09103-06222

$2.26

10

GASKET

09168-06023

$2.35

11

BOLT, CYLINDER HEAD

07120-0650A

$3.16

12

O-RING

11179-81402

$4.21

13

O RING

09280-11001

$1.98

14

JET, OIL

09493-80005

$16.25

15

O RING

09280-04004

$1.91

16

PLUG SPARK (CR9E)

09482-00458

$6.47

16

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

16

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

16

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

16

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

16

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

17

PIPE ASSY,INTAK | Includes Item(s) 18 This part replaces 13101-02H00.

13101-02H01

$42.17

18

O RING (D:2.40,ID:41.7)

09280-42003

$8.65

19

CLAMP, INTAKE PIPE This part replaces 13170-02H00-E00.

13170-02H02

$26.83

20

BOLT (6X18.4) This part replaces 09120-06007-A05.

09120-06007

$3.16

21

SENSOR, WATER TEMPERATURE

13650-10G00

$87.24

22

GASKET

09168-12017

$1.95
