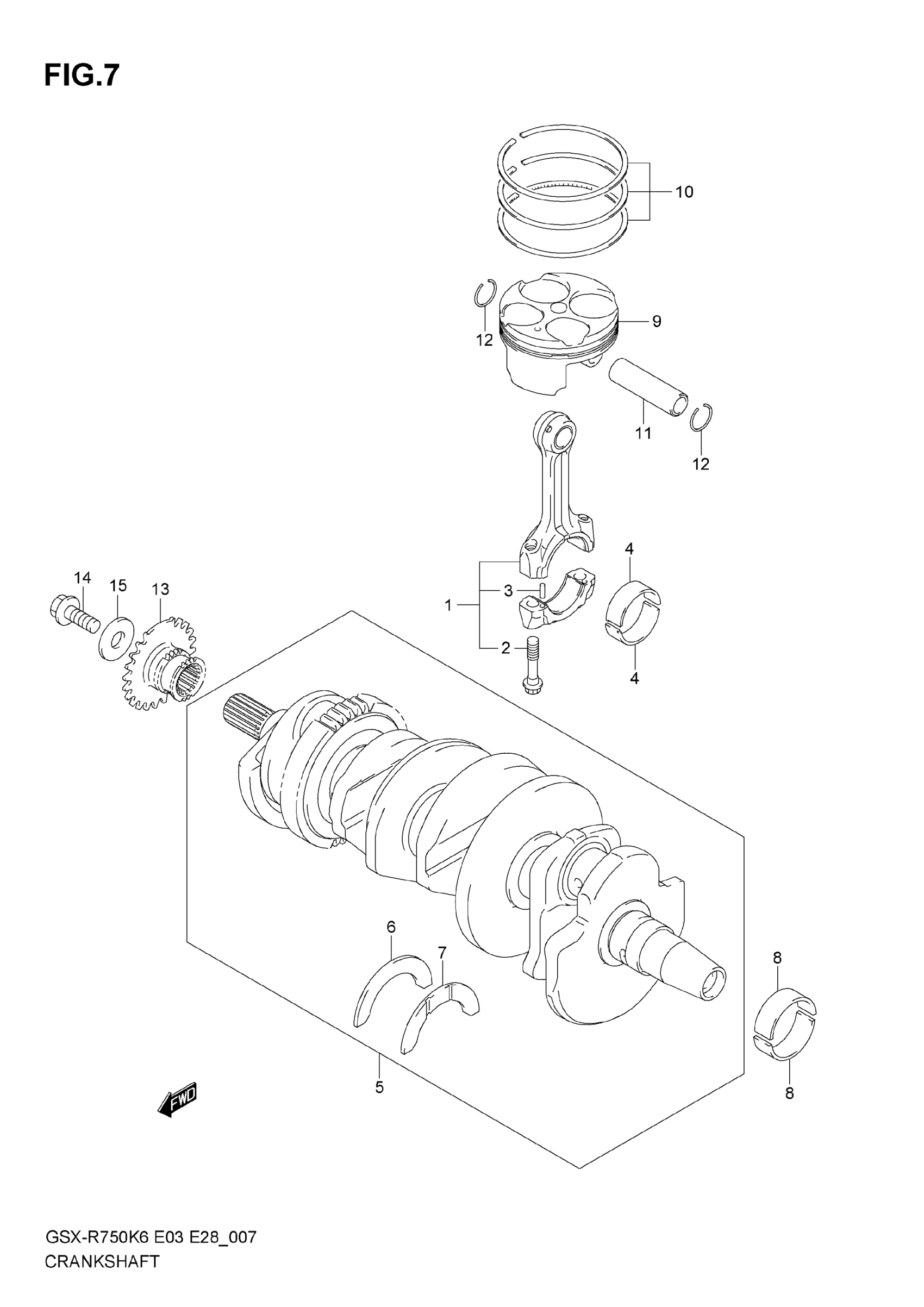

Suzuki GSX-R750 (2007) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3 This part replaces 12160-02H00.

12160-02H10

$229.13

2

BOLT

12163-35F00

$10.23

3

PIN (4X13.8)

04221-04089

$1.49

4

BEARING,CRANK PIN

12164-30G00-0A0

$17.90

4

BEARING,CRANK PIN

12164-30G00-0B0

$15.23

4

BEARING,CRANK PIN

12164-30G00-0C0

$14.65

4

BEARING,CRANK PIN

12164-30G00-0D0

$18.25

5

CRANKSHAFT SET | Includes Item(s) 6 - 7 This part replaces 12000-02840.

12000-02850

$1,776.10

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING,CRANKSHAFT

12229-02H00-0A0

$18.90

8

BEARING,CRANKSHAFT

12229-02H00-0B0

$18.80

8

BEARING,CRANKSHAFT

12229-02H00-0C0

$18.80

8

BEARING,CRANKSHAFT

12229-02H00-0D0

$18.90

8

BEARING,CRANKSHAFT

12229-02H00-0E0

$22.22

9

PISTON This part replaces 12111-02H00-0F0.

12111-02H10-0F0

$230.77

10

RING SET,PISTON

12140-02H00

$92.97

11

PIN,PISTON

12151-41G00

$14.90

12

CIRCLIP

09381-15001

$1.49

13

SPROCKET, CAM CHAIN

12731-01H00

$130.35

14

BOLT

09103-10189

$4.04

15

WASHER

08211-10285

$3.49
