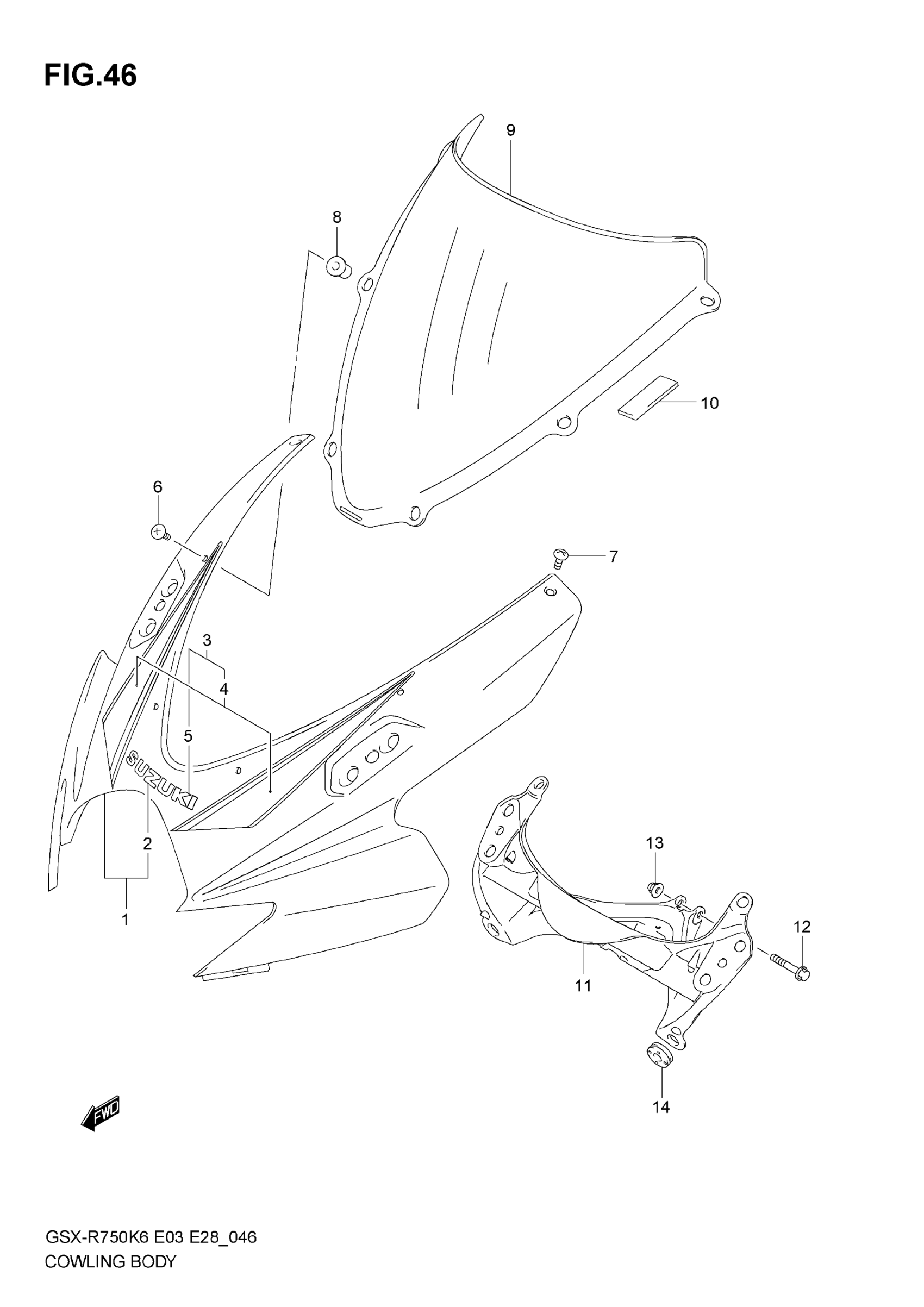

Suzuki GSX-R750 (2007) COWLING BODY (MODEL K6) Diagram

#

Description
Price

1

BODY ASSY,COWLI | FOR CRU; Includes Item(s) 2 This part replaces 94401-01H00-019.

94401-01H01-019

$338.92

2

EMBLEM,"SUZUKI" | FOR 019 This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$9.92

3

BODY, COWLING (BLACK) | FOR AGN

94401-02H00-019

Unavailable

3

BODY, COWLING (RED) | FOR CRS

94401-02H00-YHL

Unavailable

3

BODY ASSY,COWLI | FOR CWH; Includes Item(s) 4 - 5 This part replaces 94401-02H00-YKY.

94401-02H01-YKY

Unavailable

4

TAPE SET | FOR 019

68270-02H00-DBV

Unavailable

4

TAPE SET | FOR YHL

68270-02H00-DBW

Unavailable

4

TAPE SET | FOR YKY

68270-02H00-DBY

Unavailable

5

EMBLEM,"SUZUKI" | FOR 019,YKY This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

5

.EMBLEM,"SUZUKI" (BLACK) | FOR YHL This part replaces 68641-19F00-019.

68281-24F11-019

$10.89

6

SCREW, FRONT

09125-05133

$2.19

7

SCREW, REAR

09125-05134

$2.22

8

NUT

09159-05019

$7.14

9

WINDSCREEN | Includes Item(s) 10 This part replaces 94610-01H00.

94610-01H01

$262.75

10

TAPE

94443-06G00

$3.25

11

BRACE, COWLING

94511-01H00

$287.43

12

BOLT

01550-0840A

$3.05

13

NUT

08313-2008A

$2.50

14

CUSHION

09320-08028

$3.04
