Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:77 This part replaces 21200-02830.

21200-02840

$509.50

2

SPACER, OIL PUMP DRIVE

21253-01H00

$41.45

3

WASHER (25X54X2.4)

09160-25073

$14.50

4

BEARING (35X40X26.8)

09263-35015

$27.95

5

HUB, CLUTCH SLEEVE

21410-41G10

$236.72

6

BOLT, CLUTCH SPRING

21482-41G00

$2.94

7

SPRING, CLUTCH

21413-01H00

$7.13

8

PLATE, CLUTCH DRIVE NO.1

21441-36F30

$28.07

9

PLATE, CLUTCH DRIVE NO.2

21441-36F10

$21.05

10

PLATE, CLUTCH DRIVE NO.3

21442-41G00

$28.07

11

PLATE, CLUTCH DRIVEN NO.1 | T:2.0

21451-41G10

$13.63

12

.PLATE,CLUTCH DRIVEN (T:1.6) | T:1.6

21451-41G30

$13.63

13

DISC,CLUTCH PRESSURE

21462-41G00

$78.55

14

.SEAT,WAVE WASHER

21471-41G00

$14.20

15

WASHER, CLUTCH PLATE WAVE

21472-41G10

$20.53

16

CAM, CLUTCH DRIVE

21611-41G10

Unavailable

17

CAM,CLUTCH DRIVEN

21612-41G10

$119.18

18

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

18A

WASHER,CAM REACTION SEAT

21624-41G00

$15.53

19

LIFTER, CLUTCH PRESSURE DISC

21622-41G00

$10.50

20

NUT, CL PRESS DISC

21623-41G00

$2.61

21

WASHER (8X14X1.0)

09181-08139

$1.91

22

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

23

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$11.61

24

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.76

25

WASHER, SLEEVE HUB NUT | 25X41X2.50

09160-25077

$10.48

26

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

27

ROD, CLUTCH PUSH LH

23111-35F00

$13.30

28

PIECE, CLUTCH PUSH

23121-41G10

Unavailable

29

CAMSHAFT,CLUTCH RELEASE This part replaces 23122-41G00-A05.

23122-41G00

$56.90

30

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

31

SPRING, CLUTCH RELEASE

23125-41G00

$3.25

32

ARM, CLUTCH RELEASE This part replaces 23271-41G20.

23271-41G21

$45.38

33

BOLT, CL RELEASE

09103-06223

$2.47

34

SCREW, CLUTCH PUSH This part replaces 09134-06015-A05.

09134-06015

$6.88

35

WASHER, CLUTCH PUSH | 10.5X24X1 This part replaces 09160-10020-A05.

09160-10020

$2.05

36

WASHER, CLUTCH PUSH | 15.5X28X1.0

09160-15045

$3.89

37

BEARING, CL CAM SHAFT | 10X14X10

09263-10014

$13.52

38

BEARING, CL RLSE CAM | 12X18X12

09263-12027

$7.31

39

BEARING, CL PUSH PIECE | 15X28X2

09263-15003

$8.29

40

SEAL, CL RLSE CAM SHAFT | 10X20X6

09282-10012

$7.98

41

SEAL, CLUTCH PUSH ROD | 5X34X10

09285-06011

$8.24

42

SEAL, CLUTCH PUSH ROD | 10X17X5

09285-10004

$3.37

43

NUT, CLUTCH RELEASE

08310-0006A

$1.84

44

RETAINER,CL PUSH ROD OIL SEAL This part replaces 24741-01H00-A05.

24741-01H00

$7.32

45

SCREW, PUSH ROD

09139-06153

$2.62

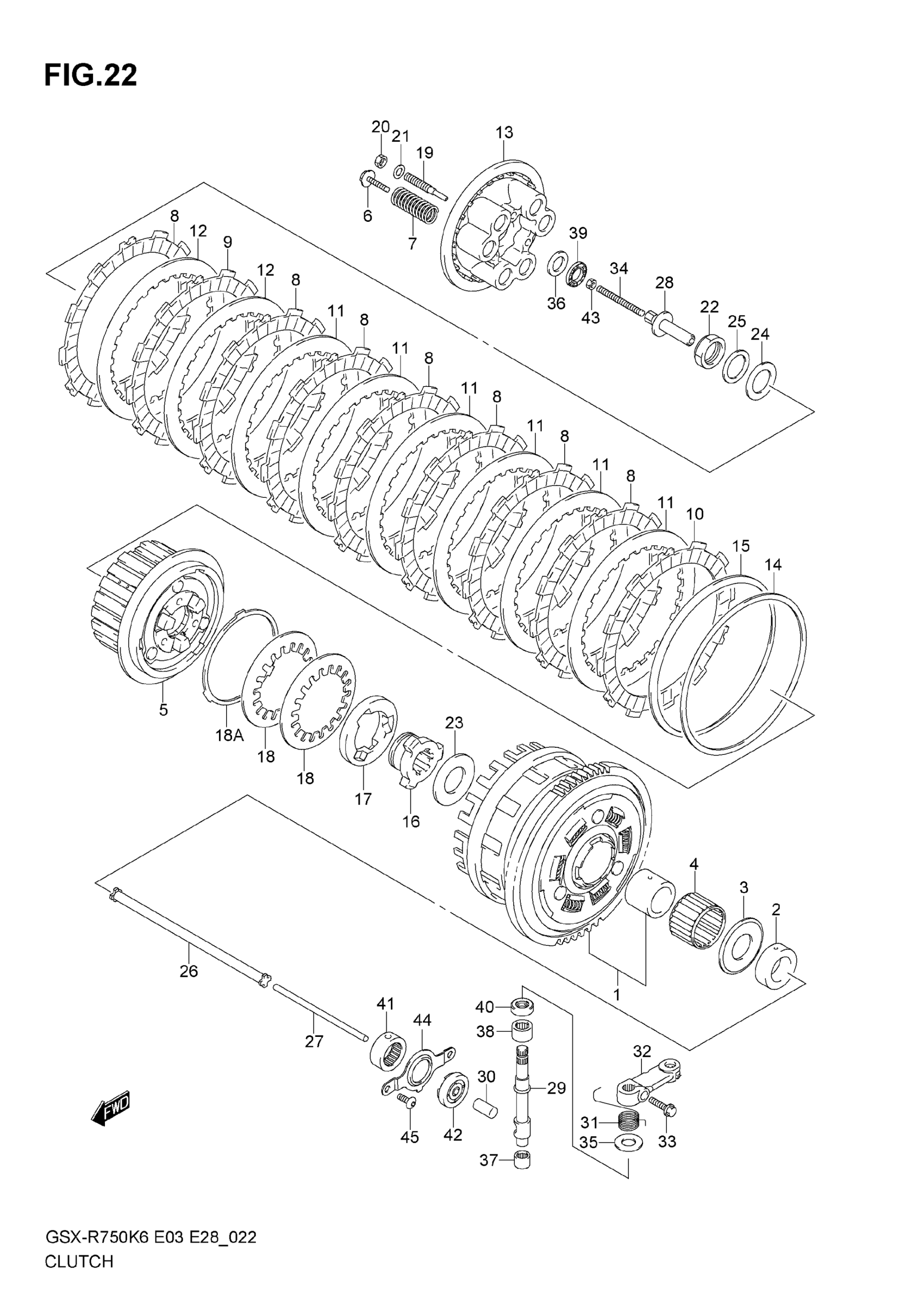

Suzuki GSX-R750 (2007) CLUTCH Diagram
