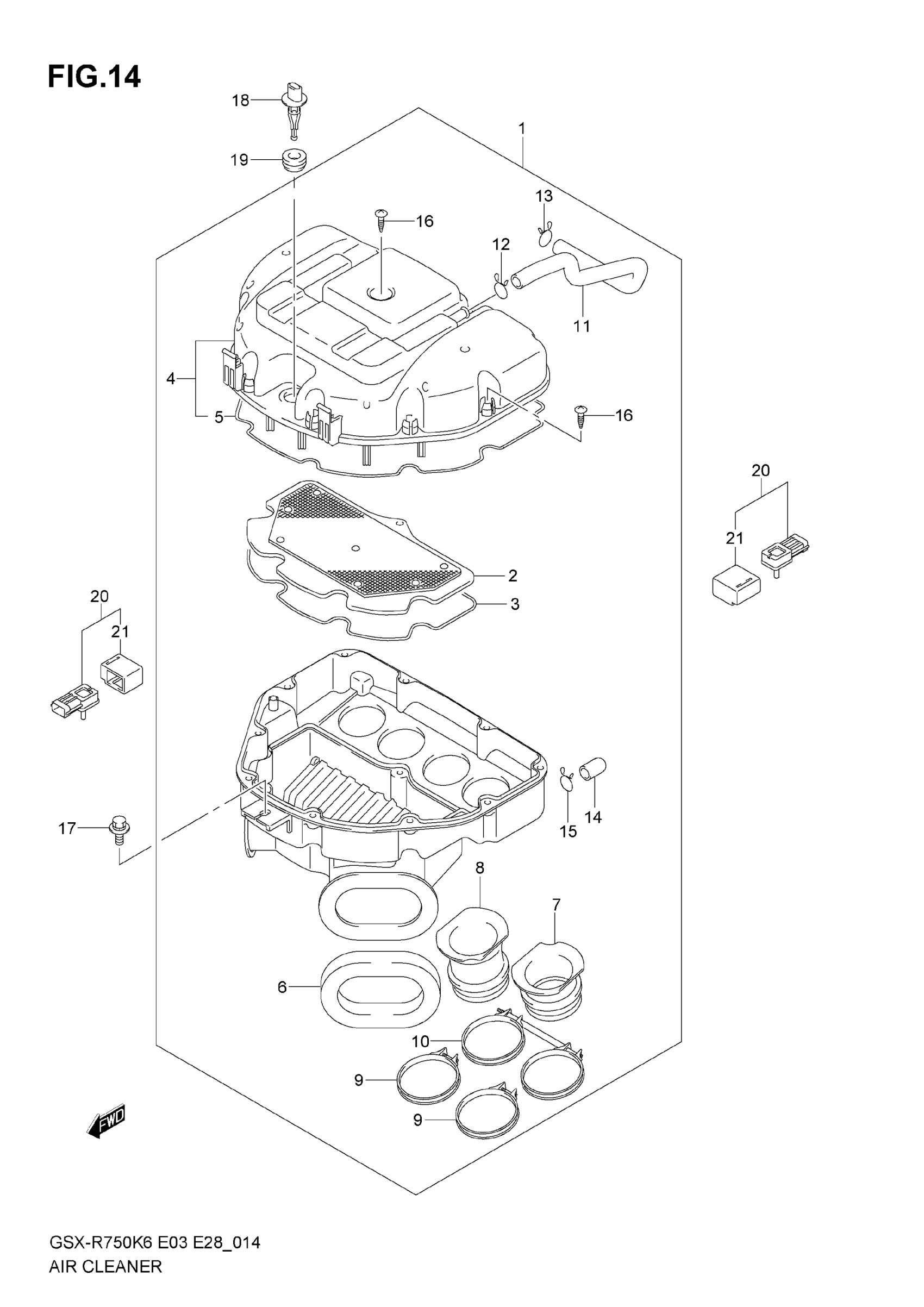

Suzuki GSX-R750 (2007) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL K6 This part replaces 13700-02H00-E00.

13700-02H04

$281.98

1

CLEANER ASSY,AI | MODEL K7; Includes Item(s) 2 - 16 This part replaces 13700-02H01.

13700-02H04

$281.98

2

FILTER ASSY

13780-01H00

$41.94

3

GASKET, CASE

13756-01H00

$5.80

4

CAP

13740-01H00

Unavailable

5

GASKET, CAP

13746-01H00

$7.82

6

CUSHION, DUCT

13736-01H00

$9.78

7

TUBE, OUTLET, LH/RH | MODEL K6 This part replaces 13881-02H00.

13881-02H01

$29.33

7

TUBE, OUTLET, LH/RH | MODEL K7

13881-02H01

$29.33

8

TUBE, OUTLET, ML/MR | MODEL K6 This part replaces 13882-02H00.

13882-02H01

Unavailable

8

TUBE, OUTLET, ML/MR | MODEL K7

13882-02H01

Unavailable

9

CLAMP | MODEL K6

13826-02H01

$16.78

10

CLAMP, INTAKE PIPE | MODEL K7 This part replaces 13826-02H10.

13826-02H12

$26.22

11

TUBE,BREATHER This part replaces 13853-01H00.

13853-01H01

$19.63

12

CLIP

09401-14301

$2.35

13

CLIP

09401-16401

$3.14

14

.PLUG

13859-41B10

$7.38

15

CLIP

09401-14301

$2.35

16

.SCREW

13831-35F00

$2.38

17

BOLT (6X16) This part replaces 09116-06130-A05.

09116-06130

$2.28

18

SENSOR, AIR TEMPERATURE

13650-52G00

$107.20

19

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$3.85

20

SENSOR, AIR PRESSURE | Includes Item(s) 21

15630-29G10

$273.45

21

HOLDER, SENSOR

15625-29G00

$12.40
