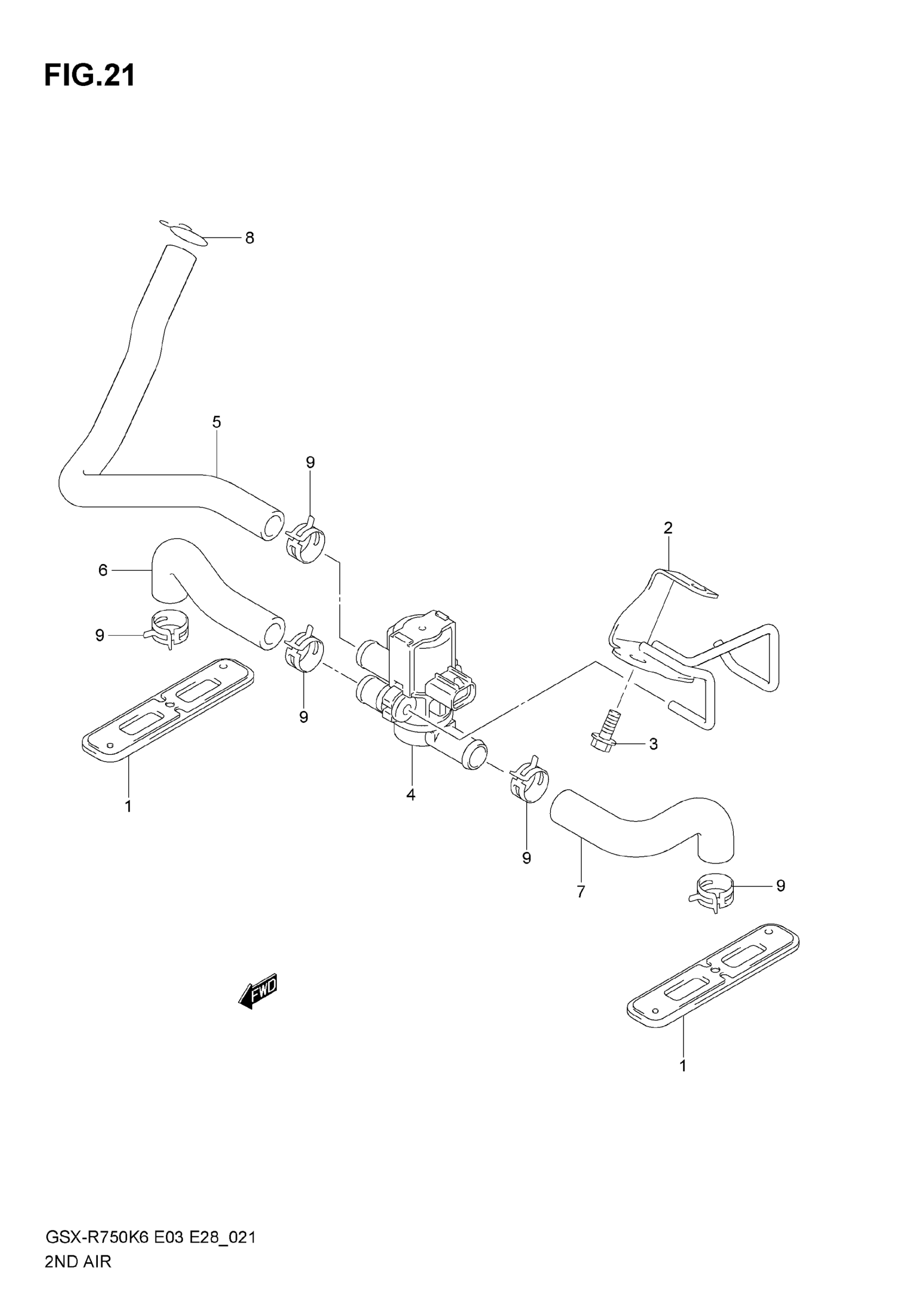

Suzuki GSX-R750 (2007) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,2ND AIR REED This part replaces 18450-01H00-E00.

18450-01H00

$58.65

2

BRACKET, 2ND AIR VALVE This part replaces 18610-01H00-A05.

18610-01H00

Unavailable

3

BOLT

01550-0616A

$1.97

4

VALVE ASSY,AIR This part replaces 18510-29G00-E00.

18510-29G01

$100.20

5

HOSE, 2ND AIR CLEANER

18711-01H00

Unavailable

6

HOSE,2ND AIR VA This part replaces 18461-01H00.

18461-01H01

$11.68

7

HOSE,2ND AIR VA This part replaces 18471-01H00.

18471-01H01

$14.42

8

CLIP This part replaces 09401-15101-A05.

09401-15101

$2.26

9

CLIP This part replaces 09401-17401-C05.

09401-17401

$3.08
