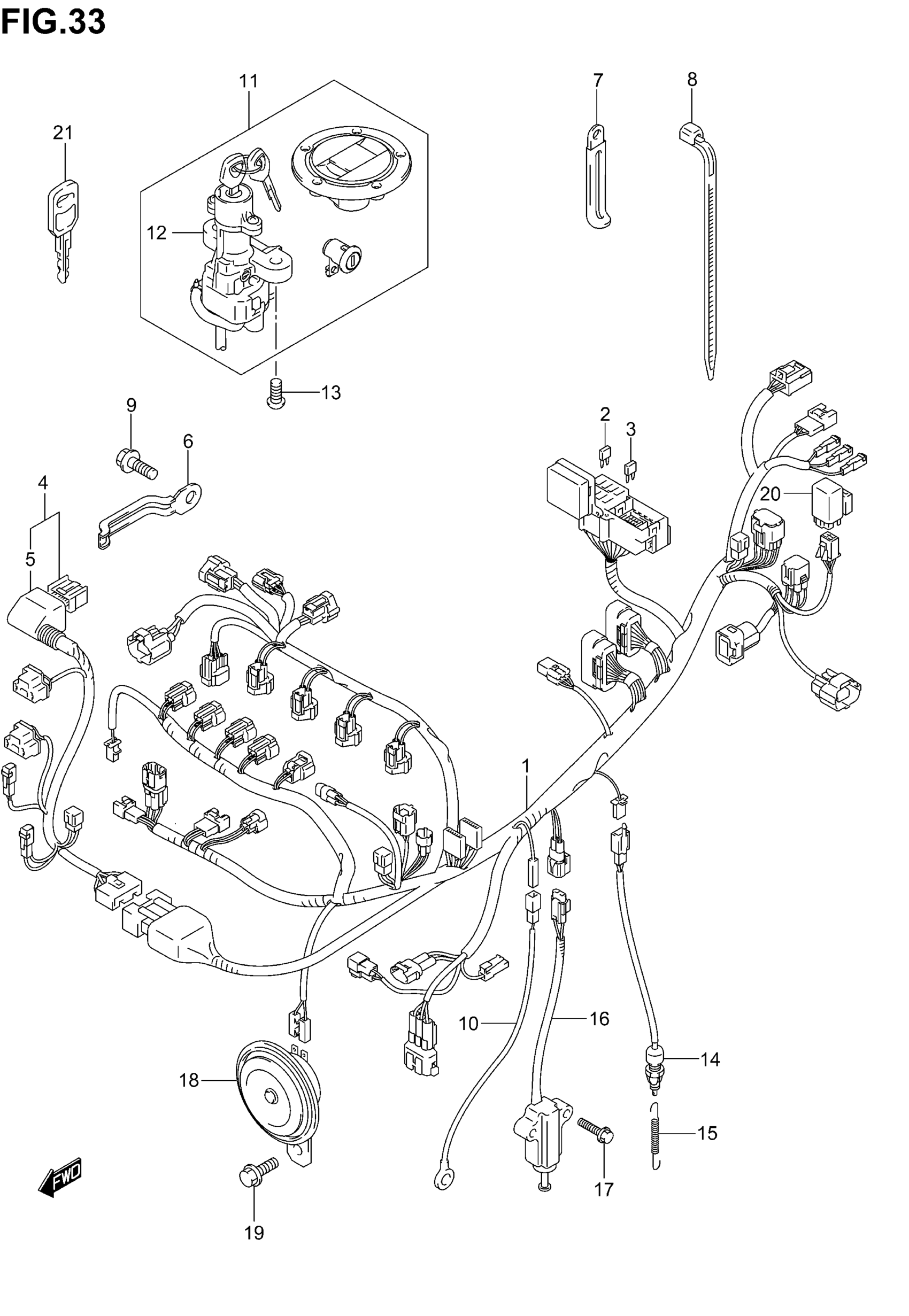

Suzuki GSX-R750 (2005) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL K4

36610-29G30

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K5; Includes Item(s) 2 - 3

36610-29G80

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

HARNESS, WIRING NO.2 | Includes Item(s) 5

36620-29G30

$229.90

5

COVER, SPEEDOMETER

36618-35F00

$10.07

6

CLAMP

09403-06322

$5.20

7

CLAMP (L:45)

09404-06429

$1.83

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

WIRE, OIL PRESSURE LEAD

36851-35F00

$16.07

11

LOCK SET | MODEL K4

37101-16840

Unavailable

11

LOCK SET | MODEL K5 This part replaces 37101-16860.

37101-16861

Unavailable

11

LOCK SET | MODEL K4 E33

37101-16850

Unavailable

11

LOCK SET | MODEL K5 E33; Includes Item(s) 12 - 12

37101-16870

Unavailable

12

LOCK ASSY,STEER | MODEL K4 This part replaces 37100-29G00.

37100-29G11

$175.26

12

LOCK ASSY,STEER | MODEL K5 This part replaces 37100-29G10.

37100-29G11

$175.26

13

SCREW

09139-08016

$3.37

14

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

15

SPRING

09443-06042

$3.77

16

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

$75.52

17

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

18

HORN ASSY This part replaces 38500-18G00.

38500-18G01

Unavailable

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

KEY, BLANK | OPT

37146-33E00

$21.21
