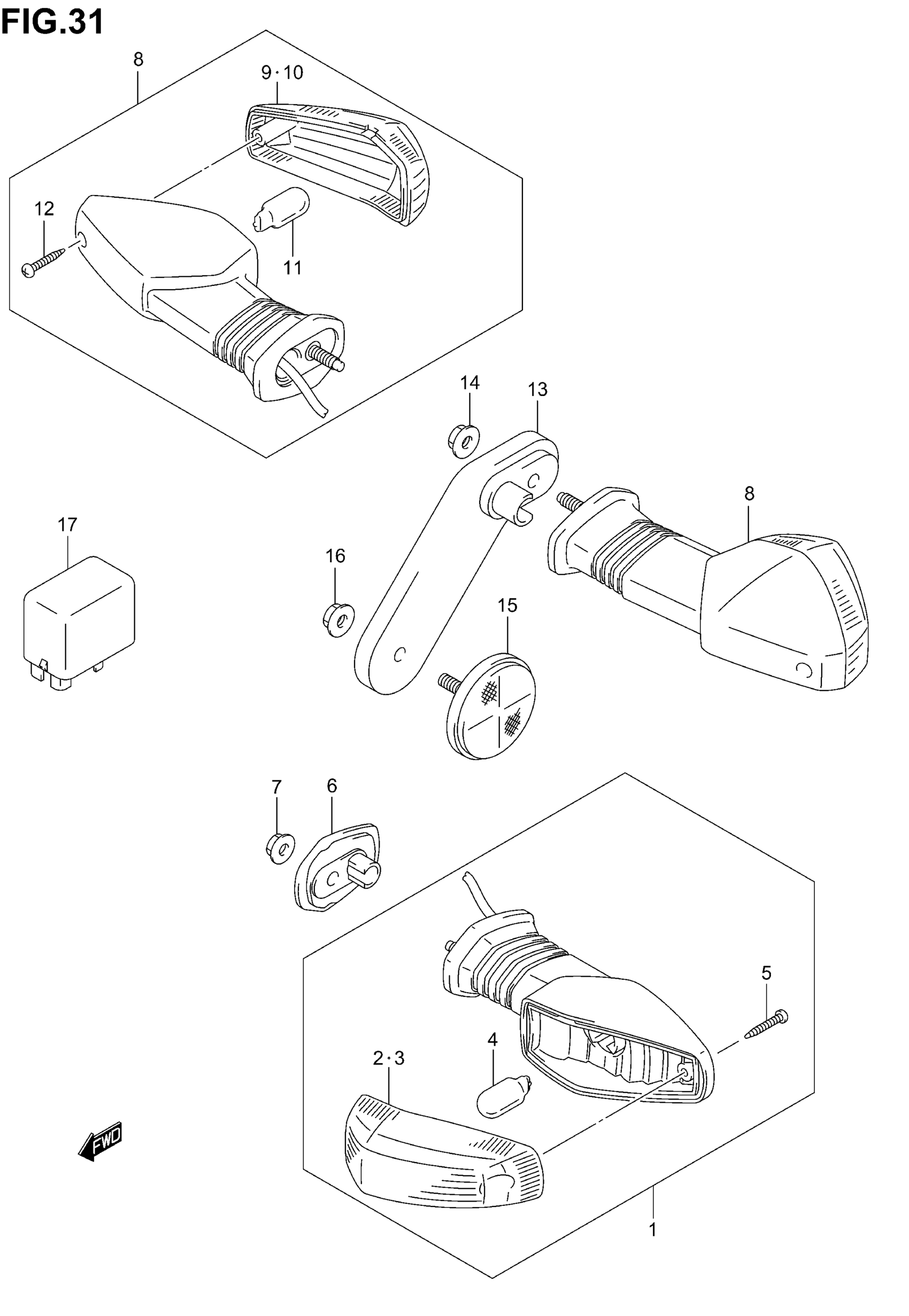

Suzuki GSX-R750 (2005) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-29G10

Unavailable

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-29G10

$117.12

2

LENS, RH

35612-18G01

Unavailable

3

LENS, LH

35632-18G01

Unavailable

4

BULB (12V,18W)

35222-18G00

Unavailable

5

SCREW (3X20)

35725-40511

$1.91

6

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

7

NUT This part replaces 08316-10053.

08316-1005A

$2.19

8

LAMP ASSY, REAR TURN RH

35603-29G40

Unavailable

8

LAMP ASSY, REAR TURN LH | Includes Item(s) 9 - 12

35604-29G40

Unavailable

9

LENS, RH

35632-18G01

Unavailable

10

LENS, LH

35612-18G01

Unavailable

11

BULB (12V,18W)

35222-18G00

Unavailable

12

SCREW (3X20)

35725-40511

$1.91

13

PLATE, REAR TURNSIGNAL, RH

35669-18G00

Unavailable

13

PLATE, REAR TURNSIGNAL, LH

35679-18G00

Unavailable

14

NUT This part replaces 08316-10053.

08316-1005A

$2.19

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

16

NUT This part replaces 08316-10053.

08316-1005A

$2.19

17

RELAY ASSY,TURN This part replaces 38610-07F00.

38610-07F01

Unavailable
