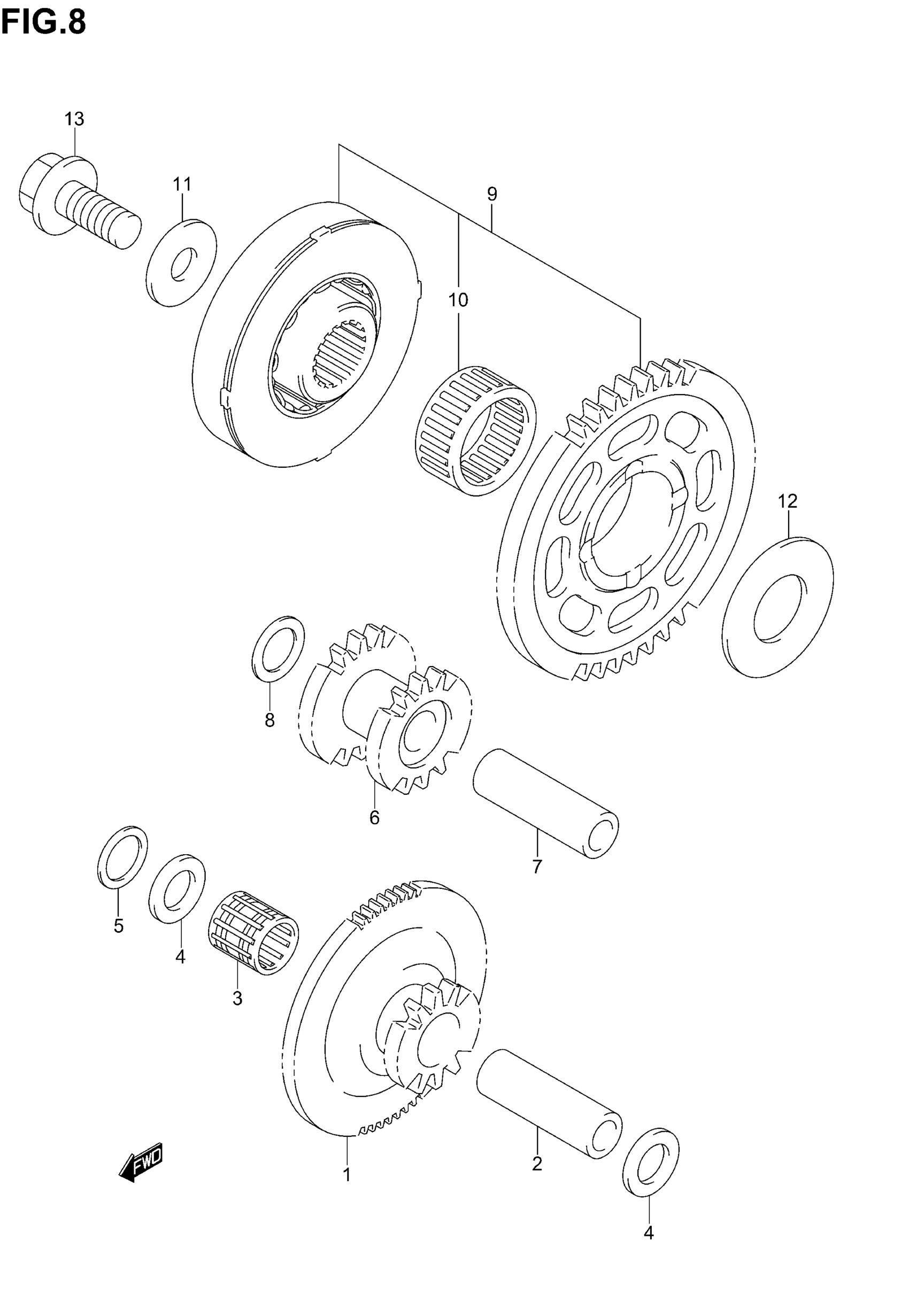

Suzuki GSX-R750 (2005) STARTER CLUTCH * Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-40F00

$90.19

2

PIN

12151-09204

$10.17

3

BEARING (12X16X15.8)

09263-12023

$10.19

4

WASHER, STARTER IDLE NO.1

09181-12167

$2.26

5

WASHER

09164-12021

$2.03

6

GEAR, STARTER IDLE NO.2

12612-40F00

$75.68

7

PIN

12151-09204

$10.17

8

WASHER

09164-12021

$2.03

9

CLUTCH SET, STARTER (NT:44) | Includes Item(s) 10 This part replaces 12600-40830.

12600-40831

$378.35

10

BEARING

09263-26035

$71.72

11

WASHER

08211-10285

$3.49

12

WASHER

08211-20403

$4.32

13

BOLT (10X23)

09103-10189

$4.04
