Description

Price

1

WHEEL, REAR (17M/CXMT5.50) (BLACK)

64111-35F01-019

$1,306.10

2

SPACER,RR HUB BEARING

64731-35F10

$51.42

3

BEARING This part replaces 09262-28043.

09262-28063

$21.63

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

5

DISC,RR BRAKE

69211-18G00

$319.08

6

BOLT

09106-08148

$4.80

7

BRACKET, REAR CALIPER

69721-29G00

Unavailable

8

AXLE, REAR

64711-33E10

$156.75

9

NUT

09141-25001

$23.94

10

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

11

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

12

SPACER, AXLE LH

64751-35F00

$22.92

13

DRUM,RR SPROCKET

64610-35F30

$327.08

14

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

15

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

16

SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER, RR HUB SHOCK

64651-35F10

$11.82

18

SPROCKET, REAR (NT:43)

64511-35F50

$75.85

19

NUT

08319-31107

$2.73

20

TIRE, REAR,180/55 ZR17M/C (73W)(DUNLOP)

65110-30G10

Unavailable

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22

BALANCER, WHEEL NO.1

43222-73H10

$5.82

22

BALANCER, WHEEL NO.2

43224-73H10

$5.50

22

BALANCER, WHEEL NO.3

43226-73H10

$6.42

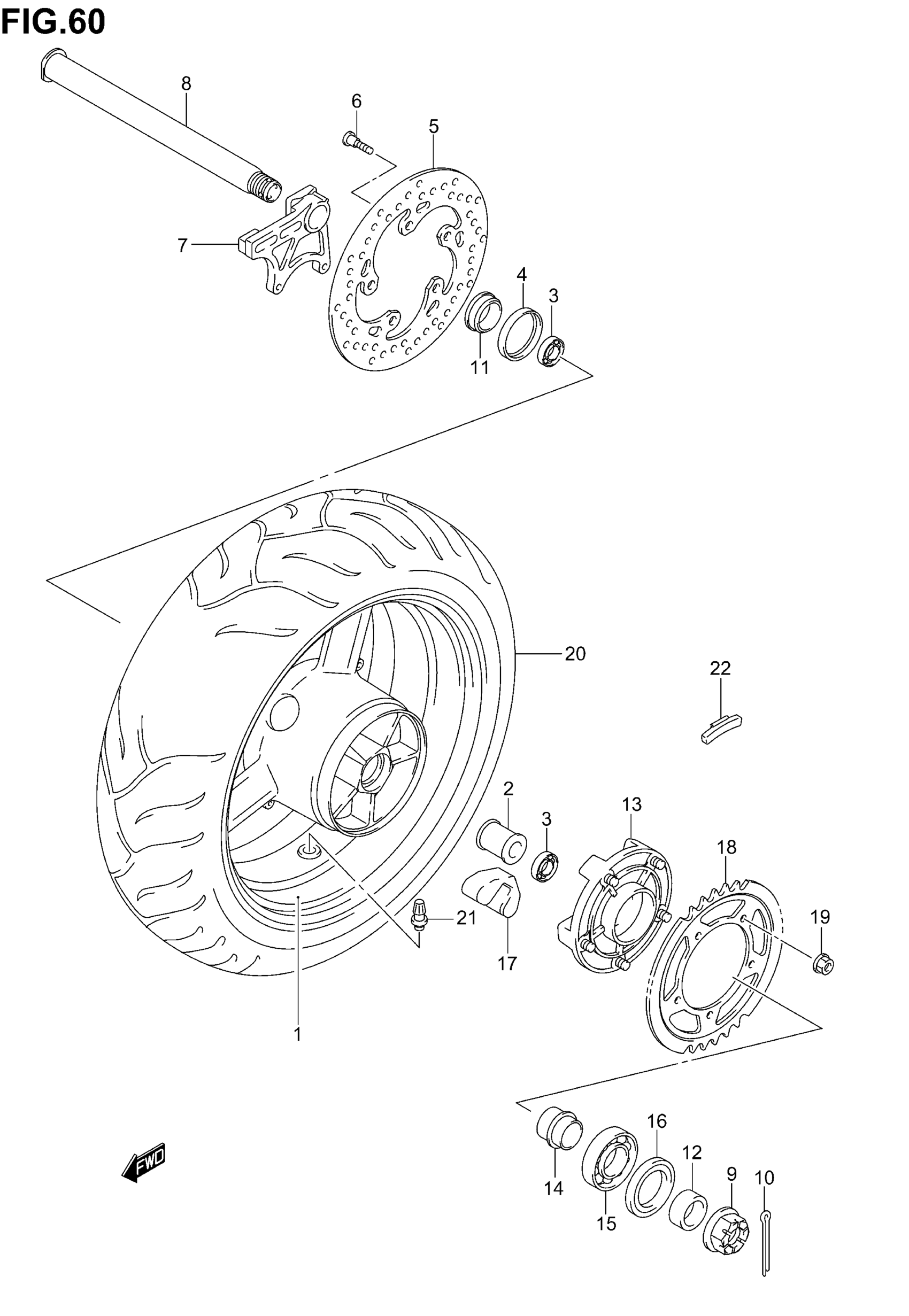

Suzuki GSX-R750 (2005) REAR WHEEL Diagram
