Description

Price

1

PAN, OIL

11511-29G00

$214.61

2

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

3

GASKET (5.8X13X1.2)

09168-06023

$2.35

4

PLUG, OIL DRAIN

09247-14036

$6.17

5

GASKET

09168-14002

$2.26

6

STRAINER ASSY,E This part replaces 16520-29G00.

16520-29G01

$26.32

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

9

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

10

PUMP ASSY,ENG OIL

16400-35F00

$194.98

11

O RING

16491-35F00

$6.22

12

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

13

GEAR, OIL PUMP DRIVE

16321-35F01

$69.38

14

GEAR, OIL PUMP DRIVEN

16331-35F00

$74.08

15

WASHER

09181-10158

$1.97

16

PIN

09261-04009

$1.56

17

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

18

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 19 This part replaces 37820-33D10.

37820-33D11

$25.13

19

BOLT

37822-33D00

$4.35

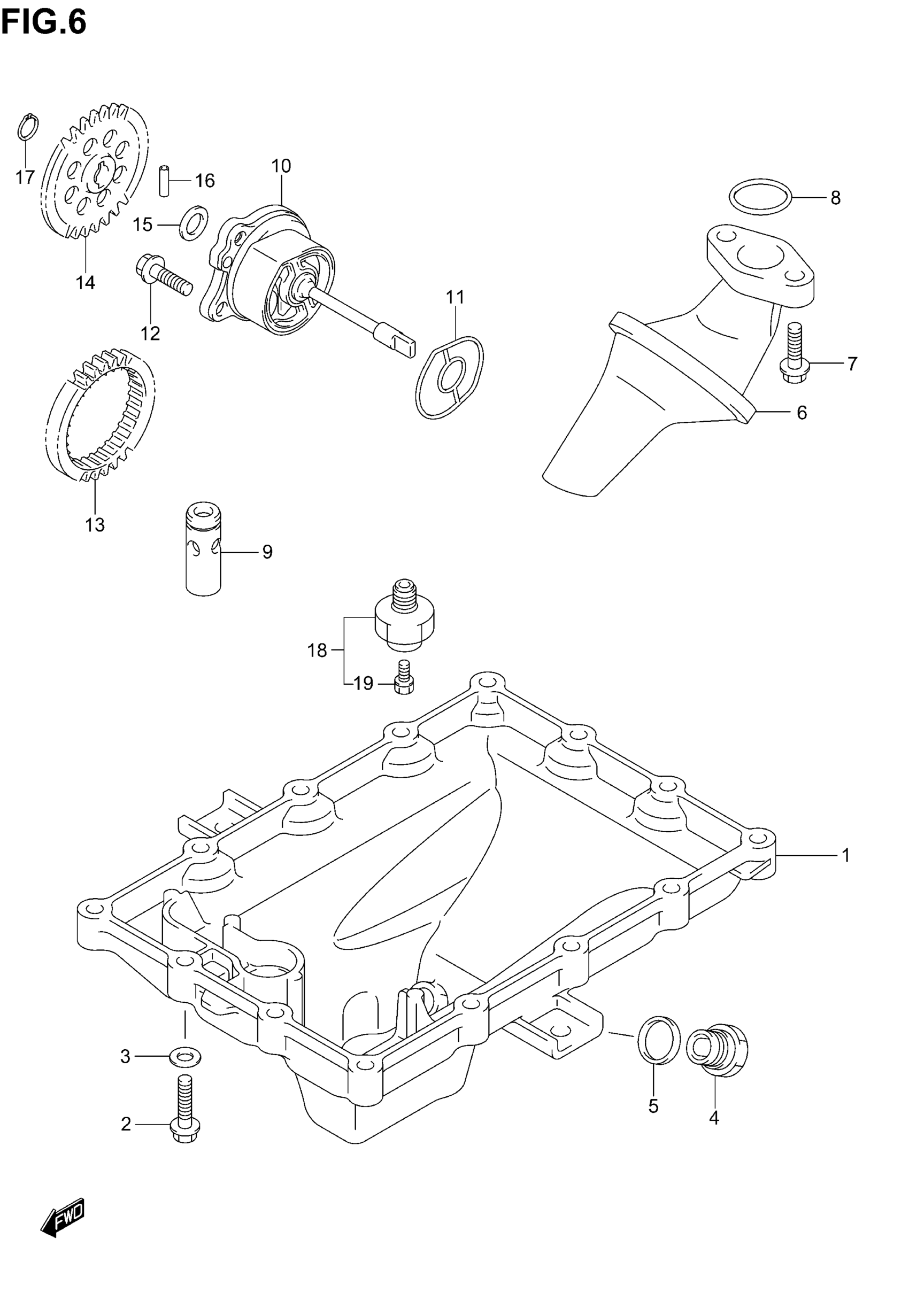

Suzuki GSX-R750 (2005) OIL PAN - OIL PUMP Diagram
