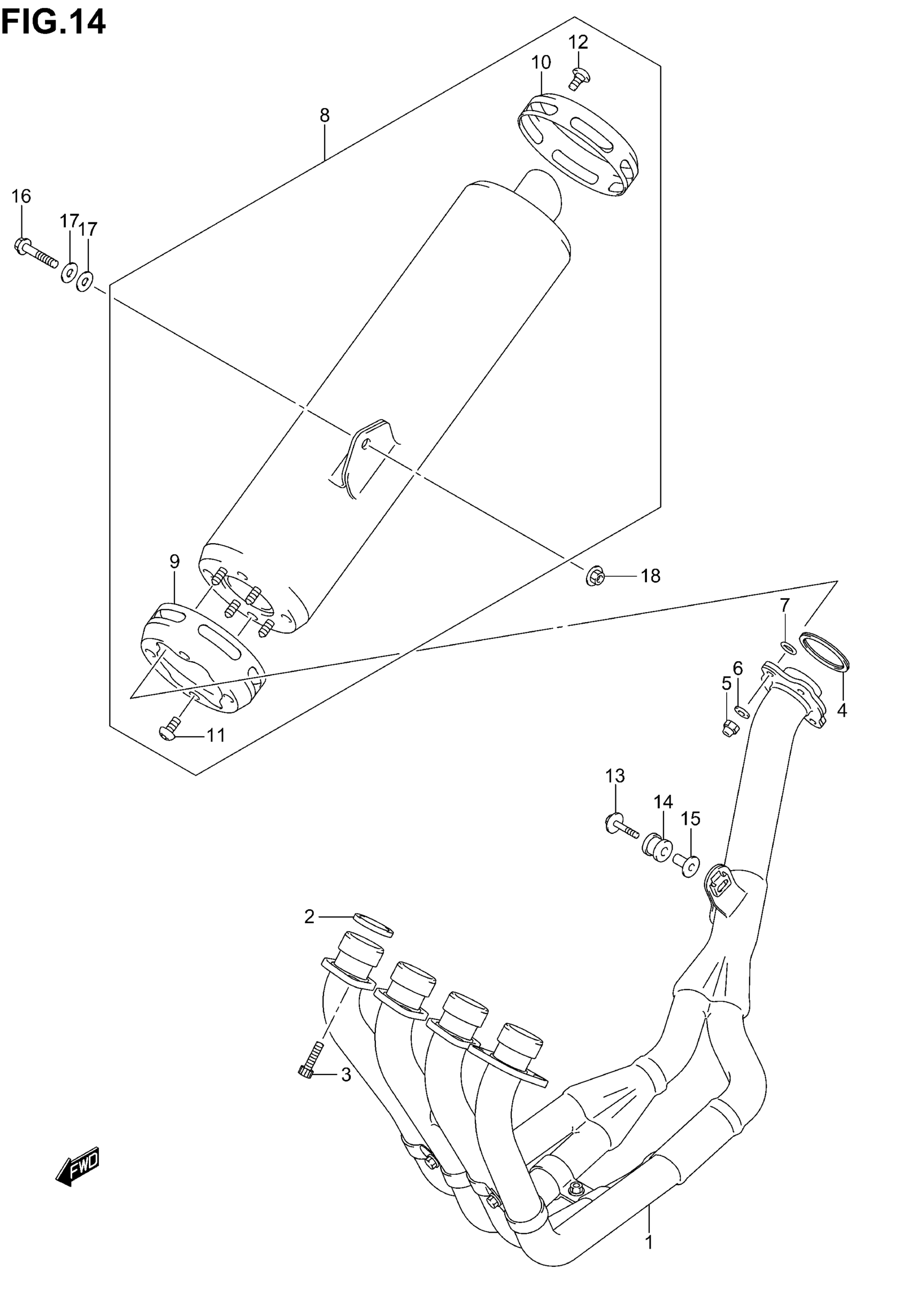

Suzuki GSX-R750 (2005) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-30G00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET

14181-02F00

$6.93

5

NUT

09159-08116

$9.00

6

WASHER

09160-08059

$1.68

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

8

MUFFLER ASSY | Includes Item(s) 9 - 12

14310-30G10-H01

Unavailable

9

COVER, MUFFLER FRONT

14771-29G01

Unavailable

10

COVER, MUFFLER REAR

14781-29G01

Unavailable

11

SCREW, MUFFLER COVER FRONT

14315-29G01

Unavailable

12

SCREW

09139-06078

$2.79

13

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

14

CUSHION

09320-12048

$5.11

15

SPACER

09180-08152

$5.83

16

BOLT (8X40)

09103-08392

$3.62

17

WASHER

09160-08081

$2.56

18

NUT This part replaces 08361-25088.

08361-2508A

$1.97
