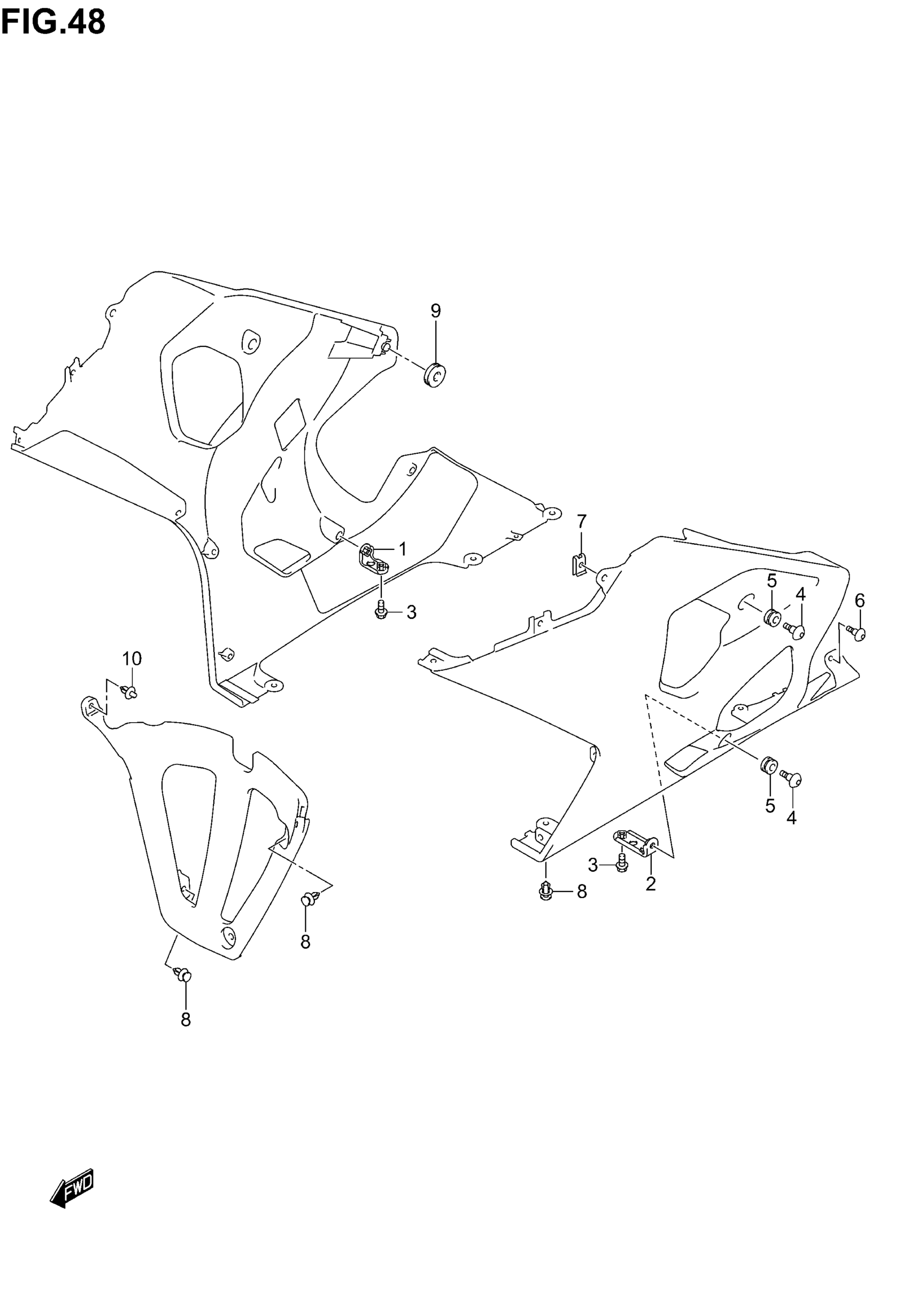

Suzuki GSX-R750 (2005) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, UNDER RH

94533-33E01

$7.97

2

BRACKET, UNDER LH

94534-33E01

$8.43

3

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

4

SCREW, UNDER COWL

09139-06126

$3.75

5

CUSHION

09320-09016

$2.01

6

SCREW, REAR

09139-05064

$2.64

7

NUT COWL

94484-24F00

$3.79

8

CLIP, UNDER COWL

94479-35F00

$5.38

9

CUSHION, REAR

09320-08028

$2.82

10

CLIP, FRONT (BLACK)

09409-06314-5PK

$2.80
