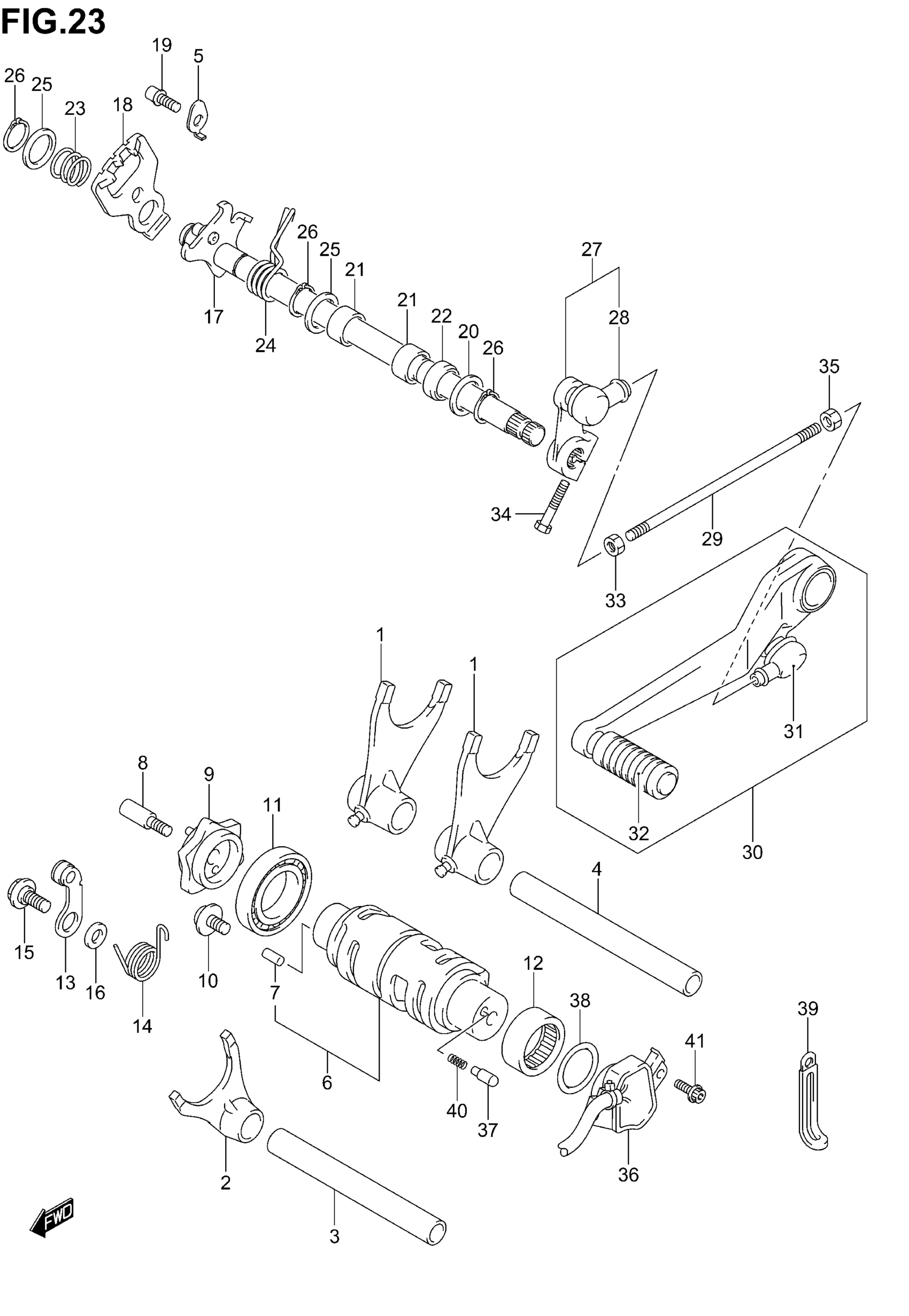

Suzuki GSX-R750 (2005) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-35F10.

25211-35F11

$86.59

2

FORK, GEAR SHIFT NO.3 This part replaces 25231-35F10.

25231-35F11

$105.82

3

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

4

SHAFT, GEAR SHIFT FORK,NO.1

25411-35F00

$29.25

5

RETAINER, GEAR SHIFT FORK

25451-35F00

$6.05

6

CAM,GEAR SHIFT | Includes Item(s) 7

25310-35F00

$256.53

7

PIN (4X13.8)

04221-04089

$1.49

8

BOLT, GEAR SHIFT CAM This part replaces 25312-42F00.

25312-42F01

$7.95

9

PLATE, GEAR SHIFT CAM

25381-13E30

$56.68

10

SCREW, GEAR SHIFT CAM | 6X12

09136-06147

$3.20

11

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$25.54

12

BEARING, GEAR SHIFT | 25X32X12

09263-25018

$21.39

13

STOPPER, SHIFT CAM

25350-35F00

$34.15

14

SPRING, SHIFT CAM STOPPER

25355-03G00

$5.10

15

BOLT, SHIFT CAM (6X14.3)

09111-06041

$2.61

16

WASHER, CAM STOPPER

08211-06141

$1.59

17

SHAFT,GEAR SHIFT

25510-40F00

$114.48

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$4.58

20

WASHER, GEAR SHAFT, LH | 14X29X0.8

09160-14016

$1.93

21

BEARING, GEAR SHAFT | 14X20X12

09263-14027

$13.52

22

SEAL, GEAR SHAFT | 14X22X6

09283-14006

$6.70

23

SPRING, SHIFT RETURN

09440-17009

$1.71

24

SPRING, SHIFT RETURN

09444-20001

$5.24

25

WASHER, GEAR SHAFT, RH | 14X22X1.0

09181-14167

$2.53

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

27

ARM, GEAR SHIFT LINK | Includes Item(s) 28

25520-16G20

$53.35

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

ROD, GEAR SHIFT LINK

25525-05A10

$10.91

30

LEVER ASSY,GEAR | Includes Item(s) 31 - 32 This part replaces 25600-40F10.

25600-40F11

$182.78

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

32

RUBBER, GEAR PEDAL

25652-20C00

$5.44

33

NUT, GEAR SHIFT ROD, LH

09140-06025

$2.05

34

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

35

.NUT

08310-00067

$2.13

36

BASE ASSY, GEAR SHIFT TERM

37730-35F10

$130.38

37

CONTACT, GEAR SHIFT SW

09209-05011

$2.20

38

O RING, GEAR SHIFT | ID:25.7,OD:2.4

09280-26007

$6.52

39

CLAMP (L:45)

09404-06429

$1.83

40

SPRING, GEAR SHIFT SW

09440-04010

$1.54

41

BOLT, GEAR SHIFT SW

09106-05023

$2.92
