2005 Suzuki GSX-R750 Gasket Set Diagram

← All diagrams

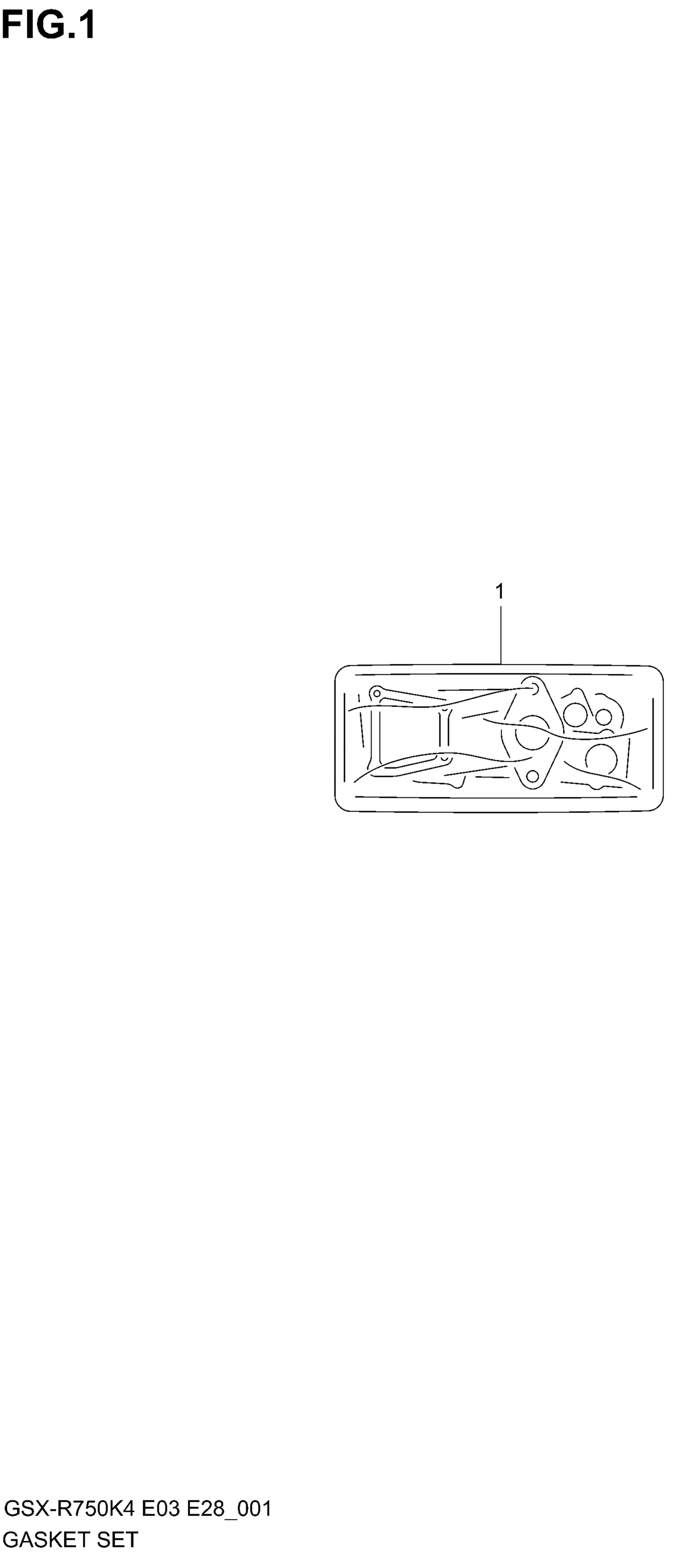

Find the part on the Gasket Set diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R750 Gasket Set Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT; Includes Item(s) 2 - 18 This part replaces 11402-30810.

11402-30811

1
Out of stock

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-35F00

1
Out of stock

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-35F00

1
Out of stock

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-33E00

2
Out of stock

5

GASKET, 2ND AIR PASSAGE | NOT SHOWN

11182-35F00

1
Out of stock

6

.GASKET, CLUTCH COVER | NOT SHOWN This part replaces 11482-40F00.

11482-40F10

1
Out of stock

7

GASKET, MAGNETO COVER | NOT SHOWN

11483-18G00

1
Out of stock

8

GASKET, BREATHER COVER | NOT SHOWN

11484-35F00

1
Out of stock

9

GASKET, STARTER CLUTCH COVER | NOT SHOWN

11491-33E02

1
Out of stock

10

GASKET, STARTER IDLE GEAR CAP | NOT SHOWN

11492-33E00

1
Out of stock

11

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-18G00

1
Out of stock

12

GASKET, MUFFLER JOINT | NOT SHOWN

14181-02F00

1
Out of stock

13

GASKET | NOT SHOWN This part replaces 14181-46E00.

14181-46E10

4
Out of stock

14

O-RING | NOT SHOWN

15201-35F00

1
Out of stock

15

O RING, OIL PUMP | NOT SHOWN

16491-35F00

1
Out of stock

16

WASHER, HEAD COVER | NOT SHOWN

09161-11008

6
Out of stock

17

O RING, OIL STRAINER | NOT SHOWN

09280-19008

1
Out of stock

18

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

1
Out of stock
