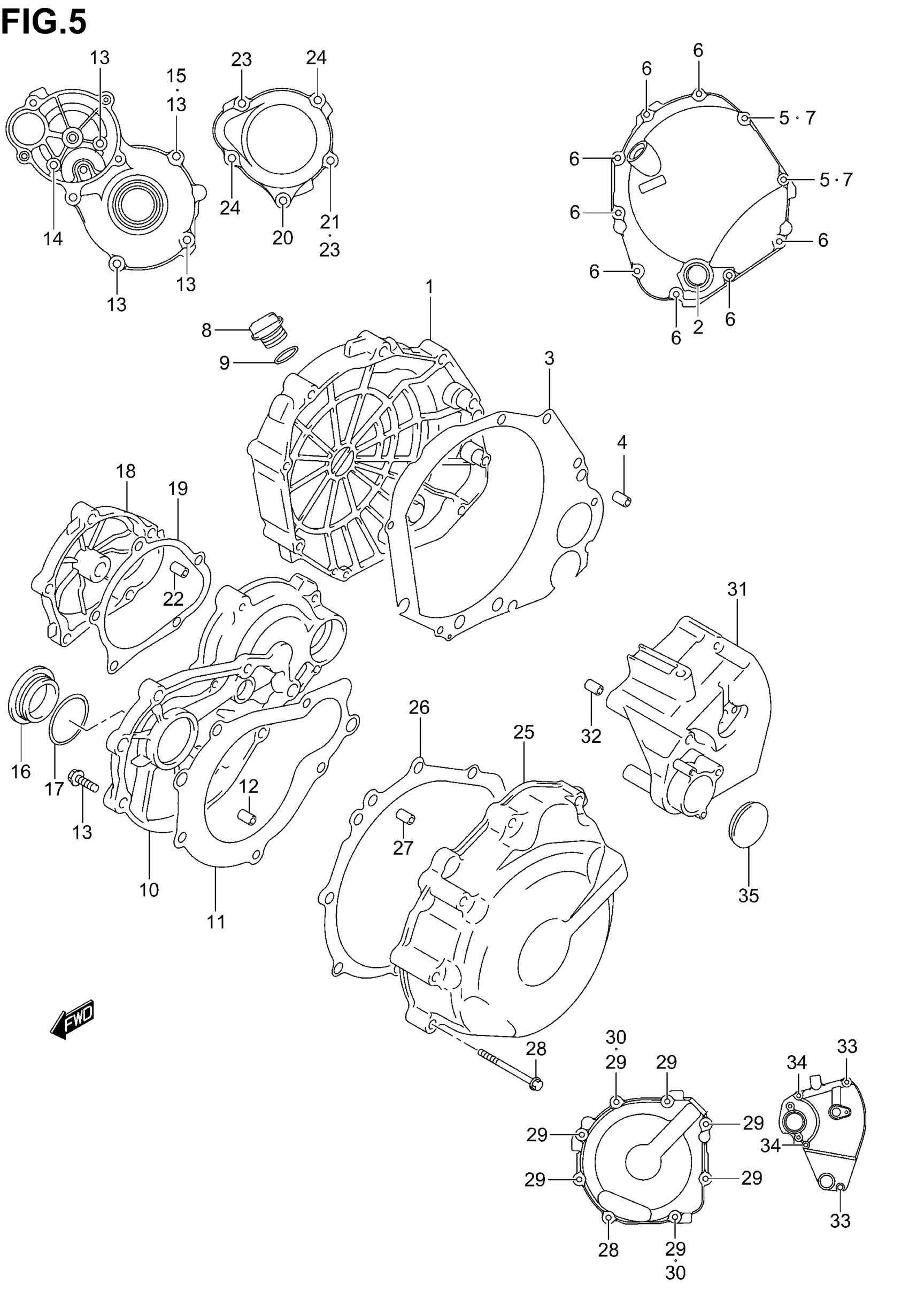

Suzuki GSX-R750 (2005) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-35F00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

.GASKET, CLUTCH COVER This part replaces 11482-40F00.

11482-40F10

$14.36

4

PIN

04211-09189

$1.64

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

7

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

8

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

10

COVER, STARTER CLUTCH

11381-35F01

$197.15

11

GASKET

11491-33E02

$7.99

12

PIN

04211-09149

$1.64

13

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

14

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

15

GASKET (5.8X13X1.2)

09168-06023

$2.01

16

PLUG, SHAFT HOLE

09259-36021

$12.45

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

18

CAP, STARTER IDLE GEAR

11382-33E00

$100.72

19

GASKET

11492-33E00

$6.61

20

BOLT This part replaces 01547-06553.

01547-0655B

$2.74

21

GASKET, BOLT (5.8X13X1.2)

09168-06023

$2.01

22

PIN

04211-09149

$1.64

23

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

24

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

25

COVER, MAGNETO | MODEL K4 This part replaces 11351-18G01.

11351-18G10

Unavailable

25

COVER, MAGNETO | MODEL K5

11351-18G10

Unavailable

26

GASKET

11483-18G00

$10.13

27

PIN

04211-09149

$1.64

28

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

29

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

30

GASKET (5.8X13X1.2)

09168-06023

$2.01

31

COVER, ENGINE SPROCKET

11361-35F10

$328.28

32

PIN

04211-09129

$1.64

33

BOLT This part replaces 01547-06653.

01547-0665B

$2.92

34

.BOLT This part replaces 01547-06953.

01547-0695B

$3.04

35

CAP, CLUTCH RELEASE ADJUST

09250-30003

$3.52
