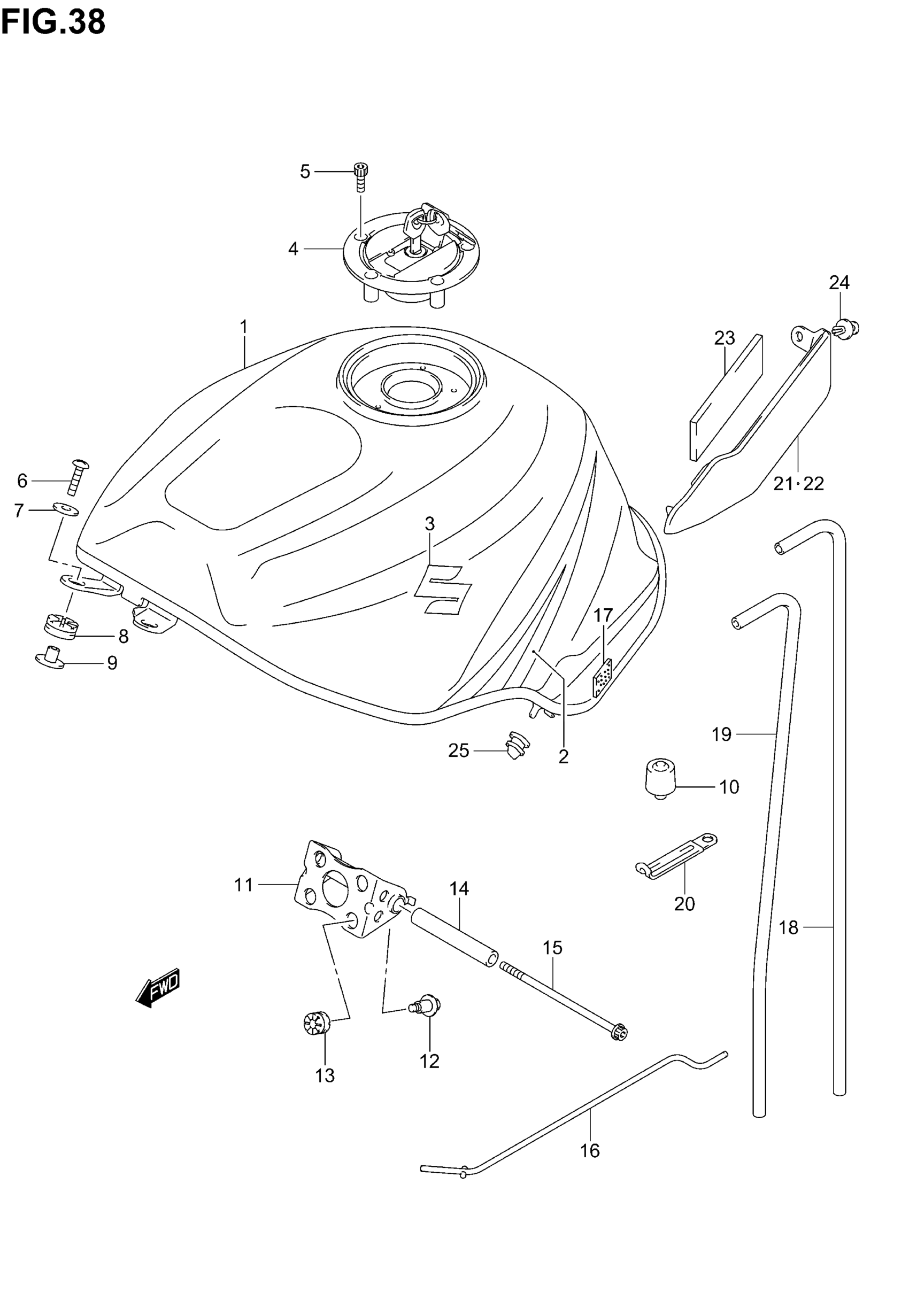

Suzuki GSX-R750 (2005) FUEL TANK (MODEL K4) Diagram

TANK ASSY, FUEL (BLUE) | FOR LR5

44100-30G00-YBA

Unavailable

TANK ASSY, FUEL (YELLOW) | FOR AGN

44100-30G00-YEC

Unavailable

TANK ASSY, FUEL (GRAY) | FOR AGR

44100-30G00-YU8

Unavailable

TANK ASSY, FUEL (BLUE) | E33 FOR LR5

44100-30G20-YBA

Unavailable

TANK ASSY, FUEL (YELLOW) | E33 FOR AGN

44100-30G20-YEC

Unavailable

TANK ASSY, FUEL (GRAY) | E33 FOR AGR; Includes Item(s) 2 - 3

44100-30G20-YU8

Unavailable

TAPE SET | FOR YBA

68110-30G00-AWW

Unavailable

TAPE SET | FOR YEC

68110-30G00-ATP

Unavailable

TAPE SET | FOR YU8

68110-30G00-ATR

Unavailable

EMBLEM,FUEL TAN | FOR YBA This part replaces 68111-18G00-ABF.

68111-18G01-0AT

$14.26

EMBLEM,FUEL TAN | FOR YEC This part replaces 68111-18G00-ATF.

68111-18G01-YGP

Unavailable

EMBLEM,FUEL TAN | FOR YU8 This part replaces 68111-18G00-ANA.

68111-18G01-0AT

$14.26

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

BOLT

09106-05017

$2.83

SCREW, FRONT

09139-06029

$5.36

WASHER

09160-06054

$1.62

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

SPACER, FRONT

44512-16G00

$7.44

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

BRACKET, TANK

44530-29G00

Unavailable

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$4.03

CUSHION

09320-08071

$3.25

SPACER

44561-18G00

$16.96

BOLT

09106-06103

$4.40

STAY, FUEL TANK

44574-35F00

$15.16

FASTENER

44572-13G00

$11.07

HOSE,WATER DRAI This part replaces 44423-16G01.

44423-16G02

$13.41

HOSE,FUEL TANK This part replaces 44424-18G00.

44424-18G01

$10.62

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

COVER, TANK RH (BLACK)

44171-29G00-291

$43.27

COVER, TANK LH (BLACK)

44181-29G00-291

$42.45

CUSHION

44277-29G00

$5.11

CLIP (GRAY)

09409-08314-6GS

$2.53

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56
