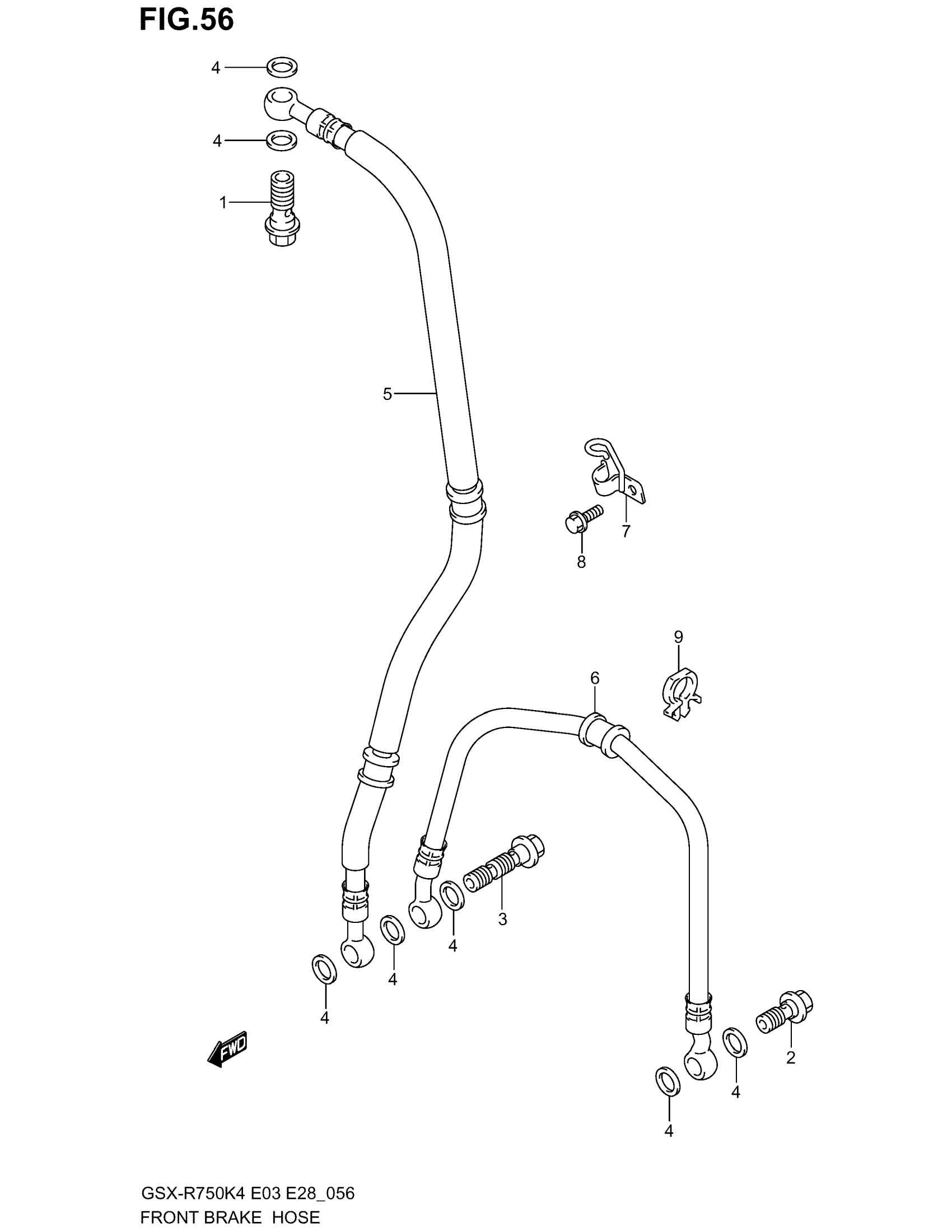

Suzuki GSX-R750 (2005) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION This part replaces 09360-10044.

09360-10064

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

NO DESCRIPTION AVAILABLE This part replaces 59480-29G00.

59480-29G01

Unavailable

6

HOSE,FRONT BRAK This part replaces 59240-29G00.

59240-29G01

$59.32

7

CLAMP, BRAKE HOSE

59260-40F00

$20.10

8

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

9

CLAMP, BRAKE HOSE NO.2

09403-14304

$3.21
