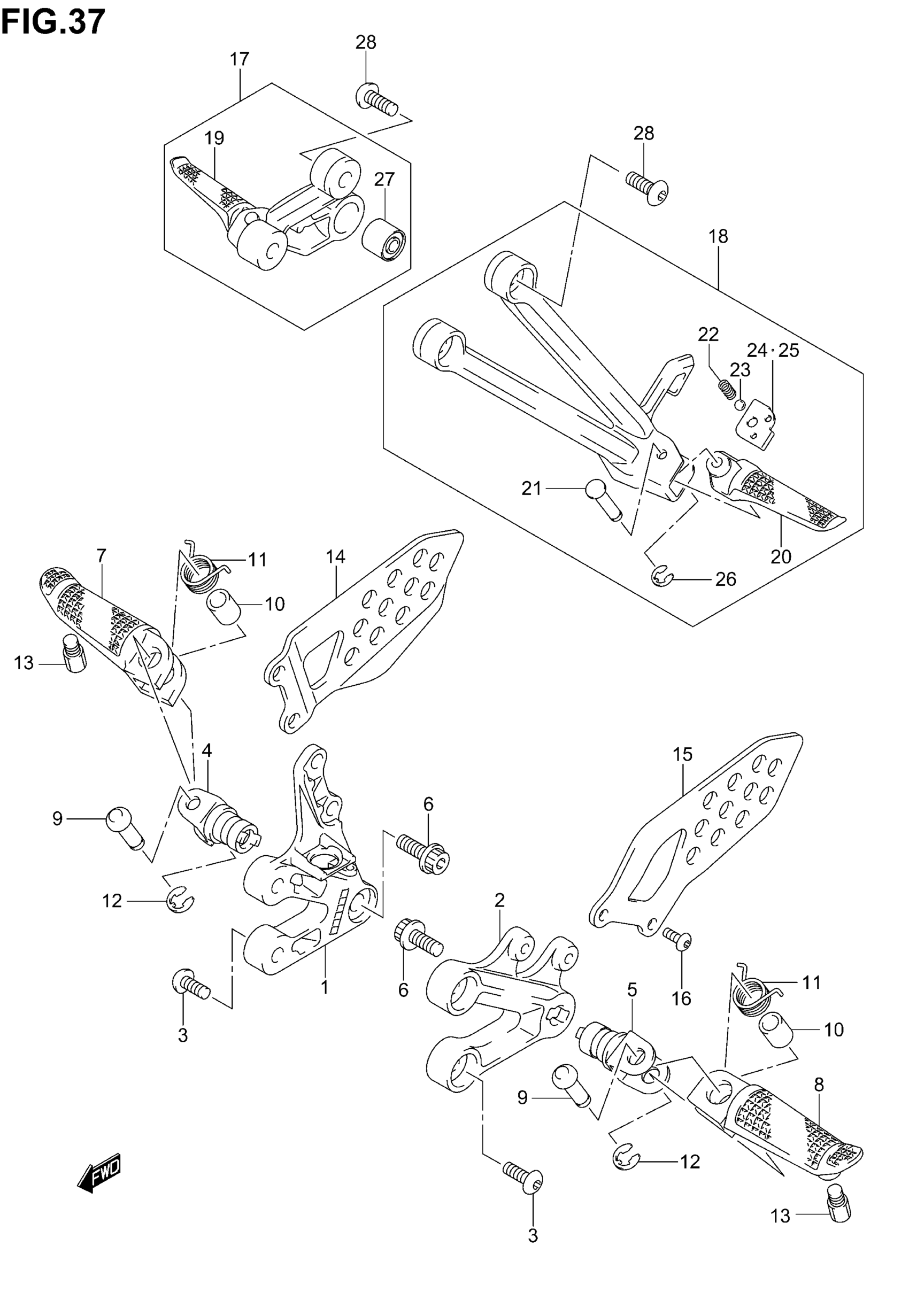

Suzuki GSX-R750 (2005) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-29G00

Unavailable

2

BRACKET, FRONT FOOTREST LH

43521-29G00

$117.30

3

BOLT, BRACKET

09106-08167

$3.35

4

HOLDER, FOOTREST RH

43530-35F10

$52.33

5

HOLDER, FOOTREST LH

43540-35F10

$52.33

6

BOLT, HOLDER

09106-10064

$4.90

7

BAR, FRONT FOOTREST RH

43516-35F00

$61.85

8

BAR, FRONT FOOTREST LH

43526-35F00

$61.85

9

PIN

09208-08014

$4.32

10

SPACER

09180-08149

$5.58

11

SPRING

09448-18022

$3.79

12

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

13

.BOLT,BANK SENSOR

43576-07D01

$8.85

14

GUARD, FOOTREST RH

43571-29G00

Unavailable

15

GUARD, FOOTREST LH

43576-29G00

Unavailable

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.98

17

FOOTREST ASSY, PILLION RH

43600-29G00

Unavailable

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 27

43700-29G00

Unavailable

19

BAR, PILLION RH

43611-35F01

$64.30

20

BAR, PILLION LH

43621-35F01

$61.93

21

PIN

09208-06007

$3.29

22

SPRING

09440-05005

$1.58

23

BALL

06111-07004

$1.49

24

PLATE, RH

43816-33E21

$10.41

25

PLATE, LH

43826-33E22

$10.41

26

E RING This part replaces 08332-11043.

08332-1104A

$1.49

27

BUSH, MUFFLER SUPPORT

09319-08046

Unavailable

28

BOLT, BRACKET

09106-08150

$3.42
