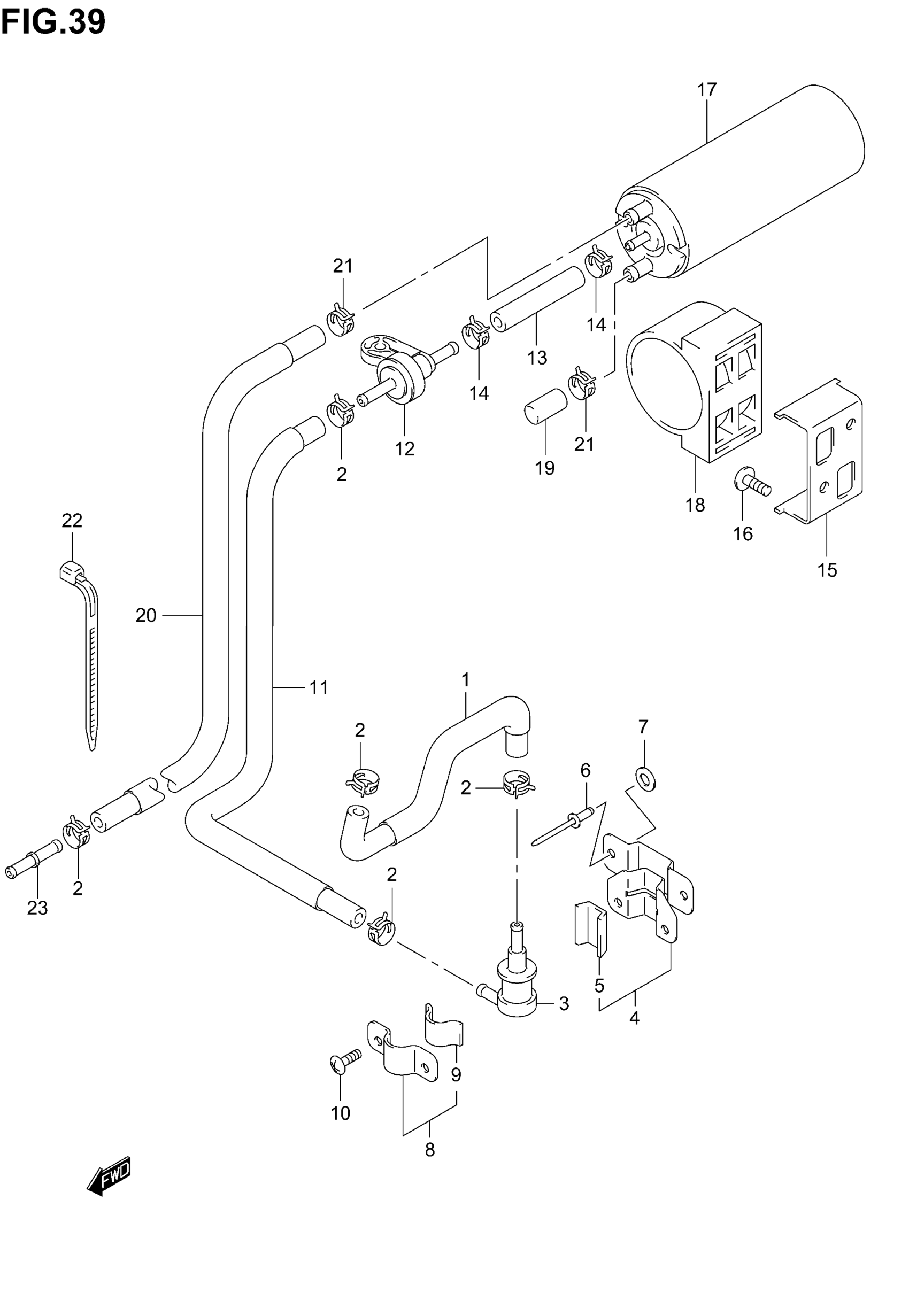

Suzuki GSX-R750 (2005) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE

44434-29G00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE, BREATHER VALVE | Includes Item(s) 5

44890-18G00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

RIVET

09229-04038

$1.49

7

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

11

HOSE, VALVE & 2 WAY

44435-29G00

Unavailable

12

VALVE, 2 WAY

44240-24F00

$64.68

13

HOSE | L:600!50

09355-54116-600

$12.06

14

CLIP

09401-11413

$2.26

15

BRACKET, CANISTER

44881-18G00

Unavailable

16

SCREW

09139-06055

$1.49

17

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

18

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

19

CAP

09251-07003

$2.53

20

HOSE, CANISTER PURGE

44436-29G00

Unavailable

21

CLIP

09401-12404

$2.34

22

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

23

JOINT, PURGE HOSE

09364-06009

Unavailable
