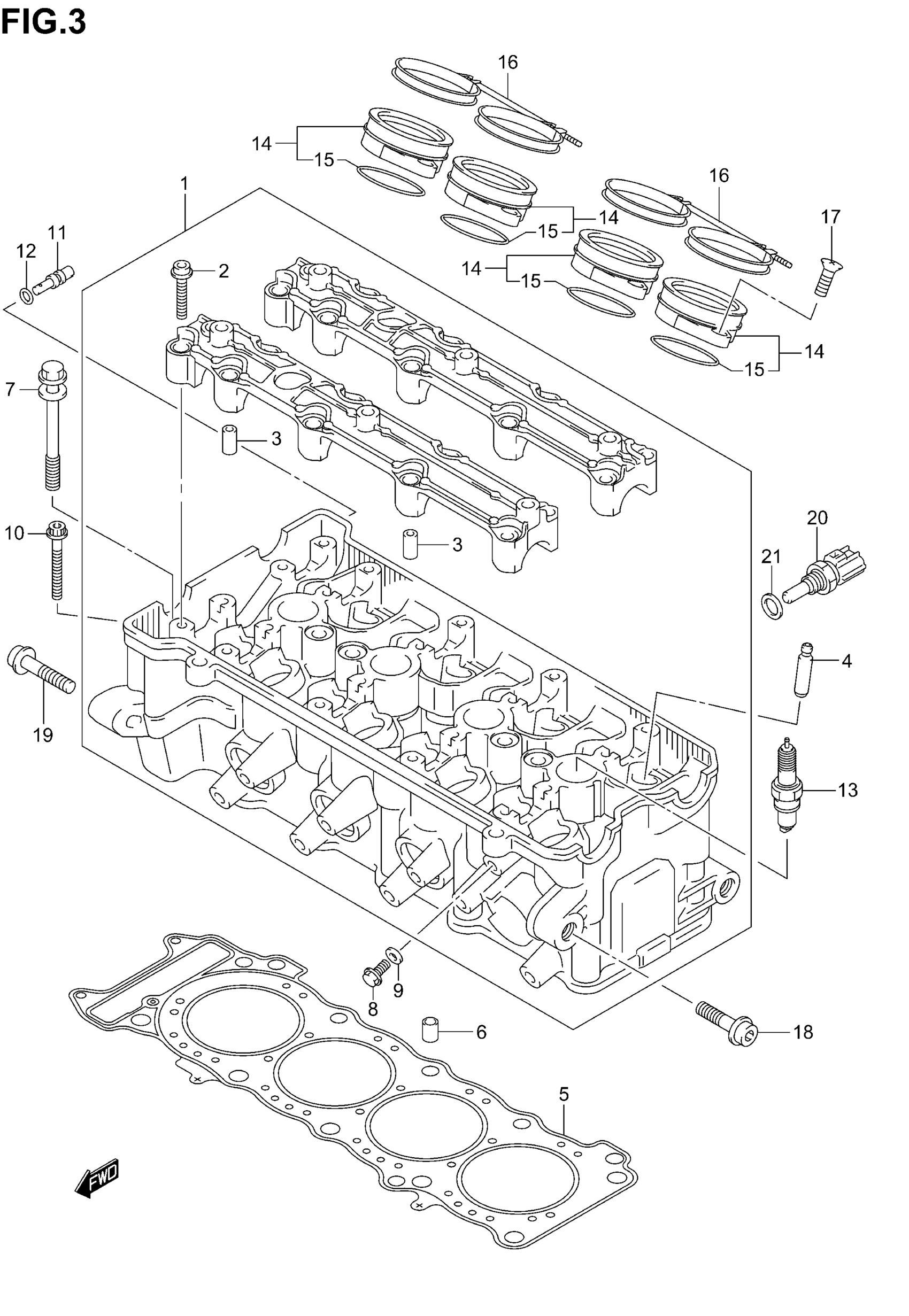

Suzuki GSX-R750 (2005) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-30G00

Unavailable

2

BOLT

09103-06266

$2.12

3

PIN

09206-08007

$2.60

4

GUIDE, VALVE (OS 0.5) | OPT

11115-29G70

$32.87

5

GASKET, CYLINDER HEAD

11141-35F00

$89.92

6

PIN

04211-11169

$1.78

7

BOLT (10X105)

11117-30G00

$9.31

8

BOLT, OIL GALLERY

09103-06222

$2.26

9

GASKET

09168-06023

$2.35

10

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.70

11

JET, OIL

09493-80005

$16.25

12

O RING

09280-04004

$1.91

13

PLUG SPARK (CR9E)

09482-00458

$6.47

13

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

13

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

13

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

13

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

13

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

14

PIPE, INTAKE | Includes Item(s) 15

13101-30G00

Unavailable

15

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

16

CLAMP, INTAKE PIPE | MODEL K4 This part replaces 13170-30G00.

13170-30G01

Unavailable

16

CLAMP, INTAKE PIPE | MODEL K5

13170-30G01

Unavailable

17

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

18

BOLT, ENG MOUNTING HEAD (10X45)

09106-10069

$4.24

19

BOLT, ENG MOUNTING HEAD (10X55)

09106-10070

$4.24

20

SENSOR, WATER TEMPERATURE

13650-10G00

$87.24

21

GASKET

09168-12017

$1.95
