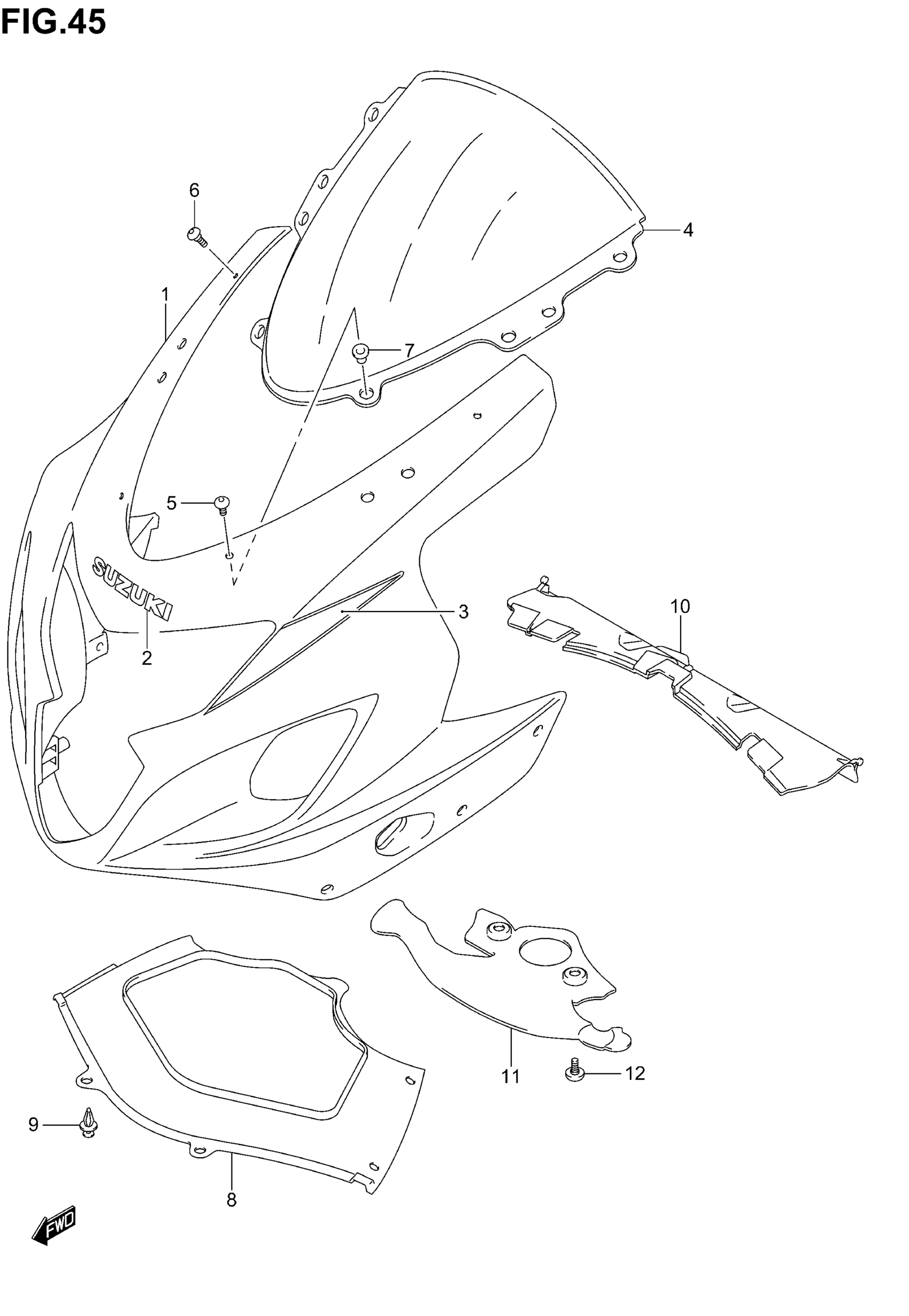

Suzuki GSX-R750 (2005) COWLING BODY (MODEL K4) Diagram

#

Description
Price

1

COWLING, BODY (BLUE) | FOR LR5

94401-30G00-YBA

Unavailable

1

COWLING, BODY (YELLOW) | FOR AGN

94401-30G00-YEC

Unavailable

1

COWLING, BODY (GRAY) | FOR AGR; Includes Item(s) 2 - 3

94401-30G00-YU8

Unavailable

2

EMBLEM (BLACK) | FOR YEC

68281-29G00-019

Unavailable

2

EMBLEM,"SUZUKI" | FOR YU8,YBA This part replaces 68281-29G00-YD8.

68281-29G01-YD8

Unavailable

3

TAPE SET | FOR YBA

68280-30G00-LR5

Unavailable

3

TAPE SET | FOR YEC

68280-30G00-AGN

Unavailable

3

TAPE SET | FOR YU8

68280-30G00-ATT

Unavailable

4

WINDSCREEN

94611-29G00

Unavailable

5

SCREW, FRONT

09125-05133

$2.19

6

SCREW, REAR

09125-05134

$2.22

7

NUT

09159-05019

$7.14

8

COVER, BODY COWL This part replaces 94419-29G00.

94419-29G01

$63.47

9

CLIP (BLACK)

09409-06314-5PK

$2.78

10

COVER, COWL FRONT LOWER

94457-29G00

Unavailable

11

COVER, LOWER BRACKET

94458-29G00

Unavailable

12

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
