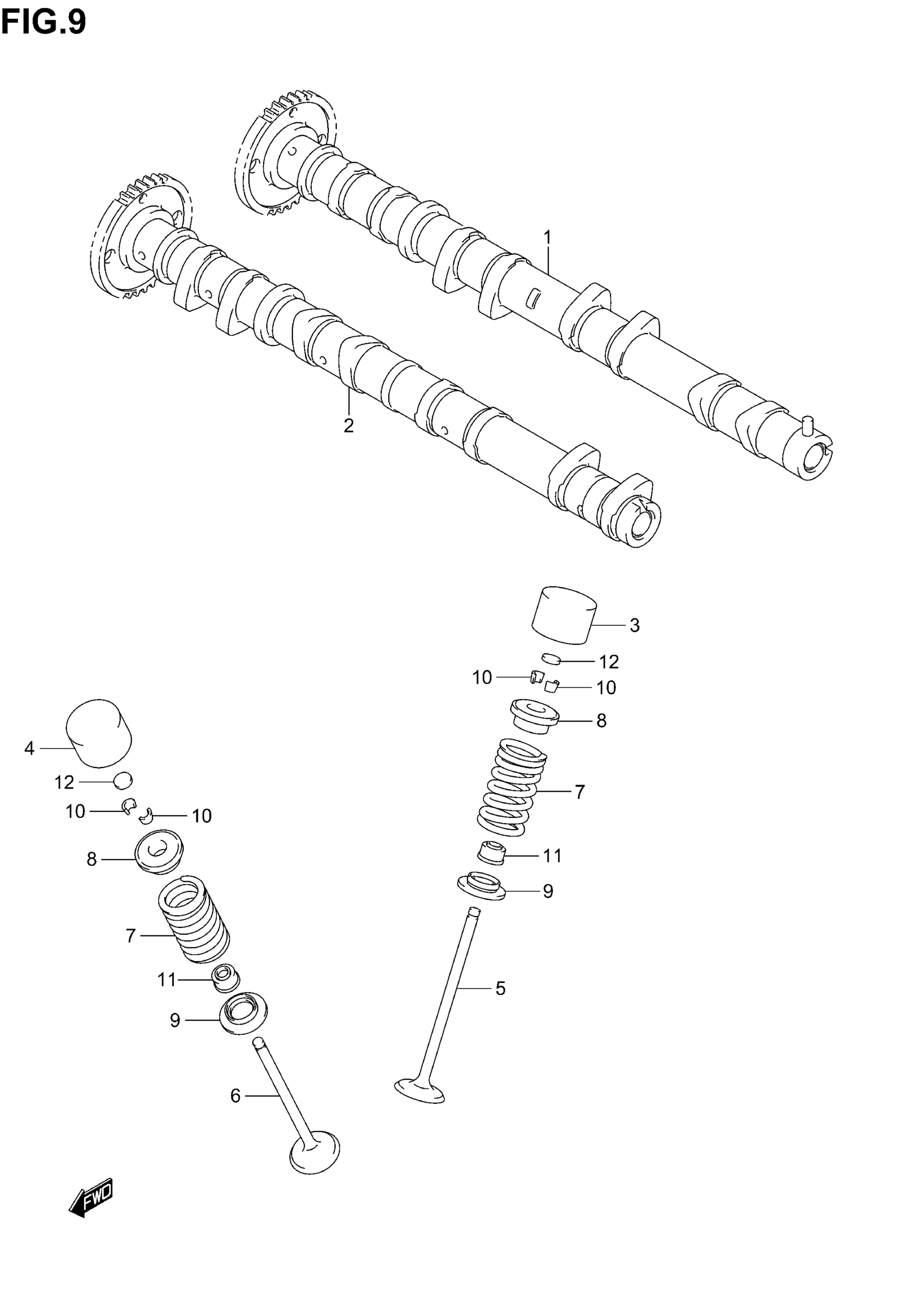

Suzuki GSX-R750 (2005) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12710-30G00

Unavailable

2

CAM SHAFT, EXHAUST

12720-30G00

Unavailable

3

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

4

TAPPET, EXHAUST

12891-35F00

$61.70

5

VALVE, INTAKE

12911-30G00

$102.26

6

VALVE, EXHAUST

12912-30G00

$146.38

7

SPRING, VALVE

12921-30G00

$16.63

8

RETAINER, VALVE SPRING

12931-29G00

$15.16

9

SEAT, VALVE SPRING

12933-29G00

$7.07

10

COTTER, VALVE

12932-32C00

$2.03

11

OIL SEAL

09289-04002

$6.49

12

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

12

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

12

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

12

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

12

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

12

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

12

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

12

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

12

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

12

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

12

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

12

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

12

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

12

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

12

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

12

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

12

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

12

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

12

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

12

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

13

SHIM SET, TAPPET T:1.20,1.25...2.95,3.00 (5PCS. EACH) & NO.14 | OPT NOT SHOWN; Includes Item(s) 14

12800-05830

$1,211.58

14

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

Unavailable
