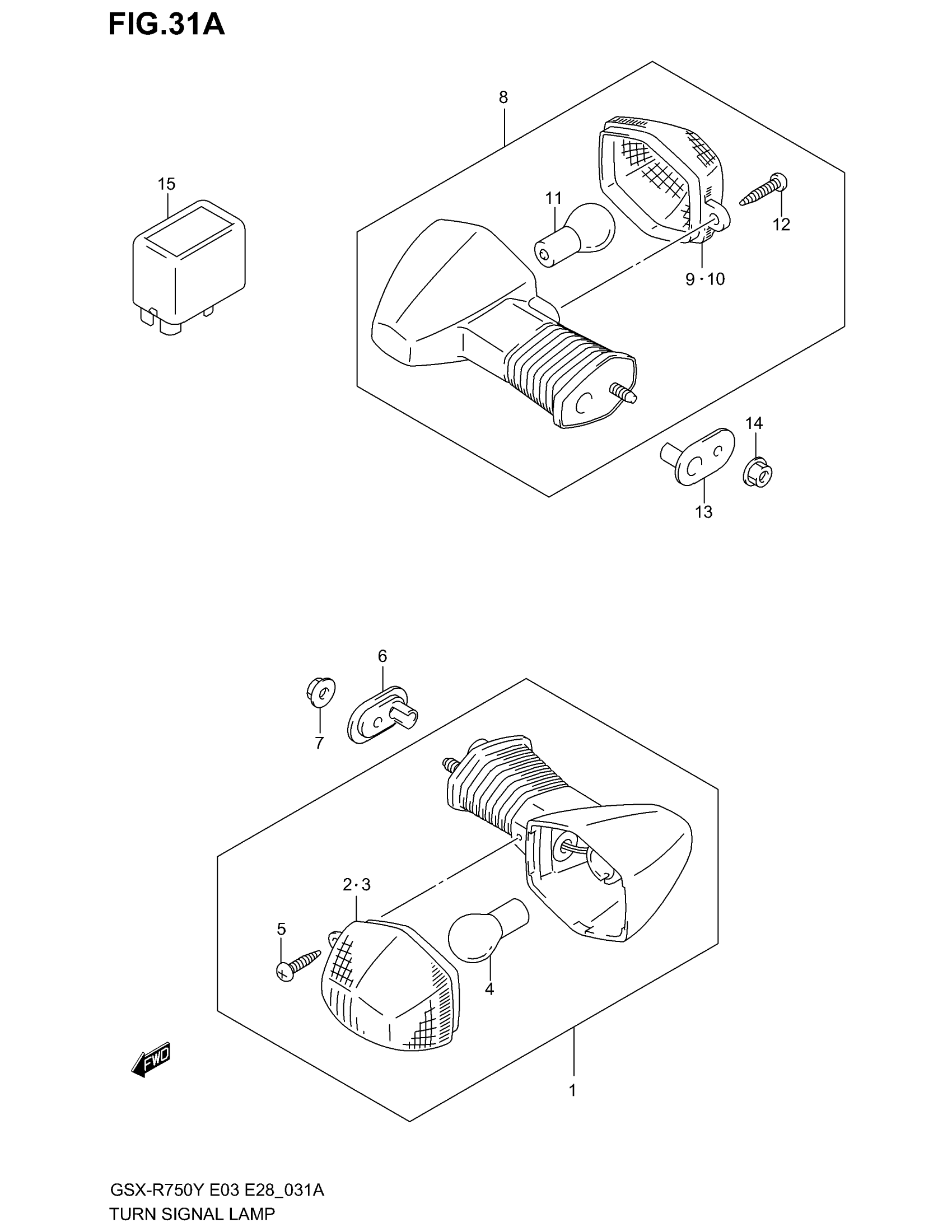

Suzuki GSX-R750 (2003) TURN SIGNAL LAMP (MODEL K2/K3) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-29F10

$106.50

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-29F10

$114.82

2

LENS, RH

35612-31F30

$15.68

3

LENS, LH

35632-31F30

$16.23

4

BULB (12V,21W)

09471-12045

$2.95

5

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

7

NUT This part replaces 08316-10053.

08316-1005A

$2.19

8

LAMP ASSY, REAR TURN RH

35603-29F30

Unavailable

8

LAMP ASSY, REAR TURN LH | Includes Item(s) 9 - 12

35604-29F30

Unavailable

9

LENS, RH

35632-31F30

$16.23

10

LENS, LH

35612-31F30

$15.68

11

BULB (12V,21W)

09471-12045

$2.95

12

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

13

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

14

NUT This part replaces 08316-10053.

08316-1005A

$2.19

15

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
