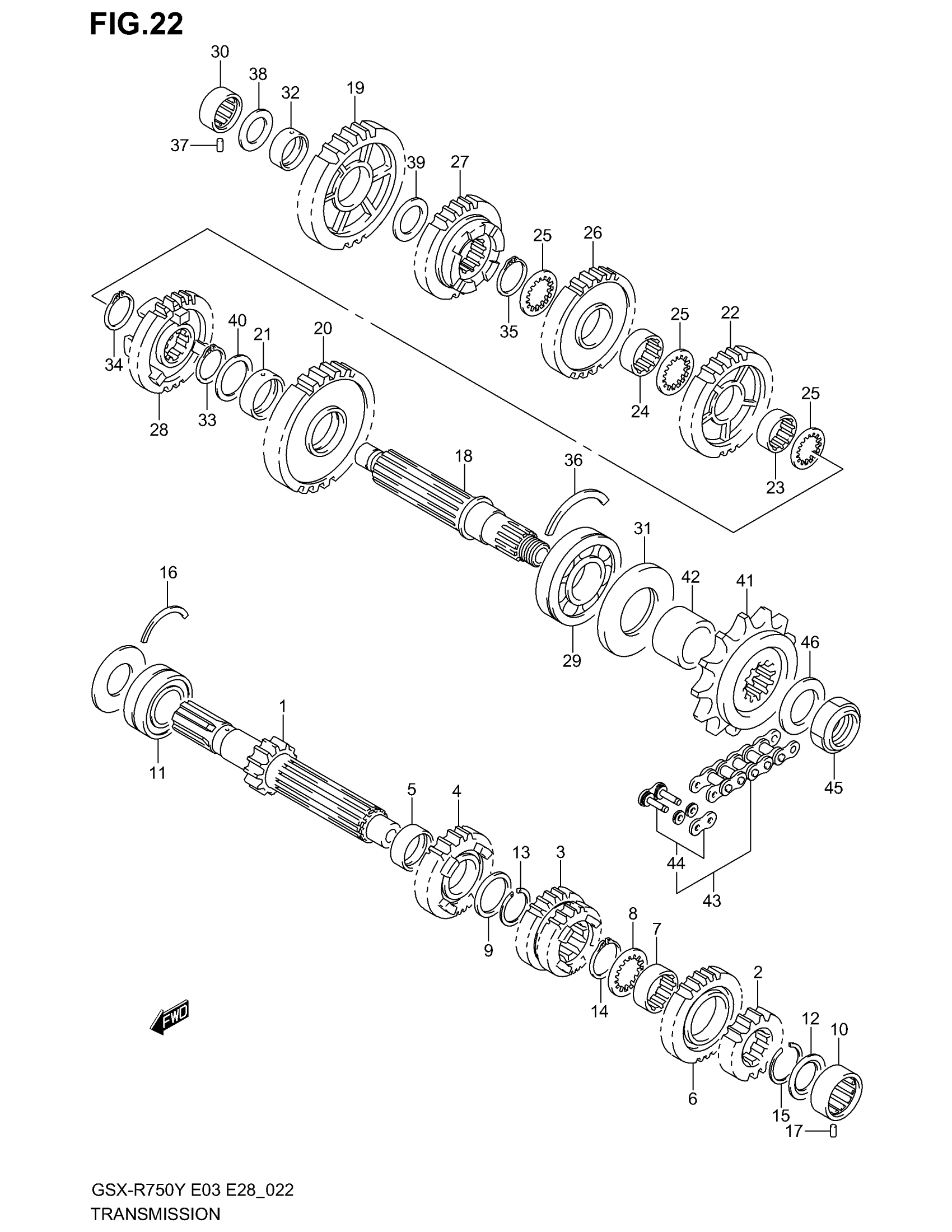

Suzuki GSX-R750 (2003) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR,NT:1 This part replaces 24120-35F00.

24120-35F10

$304.05

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$117.48

3

GEAR,3RD & 4TH DRIVE This part replaces 24231-35F00.

24231-35F20

$142.07

4

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-35F00.

24251-35F21

$161.35

5

BUSH 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:22) This part replaces 24261-35F00.

24261-35F02

$158.33

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$28.62

8

WASHER, 6TH DRIVE

09167-27003

$6.80

9

WASHER, 5TH DRIVE | 27X36X2.5

09181-27014

$6.32

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

$42.65

11

BEARING, CNTR RH | 25X52X20.6

09267-25013

$106.33

12

SEAL, OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP, 5TH DRIVE

09380-27006

$2.73

14

CIRCLIP, 6TH DRIVE

09380-27006

$2.73

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.70

16

C RING, CNTR RH

09390-58001

$3.42

17

PIN, CNTR LH

09261-06003

$1.49

18

SHAFT, DRIVE This part replaces 24131-35F00.

24131-35F01

$316.32

19

GEAR,1ST DRIVEN (NT:39) This part replaces 24311-35F00.

24311-35F20

$160.78

20

GEAR, 2ND DRIVEN (NT:39) | MODEL Y/K1 This part replaces 24321-35F00.

24321-35F01

Unavailable

20

GEAR, 2ND DRIVEN (NT:39) | MODEL K2/K3

24321-35F01

Unavailable

21

BUSH, 2ND DRIVEN

24322-35F00

$20.63

22

GEAR, 3RD DRIVEN (NT:37)

24331-35F00

Unavailable

23

BUSH, 3RD DRIVEN

24332-35F00

$28.62

24

BUSH, 4TH DRIVEN GEAR

24332-35F00

$28.62

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR, 4TH DRIVEN (NT:29)

24341-35F00

Unavailable

27

GEAR, 5TH DRIVEN (NT:30)

24351-35F00

Unavailable

28

GEAR, 6TH DRIVEN (NT:29)

24361-35F00

Unavailable

29

BEARING, DRIVE SHAFT, LH | 28X70X18

09262-28025

$150.62

30

BEARING, DRIVE SHAFT, RH | 20X34X13.5

09263-20087

$42.65

31

SEAL, DRIVE SHAFT,OIL | 36X70X6

09283-36008

$21.28

32

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

$14.82

33

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

34

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

35

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

36

C RING, DRIVE SHAFT, LH

09390-70001

$9.77

37

PIN, DRIVE SHAFT, RH

09261-06003

$1.49

38

WASHER, 1ST DRIVEN RH | 20X34X1.0

09181-20251

$2.79

39

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

$3.12

40

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$3.68

41

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$78.92

42

SPACER,ENGINE SPROCKET This part replaces 27531-35F00.

27531-35F01

$30.85

43

CHAIN ASSY (RK525R0Z5,110L) | Includes Item(s) 44 This part replaces 27600-33E01-110.

27600-33E20-110

$266.08

44

JOINT SET

27620-33E01

Unavailable

45

NUT, ENGINE SPROCKET

09159-20004

$15.67

46

WASHER (25X41X3)

09160-25009

$5.36
