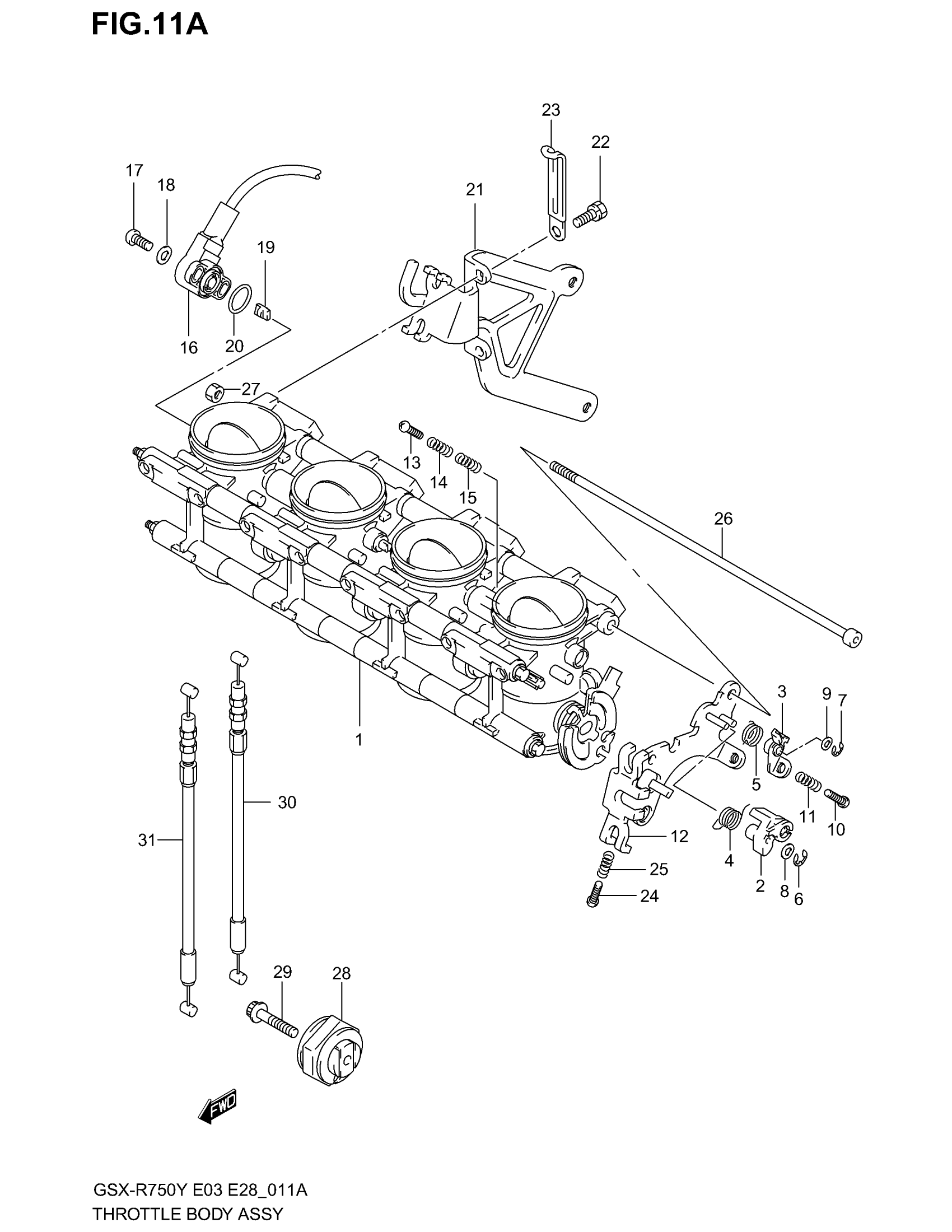

Suzuki GSX-R750 (2003) THROTTLE BODY (MODEL K1) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | E3,E28 This part replaces 13460-35F00.

13460-35F01

Unavailable

1

BODY SET, THROTTLE | E33

13460-35F10

Unavailable

2

LINK LEVER

13413-35F00

Unavailable

3

LINK LEVER

13414-35F00

Unavailable

4

SPRING

13426-35F00

Unavailable

5

SPRING

13426-35F10

Unavailable

6

E CLIP

13424-35F00

Unavailable

7

E CLIP

13424-35F10

$3.78

8

WASHER

13427-35F00

Unavailable

9

WASHER

13427-35F10

Unavailable

10

SCREW, STOP

13423-35F00

$8.52

11

SPRING

13271-26E10

Unavailable

12

PLATE, STAY

13565-35F00

Unavailable

13

SCREW, STOP

13423-35F00

$8.52

14

SPRING

13543-24F00

Unavailable

15

SPRING

13268-03F50

Unavailable

16

SENSOR ASSY, THROTTLE

13580-24F00

Unavailable

17

SCREW

13613-24F00

$3.08

18

WASHER This part replaces 13615-24F10.

13572-03F00

Unavailable

19

COLLAR

13582-24F00

$9.72

20

O RING

13575-24F00

$5.00

21

PLATE, STAY

13627-35F00

Unavailable

22

BOLT

13611-35F00

Unavailable

23

BINDER

13432-24F00

Unavailable

24

SCREW, STOP

13267-35F00

$31.22

25

SPRING

13268-35F00

$4.57

26

BOLT

13611-24F00

$23.78

27

NUT

13607-24F00

$3.22

28

PULLEY, CONTROLLER

11269-20A04

Unavailable

29

BOLT This part replaces 07120-05203.

07120-0520B

Unavailable

30

CABLE, THROTTLE ACTUATOR OPEN

13641-35F00

Unavailable

31

CABLE, THROTTLE ACTUATOR CLOSE

13642-35F00

Unavailable
