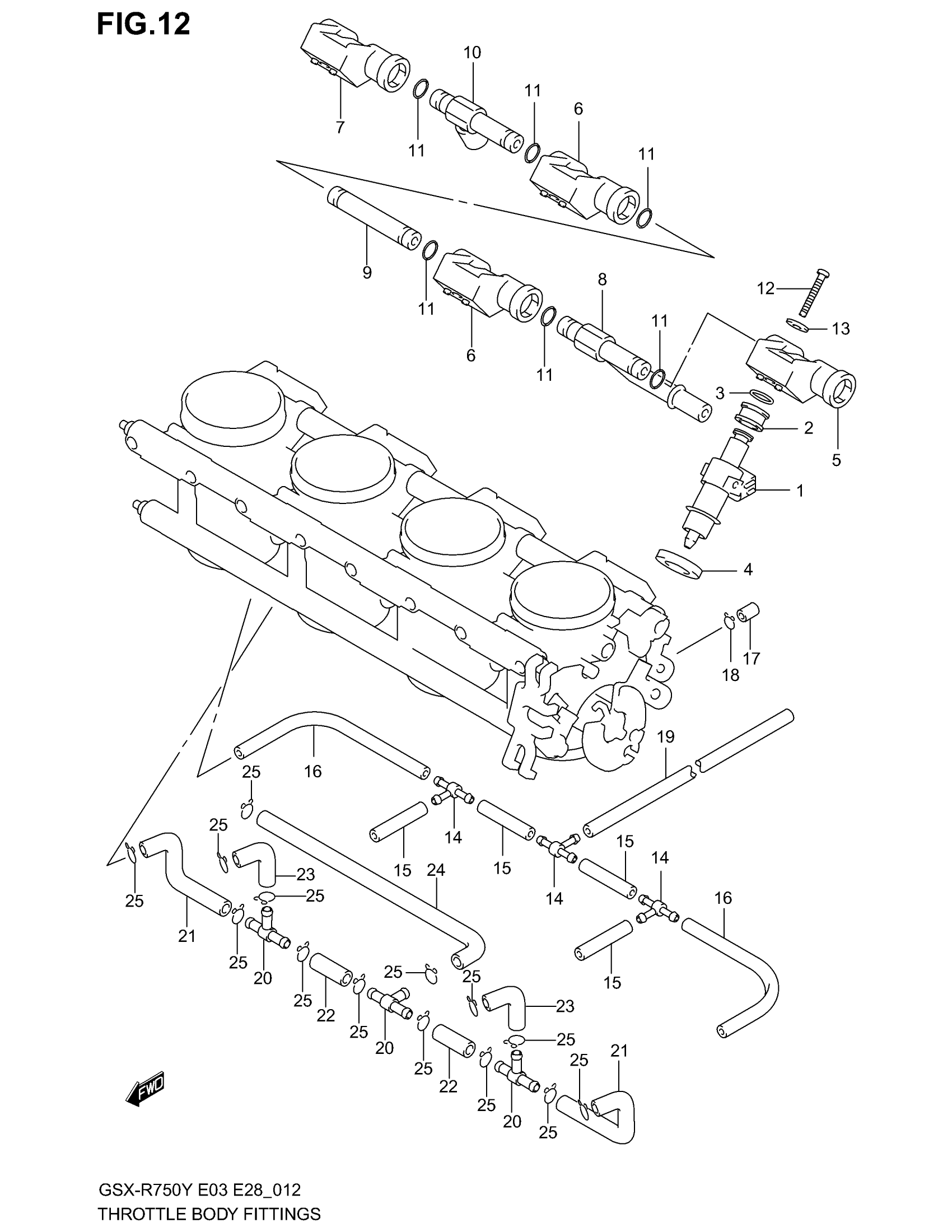

Suzuki GSX-R750 (2003) THROTTLE BODY HOSE/JOINT (MODEL Y) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-24F00

$271.91

2

RING, CUSHION

15722-24F00

$11.82

3

.O-RING

15721-24F00

$9.09

4

RING, SEAL

13672-24F00

$13.75

5

JOINT, LH This part replaces 13471-24F00.

13471-35F00

Unavailable

6

JOINT, ML/MR This part replaces 13471-24F10.

13471-35F10

$35.45

7

JOINT, RH This part replaces 13471-24F20.

13471-35F20

Unavailable

8

JOINT This part replaces 13473-35F00.

13473-35F01

Unavailable

9

JOINT

13474-24F00

Unavailable

10

JOINT

13474-35F00

Unavailable

11

.O-RING

15721-24F00

$9.09

12

SCREW

13605-24F00

Unavailable

13

WASHER (5.5X16X1.2) This part replaces 13615-24F00.

09160-05043

$2.30

14

3 WAY

13471-24F30

$16.48

15

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

16

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

17

CAP, RUBBER

13508-24F00

$10.07

18

CLIP

13692-24F10

Unavailable

19

HOSE (3X7X170)

13697-35F00

Unavailable

20

3 WAY | E33

13685-36E50

Unavailable

21

HOSE (5.3X10.5,L:80+25) | E33

13698-24F00

Unavailable

22

HOSE (5.3X10.5,L:35) | E33

13698-24F10

Unavailable

23

HOSE (5.3X10.5,L:30+30) | E33

13698-24F20

Unavailable

24

HOSE (5.3X10.5,L:200+30) | E33

13698-35F00

Unavailable

25

CLIP | E33

13693-24F00

$3.22
