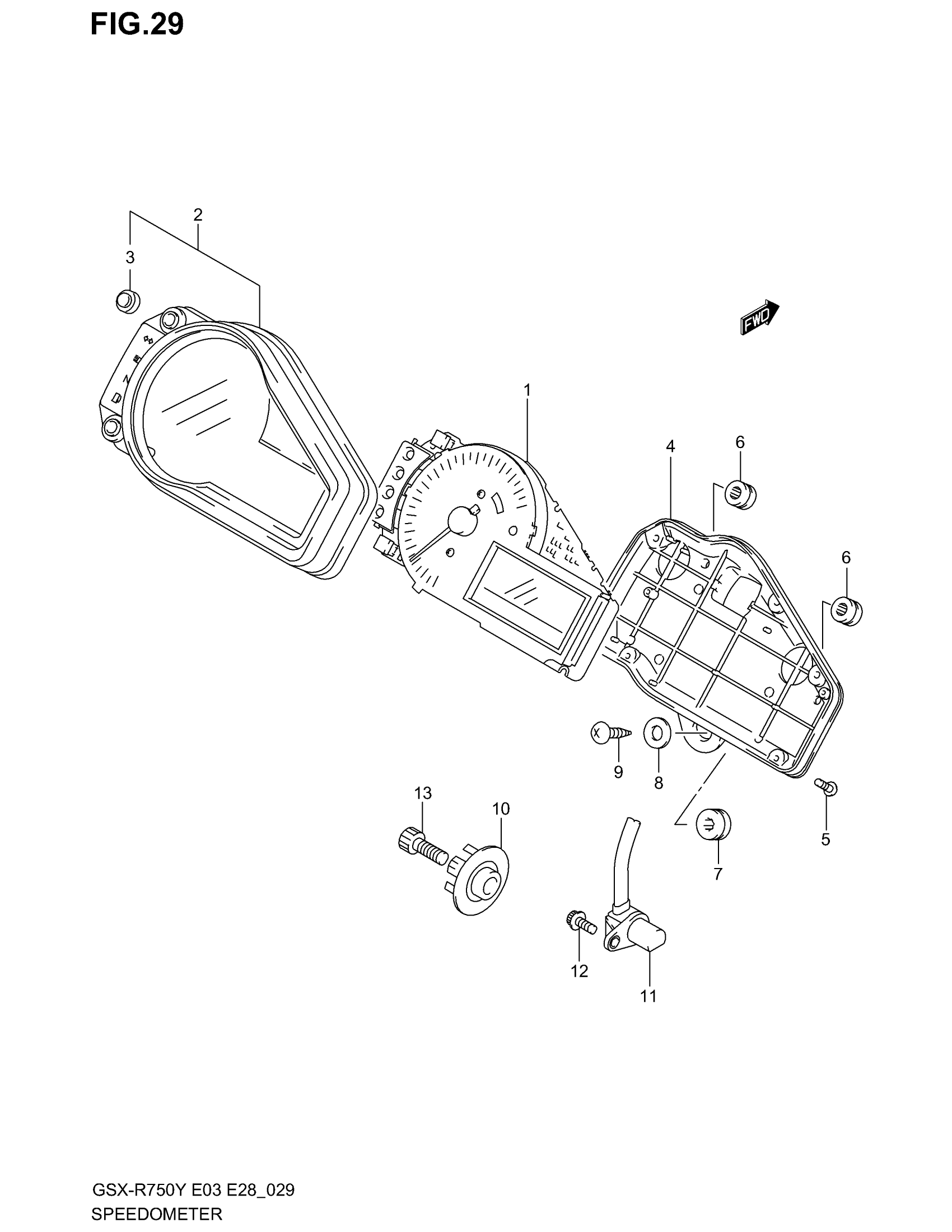

Suzuki GSX-R750 (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEED & TACHOMETER ASSY (MILE) | MODEL Y

34120-35F20

Unavailable

1

SPEED & TACHOMETER ASSY (MILE) | MODEL K1

34120-35F50

Unavailable

1

SPEED & TACHOMETER ASSY (MILE) | MODEL K2/K3

34120-35F80

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | MODEL Y E28

34120-35F00

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | MODEL K1 E28

34120-35F30

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | MODEL K2/K3 E28

34120-35F60

Unavailable

2

CASE, UPPER | Includes Item(s) 3

34150-35F00

$119.18

3

SWITCH, GUM

34124-24F00

$8.83

4

CASE, LOWER

34111-35F00

Unavailable

5

SCREW

34383-35F00

$3.23

6

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

7

CUSHION, METER NO.2

34955-33E00

$3.56

8

WASHER, METER (5.5X16X1.2)

09160-05037

$1.49

9

SCREW This part replaces 03512-05163.

03511-0516A

$1.86

10

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

11

SENSOR, SPEED

34990-35F00

$127.72

12

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

13

BOLT This part replaces 07130-08253.

07130-0825B

$3.37
