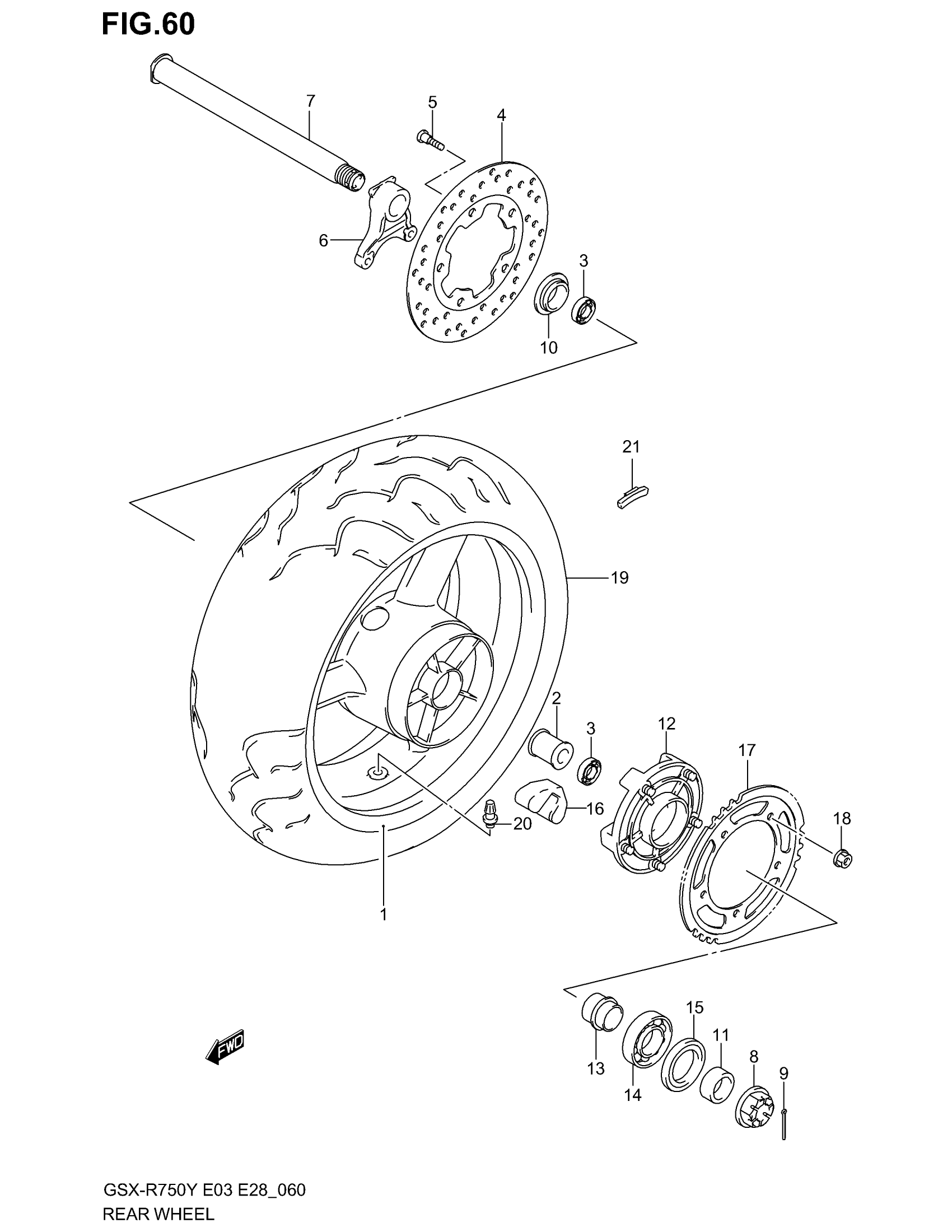

Suzuki GSX-R750 (2003) REAR WHEEL Diagram

NO DESCRIPTION AVAILABLE | MODEL Y FOR CY8 This part replaces 64111-35F00-Y6G.

64111-35F01-Y6G

Unavailable

WHEEL,RR,17M/CX | MODEL Y FOR L99 MODEL K1 FOR L99 MODEL K2 FOR L99 MODEL K3 FOR LR5 This part replaces 64111-35F00-28W.

64111-35F01-28W

Unavailable

WHEEL, REAR (17M/CXMT5.50) (BLACK) | MODEL K1 FOR BP9,FN9 MODEL K2 FOR BP9,FN9 MODEL K3 FOR CT5,KU2 This part replaces 64111-35F00-019.

64111-35F01-019

$1,306.10

SPACER,RR HUB BEARING This part replaces 64731-35F00.

64731-35F10

$51.42

BEARING This part replaces 09262-28043.

09262-28063

$21.63

DISC, REAR BRAKE | MODEL Y/K1

69211-33E00

Unavailable

DISC, REAR BRAKE | MODEL K2/K3

69211-33E10

$324.10

BOLT (8X33) | MODEL Y This part replaces 09106-08125.

09106-08148

$4.80

BOLT | MODEL K1/K2/K3

09106-08148

$4.80

BRACKET, REAR CALIPER

69721-35F00

Unavailable

AXLE, REAR

64711-33E10

$156.75

NUT

09141-25001

$23.94

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

SPACER, AXLE RH

64740-35F00

$29.61

SPACER, AXLE LH

64751-35F00

$22.92

DRUM, RR SPROCKET | MODEL Y/K1 This part replaces 64610-35F00.

64610-35F40

$311.15

DRUM, RR SPROCKET | MODEL K2/K3 This part replaces 64610-35F10.

64610-35F40

$311.15

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

SEAL (39X65X7)

09285-39001

$10.62

ABSORBER, HUB SHOCK

64651-35F00

$11.77

SPROCKET, REAR (NT:42) | MODEL Y/K1 This part replaces 64511-35F00.

64511-35F10

$89.72

SPROCKET, REAR (NT:42) | MODEL K2/K3

64511-35F10

$89.72

NUT

08319-31107

$2.73

TIRE, REAR,180/55 ZR17 (73W) (DUNLOP)

65110-35F10

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$5.82

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$5.50

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$6.42
