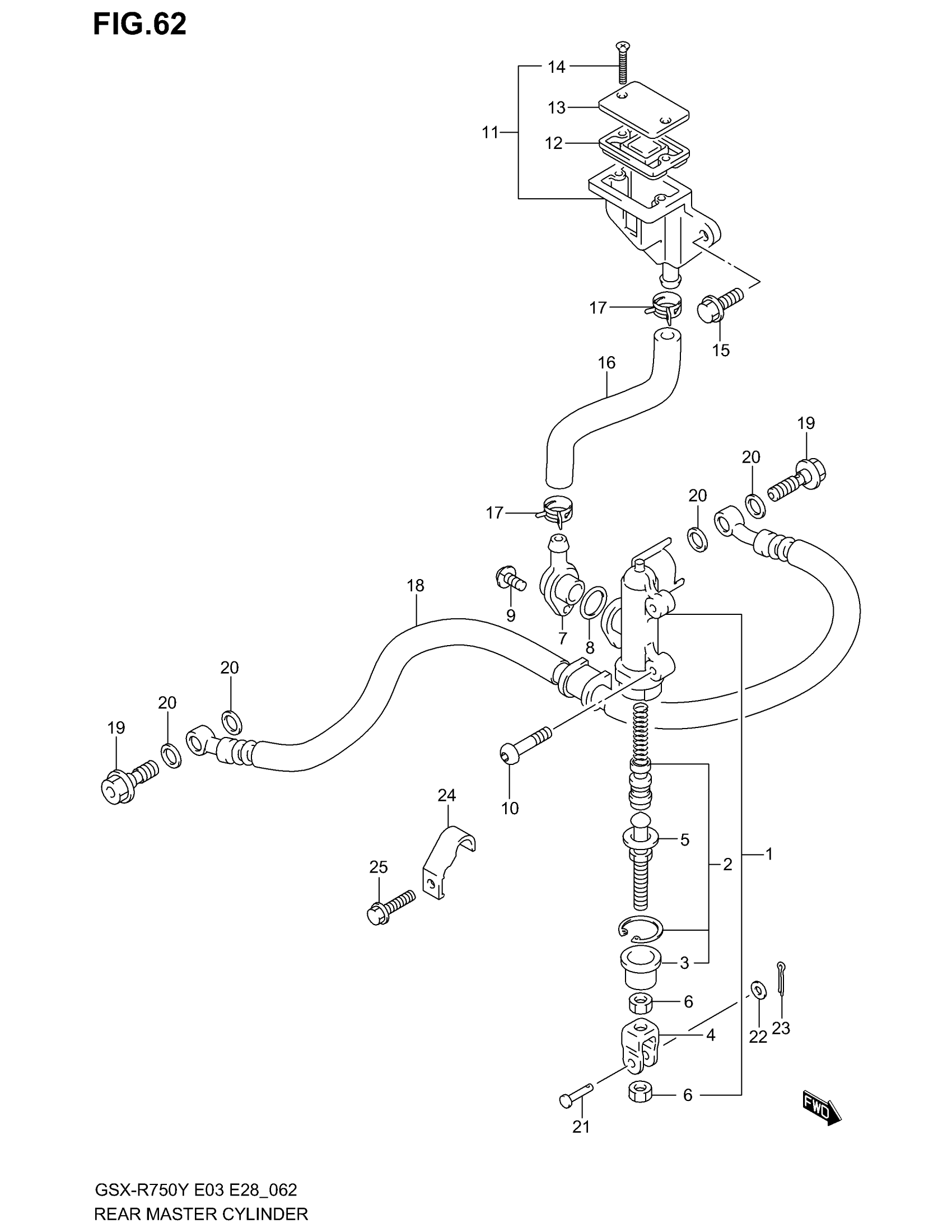

Suzuki GSX-R750 (2003) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-33C00

$246.68

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

BOLT (6X20)

09139-06028

$3.70

11

TANK ASSY,RR RESERVOIR | Includes Item(s) 12 - 14

69740-01D02

$70.49

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT

09103-06222

$2.26

16

HOSE, RESERVOIR TANK

69731-35F00

$18.50

17

CLAMP

09401-13417

$2.26

18

HOSE, REAR BRAKE | MODEL Y/K1

69480-35F00

Unavailable

18

HOSE,RR BRAKE | MODEL K2/K3 This part replaces 69480-40F00.

69480-40F01

Unavailable

19

UNION This part replaces 09360-10041.

09360-10061

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

22

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

24

CLAMP, RR BRAKE HOSE | MODEL K2/K3

69268-40F00

Unavailable

25

BOLT | MODEL K2/K3

09103-06223

$2.47
