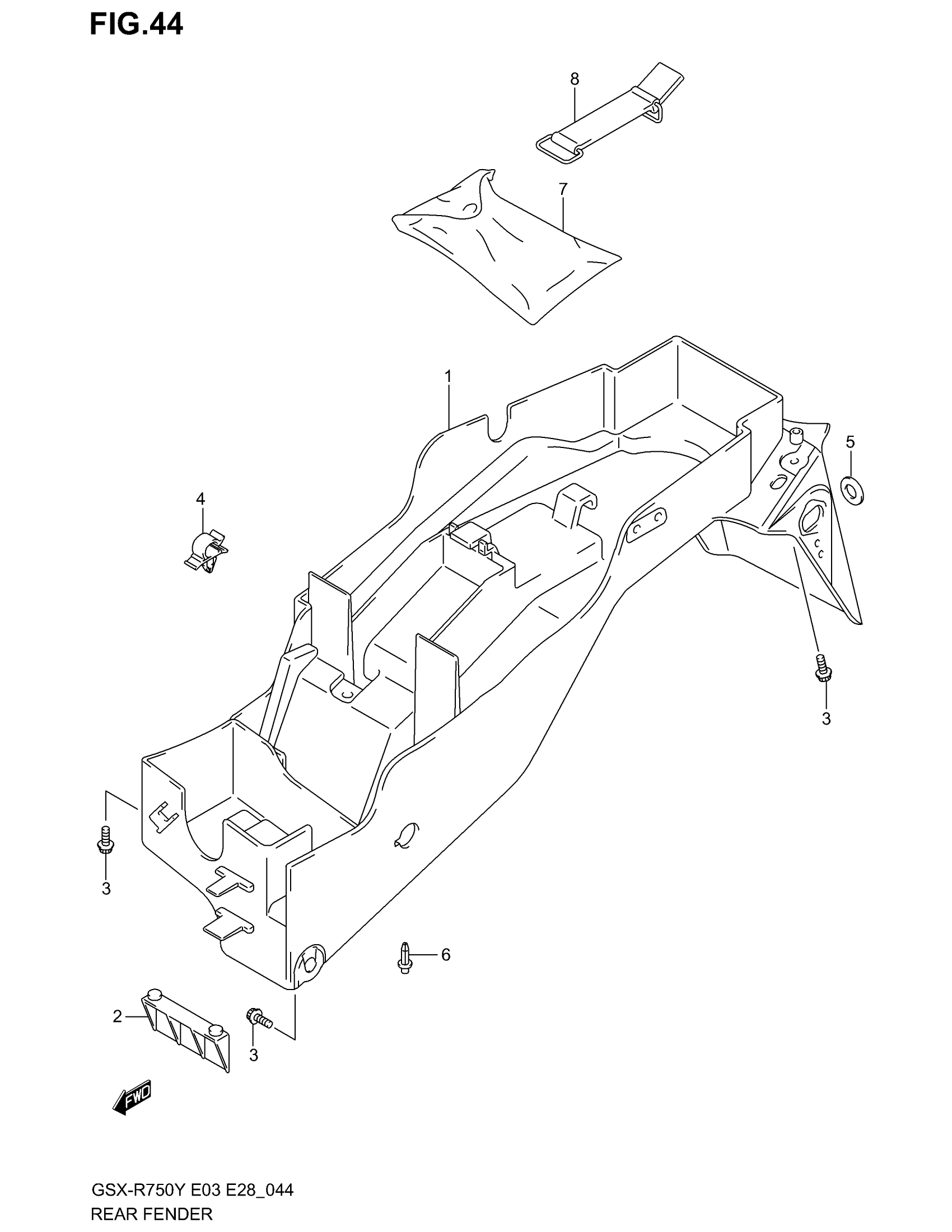

Suzuki GSX-R750 (2003) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR | MODEL Y This part replaces 63111-35F11.

63111-35F40

Unavailable

1

FENDER, REAR | MODEL K1

63111-35F40

Unavailable

1

FENDER, REAR | MODEL K2/K3

63111-40FB0

Unavailable

2

MUD GUARD, FRONT | MODEL Y/K1

63411-35F00

Unavailable

3

BOLT (6X18) | MODEL Y/K1 This part replaces 63161-35F00.

09111-06081

$4.09

3

BOLT | MODEL K2/K3

09111-06081

$4.09

4

CLAMP This part replaces 09403-05313.

18214-75F00

Unavailable

5

WASHER (6.5X18X1.0)

09160-06028

$1.49

6

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

7

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

8

BAND,TOOL | MODEL Y/K1 This part replaces 47435-02F01.

47435-02F02

$8.33

8

BAND, TOOL | MODEL K2/K3

09280-67005

$7.15
